V105-1-1 ENGINE ASSEMBLIES T4-81kW-12V Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
13	ABI ROCKER SHAFT ASSY 4.8 320/20196 320/03931	1	AVAILABLE TO ORDER	$590.86	Quantity
30	GA OIL PUMP - CR (BR3) 320/20202	1	AVAILABLE TO ORDER	$102.38	Quantity
33	COOLER COVER ASSY T4 - 8 PLT 320/20868 320/A4268	1	AVAILABLE TO ORDER	$445.66	Quantity
80	GA IDLER GEAR 320/20059	1	AVAILABLE TO ORDER	$417.67	Quantity

Showing 1 to 4 of 4 parts

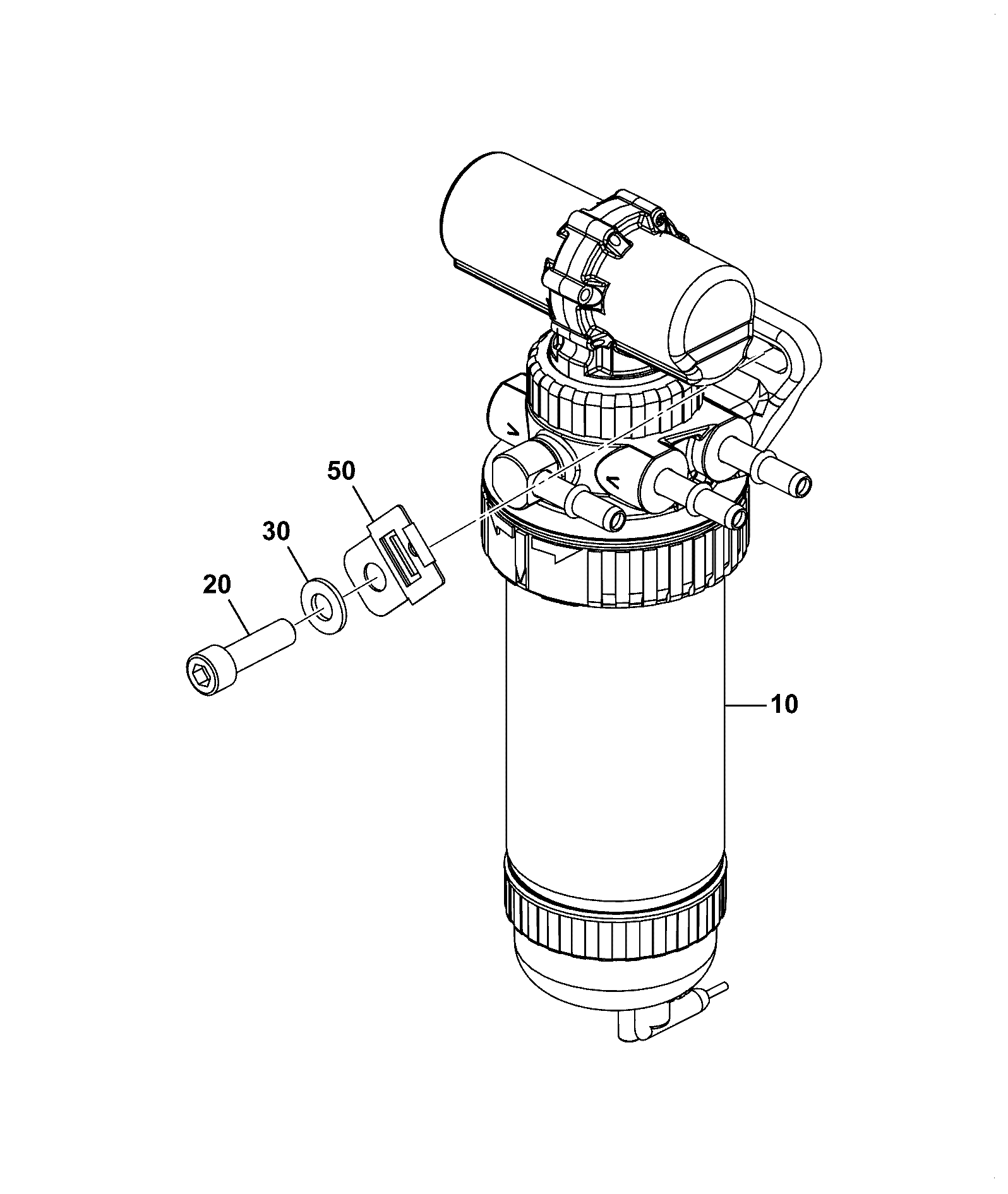

DIAG-L820-20-1-401570 L820-20-1 FUEL FILTER SEDIMENTOR
View Diagram
DIAG-V105-315-1-401570 V105-315-1 ENGINE ASSEMBLIES T4 81kW 12V
View Diagram

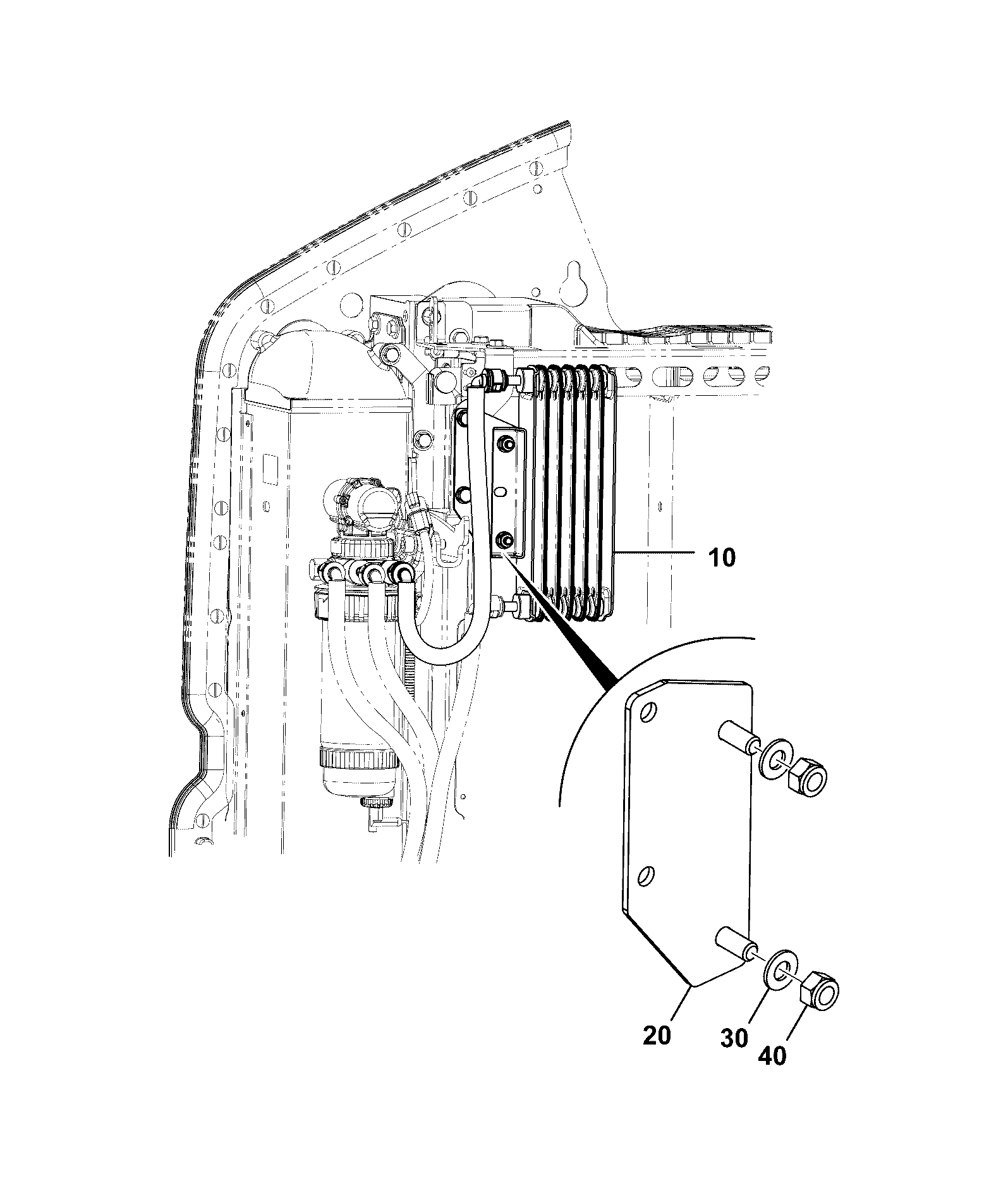

DIAG-L800-125-1-401570 L800-125-1 FUEL SYSTEM INSTALLATION ASSEMBLIES FUEL COOLER, 93/108KW
