V100-10-1 ENGINE ASSEMBLIES COMPLETE PERFORMANCE PARTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Engine Piston Set 400/06687	1	AVAILABLE TO ORDER	$124.62	Quantity
2	Circlip 02/910537	1	AVAILABLE TO ORDER	$8.70	Quantity
3	Pin gudgeon 02/912063	1	AVAILABLE TO ORDER	$97.79	Quantity
9	BIG END BEARING 02/910531	1	AVAILABLE TO ORDER	$42.53	Quantity
12	cap hd screw con rod 400/00825	1	AVAILABLE TO ORDER	$76.89	Quantity

Showing 1 to 5 of 5 parts

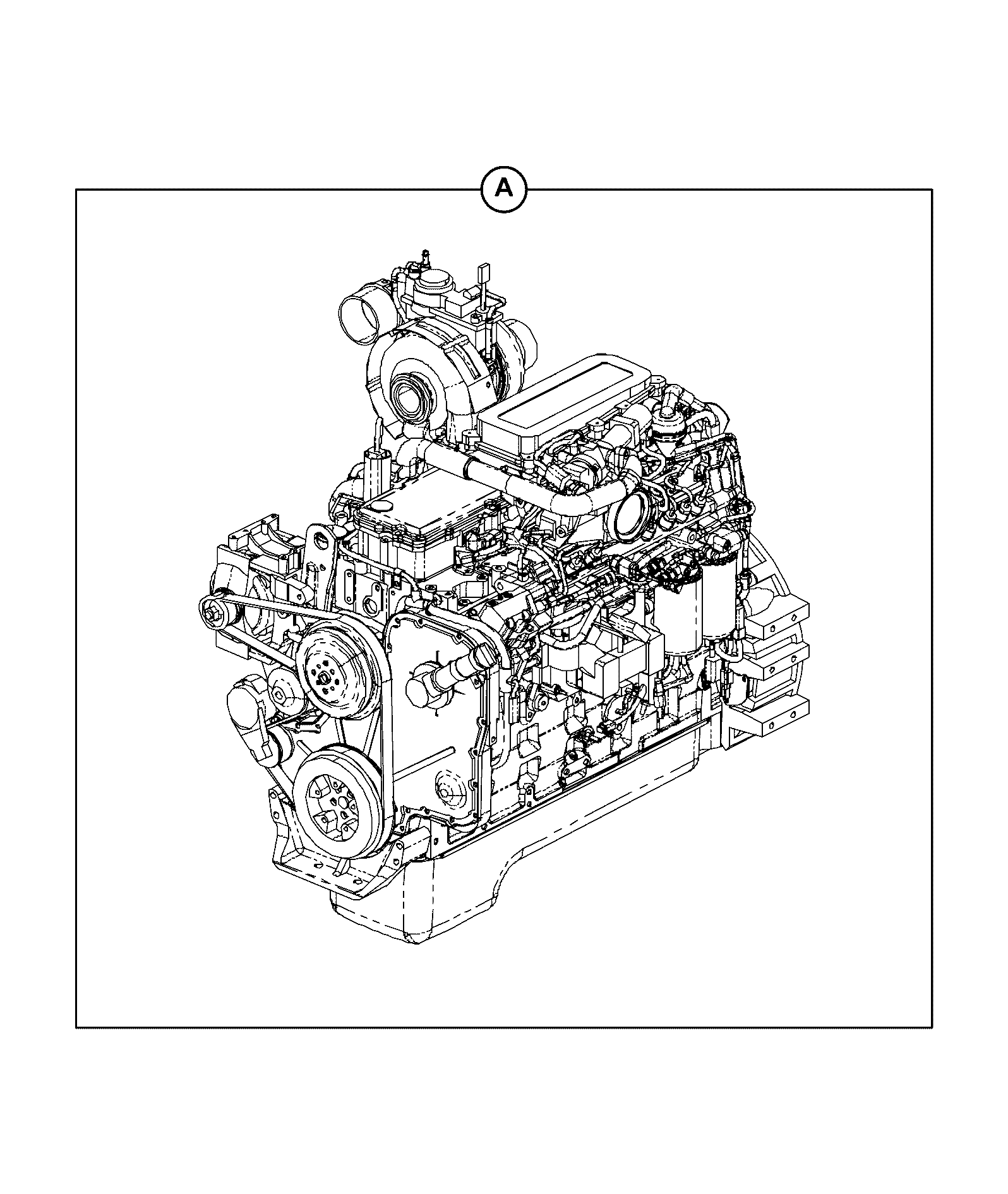

DIAG-V100-15-1-404973 V100-15-1 ENGINE ASSEMBLIES COMPLETE ASSEMBLY
View Diagram

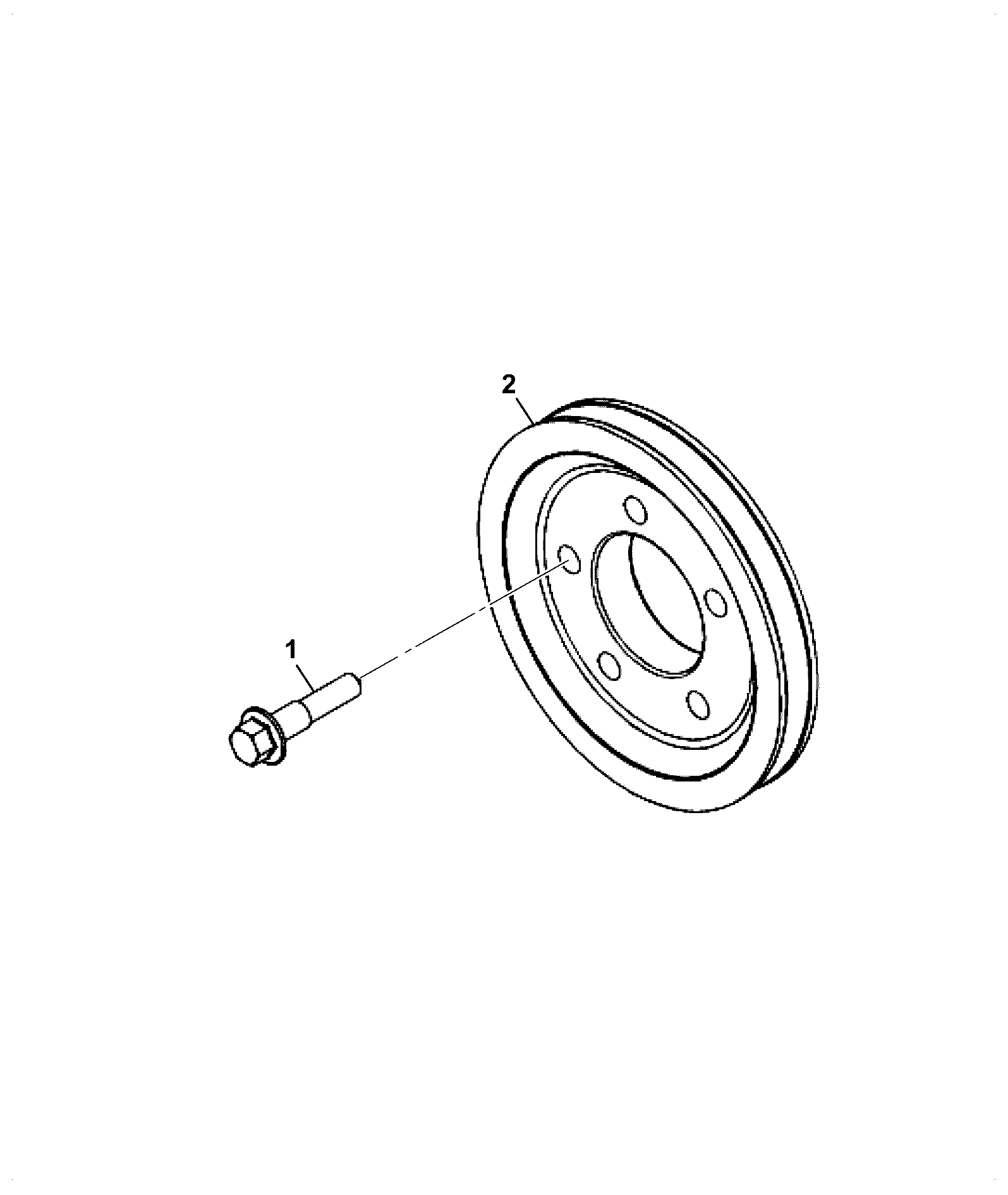

DIAG-V130-5-1-404973 V130-5-1 CRANKSHAFT CRANKSHAFT PULLY ASSMEBLY
View Diagram
DIAG-V180-20-1-404973 V180-20-1 FLYWHEEL FLYWHEEL HOUSING
View Diagram
