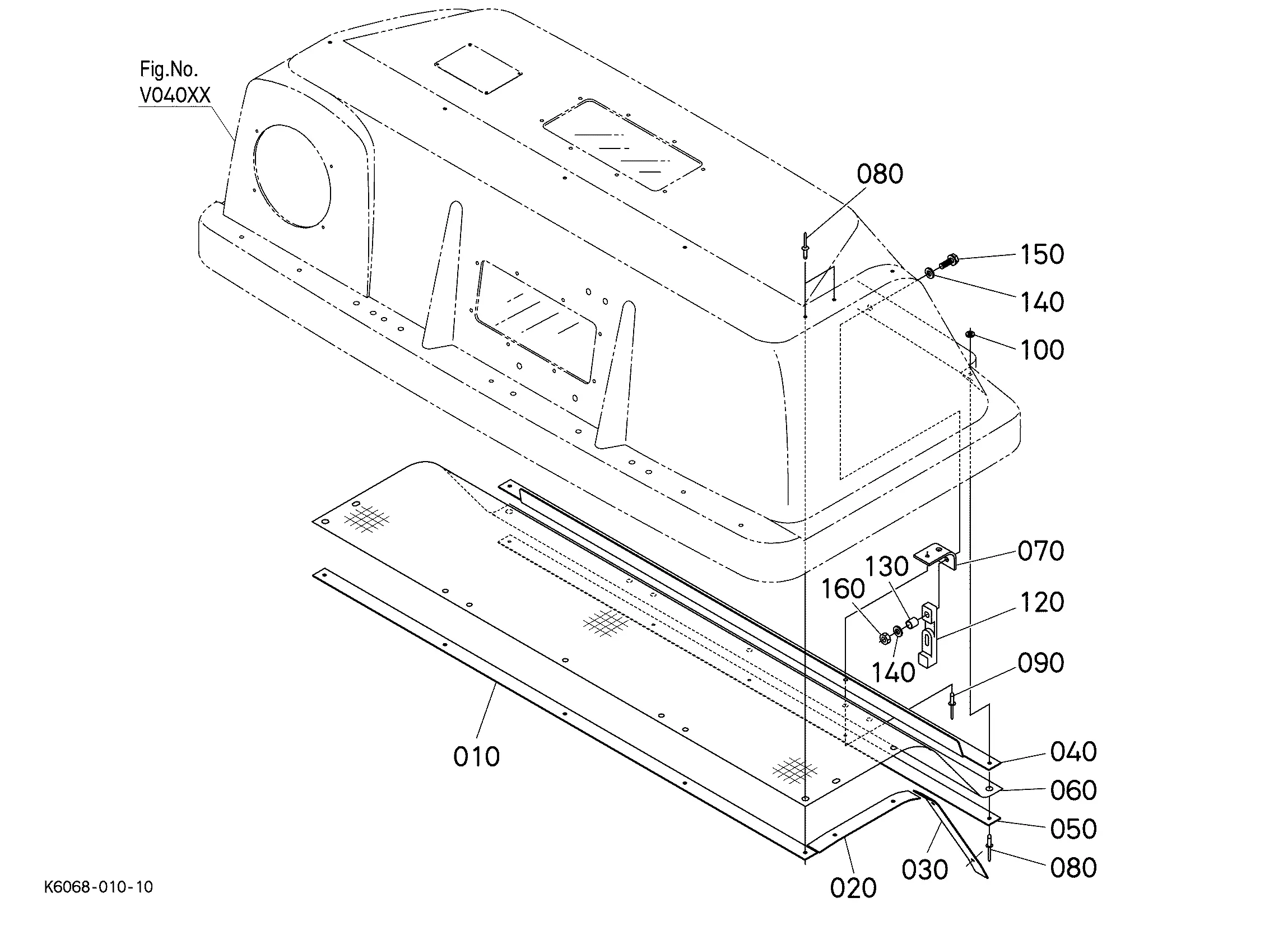

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CONTAINER, LID K6047-52003 K6047-52004 | 1 | $755.73 | |||
| 020 | HINGE(COVER,LH) K6067-52050 K6067-52052 | 1 | $31.07 | |||
| 030 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 040 | Nut Fastener 15021-05280 02552-50080 | 1 | $0.60 | |||
| 050 | PLATE(LID) K6067-52070 K6067-52072 | 1 | $62.25 | |||
| 055 | Bolt Fastener 01150-50825 01153-50825 | 1 | $1.77 | |||
| 067 | Plain Flat Washer 04015-50100 | 1 | $0.60 | |||
| 070 | Rue Ring Cotter K1211-91130 K1211-91132 | 1 | $0.60 | |||
| 080 | PLATE, FRONT K6045-52100 K6045-52103 | 1 | $234.01 | |||
| 100 | PLATE, LABEL K6065-41740 | 1 | $9.75 | |||
| 110 | RIVET, BLIND BLA 32751-34790 K6072-63910 | 1 | $1.93 | |||
| 120 | WASHER,BACKUP-G2 K6072-63920 | 1 | $0.90 | |||
| 130 | WINDOW K6045-52500 | 1 | $70.14 | |||
| 140 | 3/16 in Pop Rivet K6045-52480 | 1 | $1.48 | |||
| 150 | PLATE, WINDOW K6045-52530 | 1 | $12.78 | |||
| 160 | CHUTE, INLET 2 K6045-55220 K6045-55225 | 1 | $250.91 | |||
| 170 | BAND K6045-55250 | 1 | $18.19 | |||
| 180 | PLATE, INLET * K6045-52704 | 1 | $37.83 | |||
| 190 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 200 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 210 | BOLT, FLANGE 01754-50845 | 1 | $5.89 | |||
| 240 | RIVET, PUSH 9mm K6047-84560 | 1 | $1.25 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-V04003-341060 V04003 CONTAINER LID [ZG222SA/ZG222A/ZG227A/ZG227LA]
View Diagram -
DIAG-V04001-341060 V04001 CONTAINER LID [ZD221]
View Diagram -
DIAG-V04500-341060 V04500 CONTAINER NET
View Diagram
