Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CONTAINER, LID K6047-52003 K6047-52004 | 1 | $755.73 | |||
| 020 | HINGE, COVER K6045-52050 K6045-52054 | 1 | $33.89 | |||
| 040 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 050 | Nut Fastener 15021-05280 02552-50080 | 1 | $0.60 | |||
| 060 | Plain Flat Washer 04015-50100 | 1 | $0.60 | |||
| 070 | Rue Ring Cotter K1211-91130 K1211-91132 | 1 | $0.60 | |||
| 080 | PLATE, FRONT CON K6047-52100 | 1 | $260.67 | |||
| 090 | PLATE, NET FRONT K6045-52410 | 1 | $13.75 | |||
| 100 | EX PLATE,NET SID K6045-52420 K6045-52424 Discontinued | 1 | $11.95 | |||
| 110 | PLATE K6045-52440 | 1 | $17.20 | |||
| 120 | PLATE, NET REAR K6045-52450 | 1 | $26.07 | |||
| 130 | PLATE, NET REAR K6045-52430 | 1 | $13.24 | |||
| 132 | CUSHION, FRONT K6045-52200 | 1 | $18.24 | |||
| 135 | CUSHION, SIDE K6045-52210 | 1 | $7.81 | |||
| 140 | NET, PLASTIC K6045-52402 | 1 | $67.18 | |||
| 150 | PLATE, REAR K6045-52460 | 1 | $7.29 | |||
| 160 | 3/16 in Pop Rivet K6045-52480 | 1 | $1.48 | |||
| 180 | WASHER, POP RIVE K6045-52490 | 1 | $6.50 | |||
| 190 | PLATE, LABEL K6065-41740 | 1 | $9.75 | |||
| 200 | RIVET, BLIND BLA 32751-34790 K6072-63910 | 1 | $1.93 | |||
| 210 | WASHER,BACKUP-G2 K6072-63920 | 1 | $0.90 | |||
| 220 | LABEL(KUBOTA,LID) K6045-41750 K6165-41750 | 1 | $6.19 | |||
| 230 | HOOK, BAND K6045-52510 | 1 | $8.67 | |||
| 235 | SLEEVE K2561-85040 K2561-85042 | 1 | $3.66 | |||
| 240 | Plain Washer (Flat Washer) 04015-50060 | 1 | $0.60 | |||
| 250 | BOLT, FLANGE * 01754-50630 | 1 | $3.53 | |||
| 260 | Nut Fastener 02013-50060 02014-50060 | 1 | $0.60 | |||
| 270 | WINDOW K6045-52500 | 1 | $70.14 | |||
| 290 | PLATE, WINDOW K6045-52530 | 1 | $12.78 | |||
| 300 | CHUTE, INLET 2 K6045-55220 K6045-55225 | 1 | $250.91 | |||
| 310 | BAND K6045-55250 | 1 | $18.19 | |||
| 320 | PLATE, INLET * K6045-52704 | 1 | $37.83 | |||
| 330 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 340 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 350 | BOLT, FLANGE 01754-50845 | 1 | $5.89 | |||
| 380 | HINGE, COVER LH K6047-52060 K6047-52062 | 1 | $274.45 | |||
| 390 | Bolt Fastener 01150-50825 01153-50825 | 1 | $1.77 | |||
| 420 | RIVET, PUSH 9mm K6047-84560 | 1 | $1.25 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-

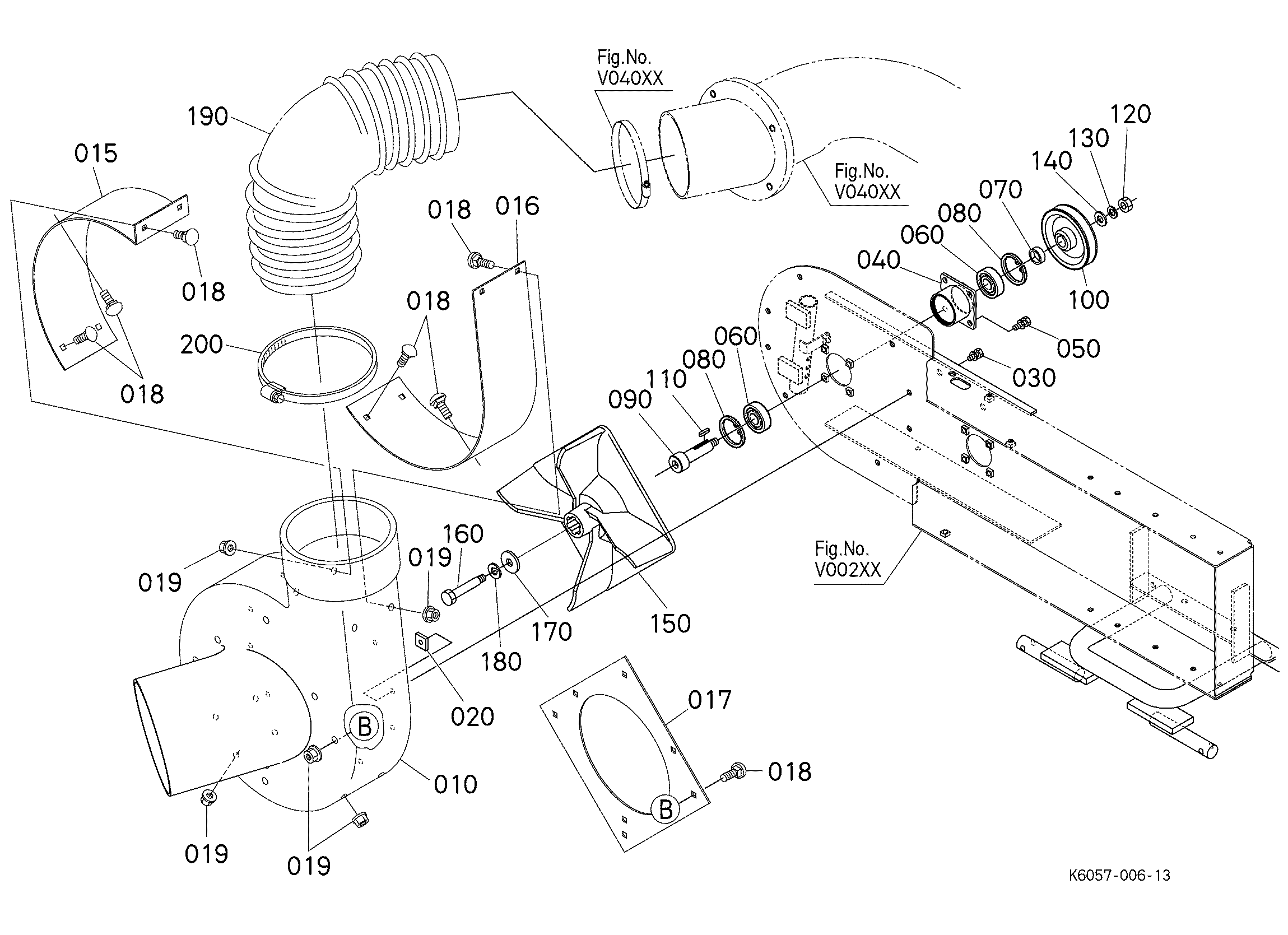

DIAG-V03000-341188 V03000 BLOWER CASE
View Diagram -
DIAG-V04800-341188 V04800 CONTAINER CUSHION AND LABEL
View Diagram -
DIAG-V02500-341188 V02500 ARM
View Diagram
