Kubota BX1870 U96300 REAR CONTROL VALVE KIT (VALVE) (W/G No. BX7376) [OPTION] Parts Diagram

Exploded-view parts diagram "U96300 REAR CONTROL VALVE KIT (VALVE) (W/G No. BX7376) [OPTION]" for the Kubota BX1870. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 ASSY VALVE, AUX. YW305-00100 1 AVAILABLE TO ORDER $1,669.65
020 CONNECTOR, DRAIN K2563-37210 1 AVAILABLE TO ORDER $55.89
030 O RING K2563-37220 1 AVAILABLE TO ORDER $2.86
040 O-Ring Seal 04811-00120 04816-00120 1 17 IN STOCK $1.93
050 Bolt (Fastener) 01120-00830 01123-50830 1 12 IN STOCK $1.37
060 CONNECTOR, 30-9/ K2583-36660 1 AVAILABLE TO ORDER $88.11
070 CONNECTOR, 9/16- K2561-36620 1 3 IN STOCK $3.76
080 ELBOW K2561-41590 1 2 IN STOCK $9.23
090 CONNECTOR, 45-9/ K2581-36650 1 AVAILABLE TO ORDER $46.84
100 CONNECTOR K2561-36630 1 3 IN STOCK $7.84
110 PIPE(DELIVERY AUX.) K2583-37510 K2583-37550 1 AVAILABLE TO ORDER $31.38
120 PIPE, RETURN AUX K2583-37520 K2583-37532 1 AVAILABLE TO ORDER $30.46

Showing 1 to 12 of 12 parts

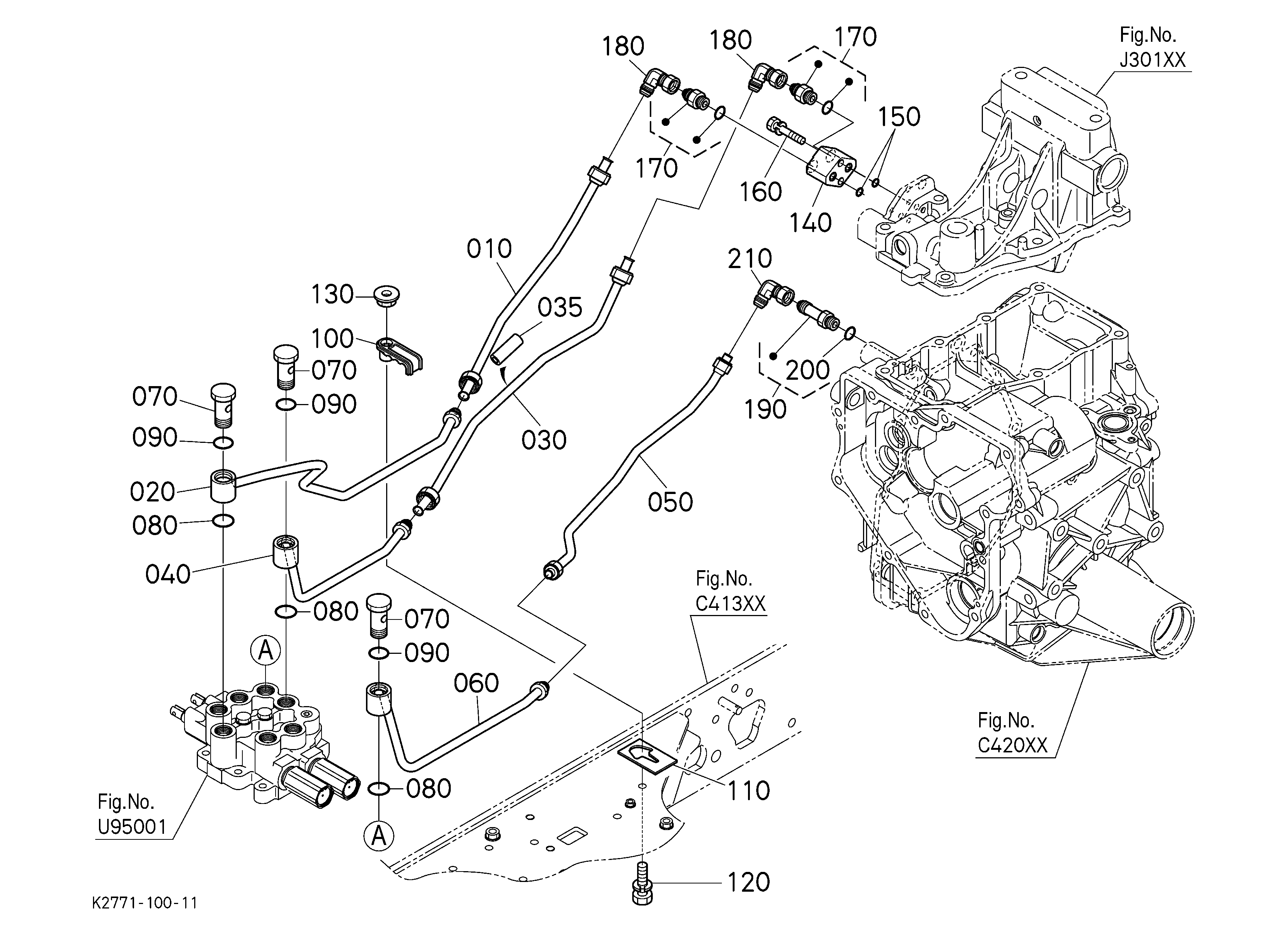

  • DIAG-U95007-90309 U95007 FRONT CONTROL VALVE KIT (OIL LINE) 2 [OPTION]

    View Diagram

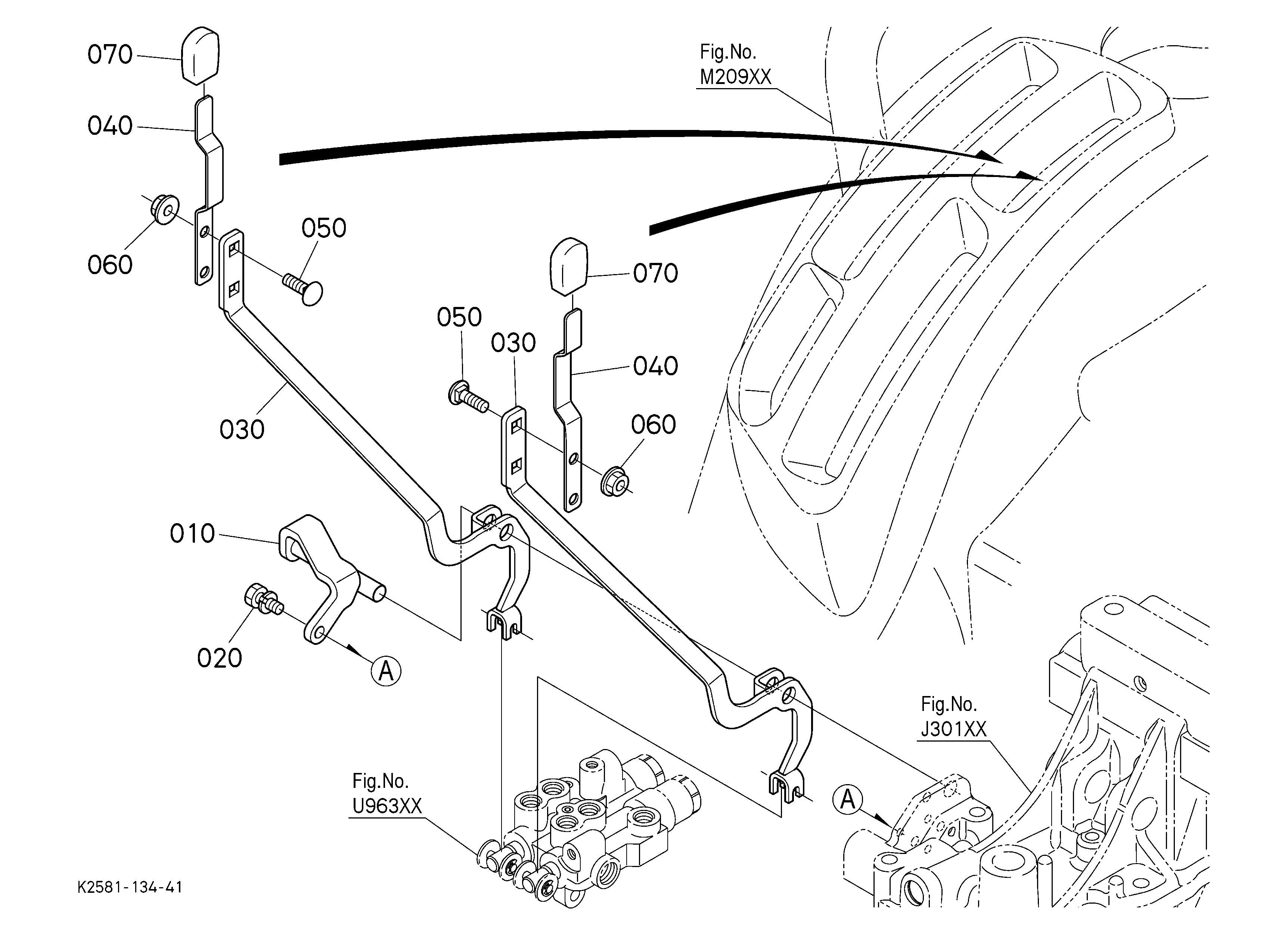

  • DIAG-U96400-90309 U96400 REAR CONTROL VALVE KIT (LEVER) (W/G No. BX7376) [OPTION]

    View Diagram

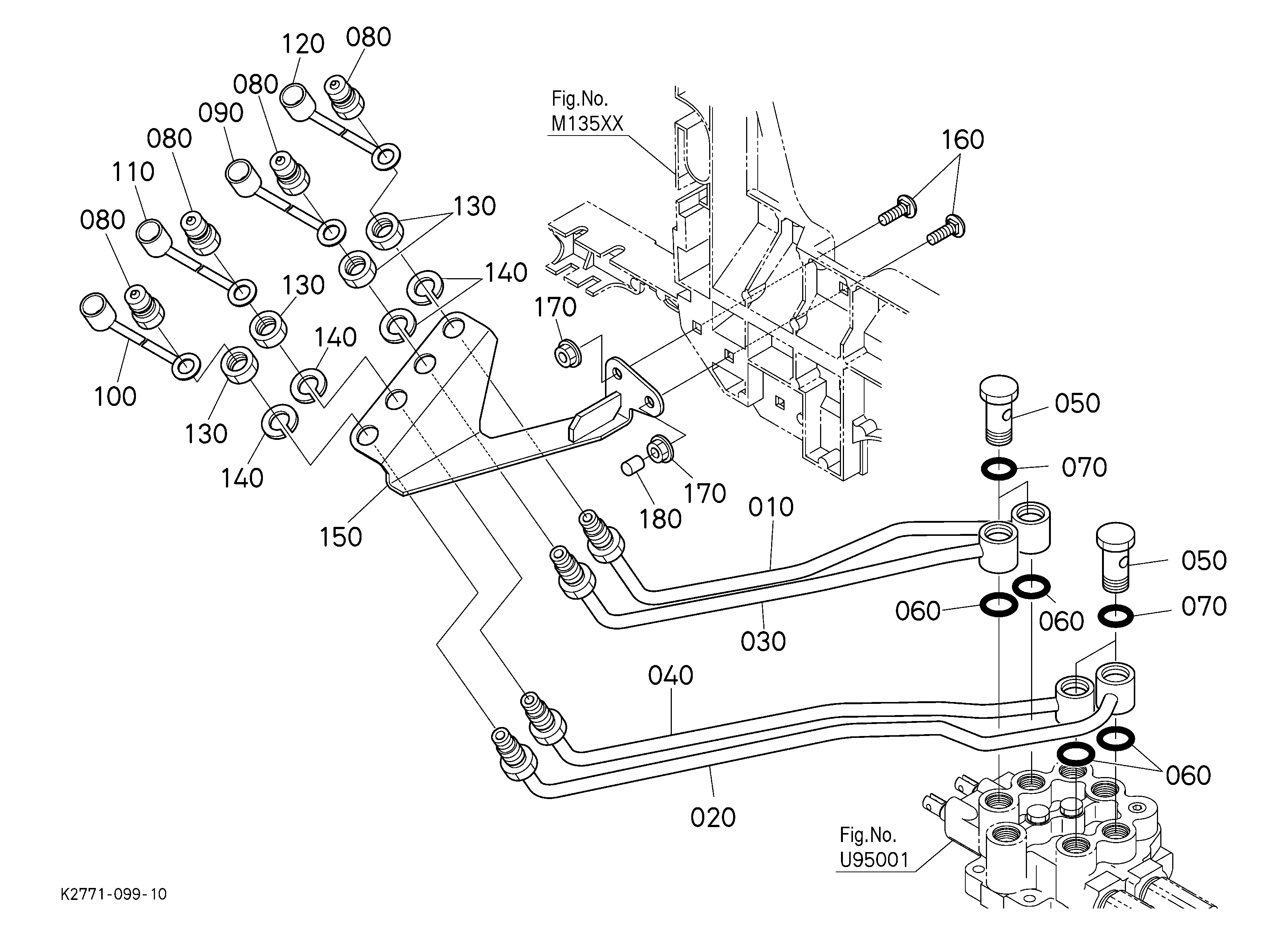

  • DIAG-U95006-90309 U95006 FRONT CONTROL VALVE KIT (OIL LINE) 1 [OPTION]
