Scroll to zoom Click a part # to view details

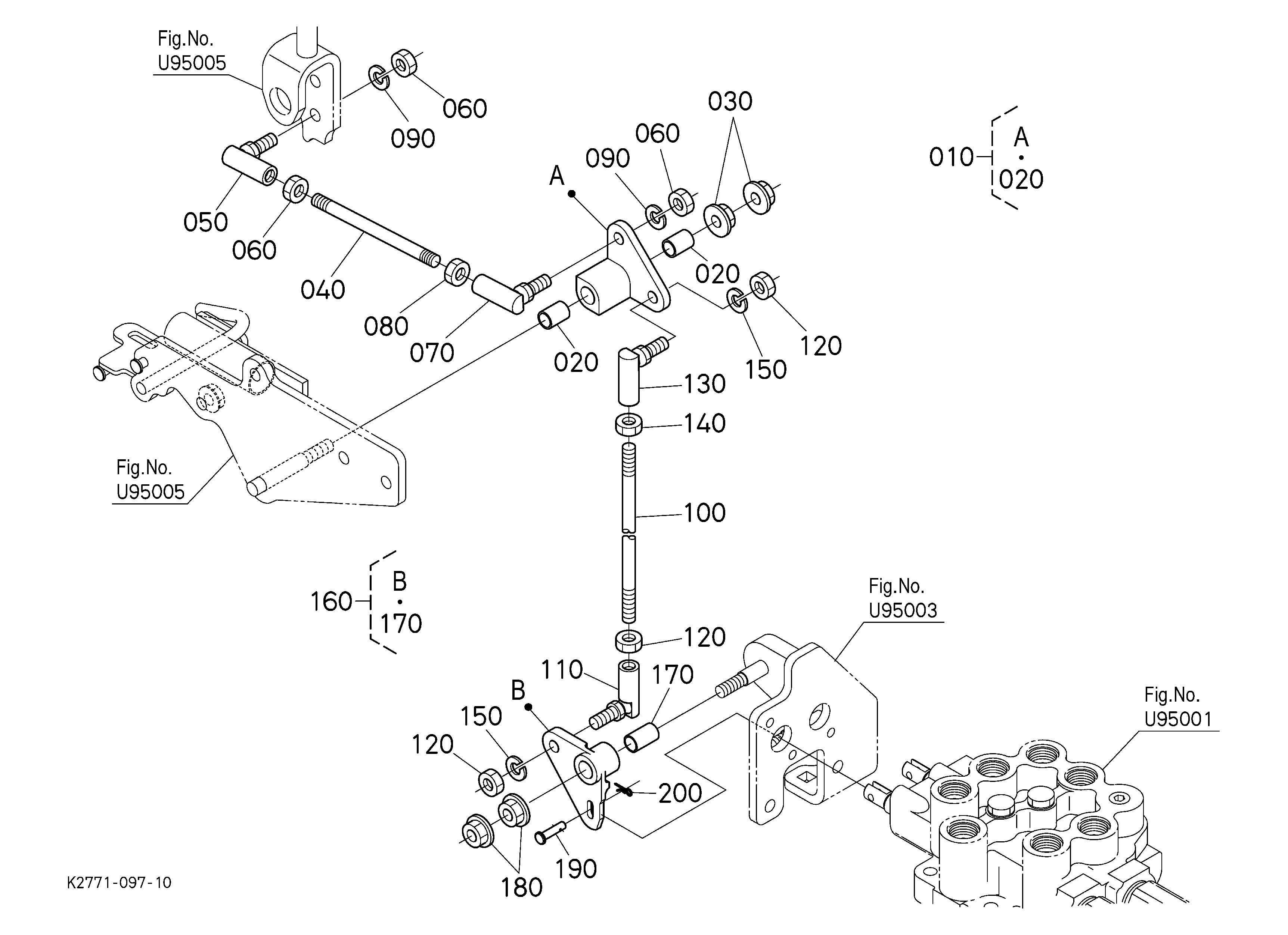

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | LEVER,CONTROL 7J612-62213 7J612-62215 | 1 | $45.92 | |||
| 020 | GRIP, LEVER (S/N 7J612-62240 7J612-62242 | 1 | $5.61 | |||
| 030 | BLOCK, LEVER 7J612-62130 | 1 | $97.93 | |||
| 040 | Bolt Fastener 01130-51030 01133-51030 | 1 | $2.54 | |||
| 050 | BUSH 08511-01212 | 1 | $5.63 | |||
| 060 | BOLT,REAMER 7J612-62230 7J612-62232 | 1 | $10.22 | |||
| 070 | Nut Fastener 15021-05280 02552-50080 | 1 | $0.60 | |||
| 080 | LINK 1 K2771-35250 | 1 | $32.10 | |||
| 090 | External Circlip Retaining Ring 75599-41525 04612-00190 | 1 | $0.80 | |||
| 100 | COMP STAY, LEVER 7J612-96230 7J612-96232 | 1 | $193.53 | |||
| 110 | BUSHING, DU 3/4 7J612-62170 | 1 | $7.36 | |||
| 120 | Short Square Bolt K1122-91330 K1122-91332 | 1 | $0.60 | |||
| 130 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 140 | COVER, LEVER K1211-56140 | 1 | $1.23 | |||
| 150 | SPRING, LOCK 7J612-62810 7J612-62812 | 1 | $1.73 | |||
| 160 | COVER, LEVER 7J612-62353 | 1 | $12.30 | |||
| 170 | BOLT(FLANGE,BLAC K1122-91050 K1122-91053 | 1 | $1.61 | |||
| 180 | BOOT, CONTROL LE 7J612-62712 | 1 | $4.80 | |||
| 190 | LABEL, C/V LOCK 7J612-62910 7J612-62912 | 1 | $6.92 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-U95004-93369 U95004 FRONT CONTROL VALVE KIT (ROD) 2 [OPTION]
View Diagram -

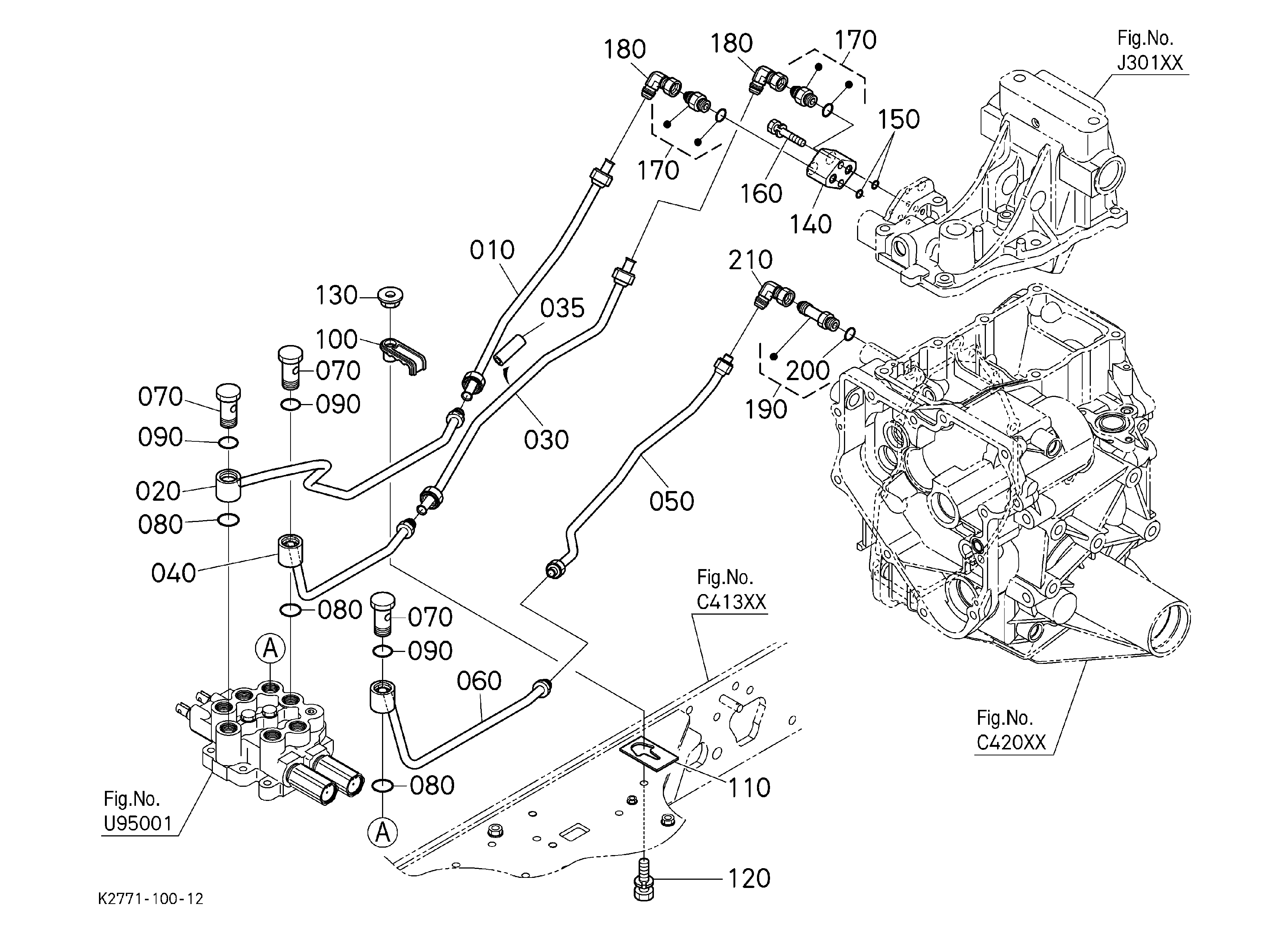

DIAG-U95007-93369 U95007 FRONT CONTROL VALVE KIT (OIL LINE) 2 [OPTION]
View Diagram -

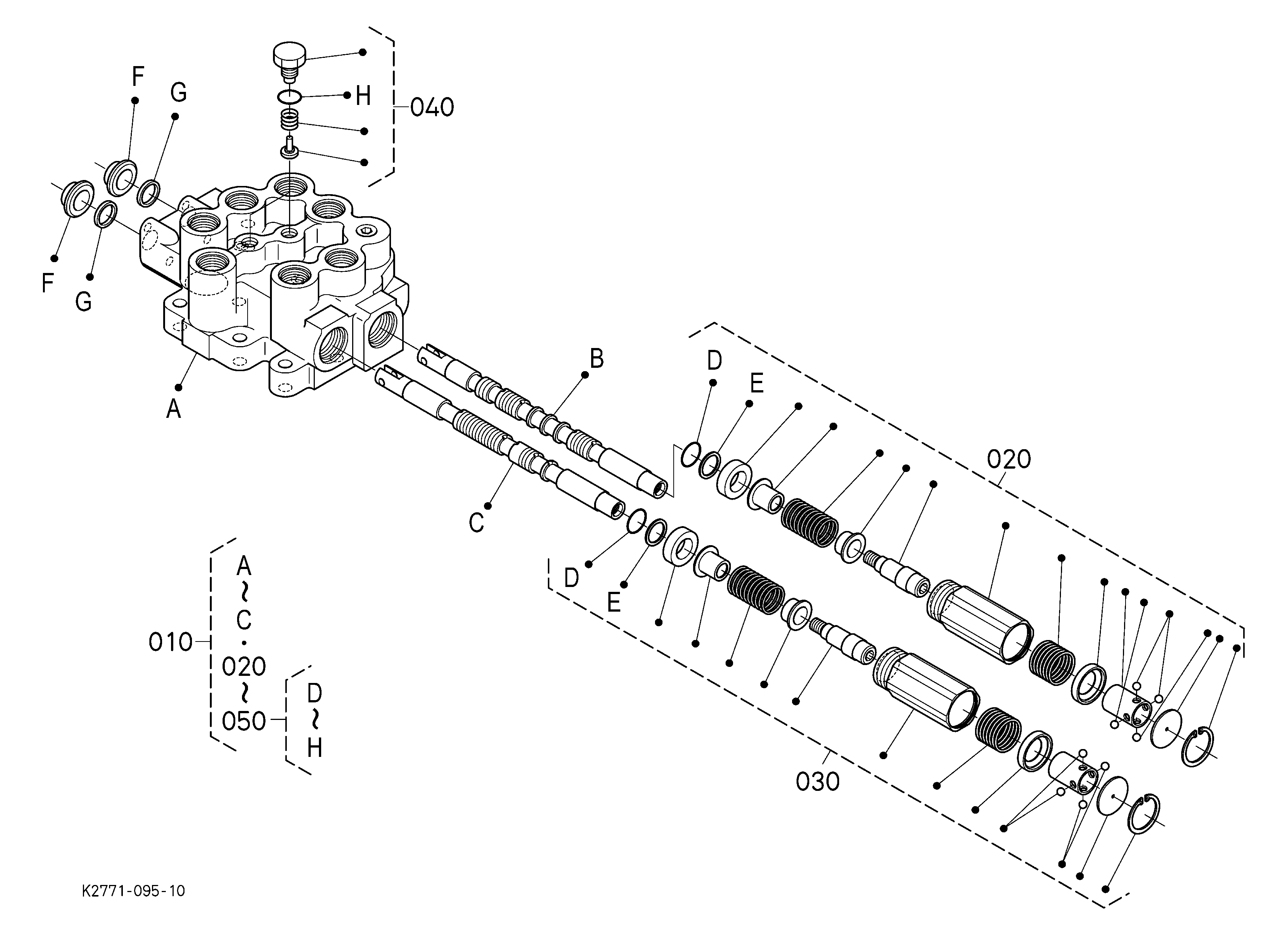

DIAG-U95002-93369 U95002 FRONT CONTROL VALVE KIT (VALVE)[COMP.PARTS][OPTION]
View Diagram
