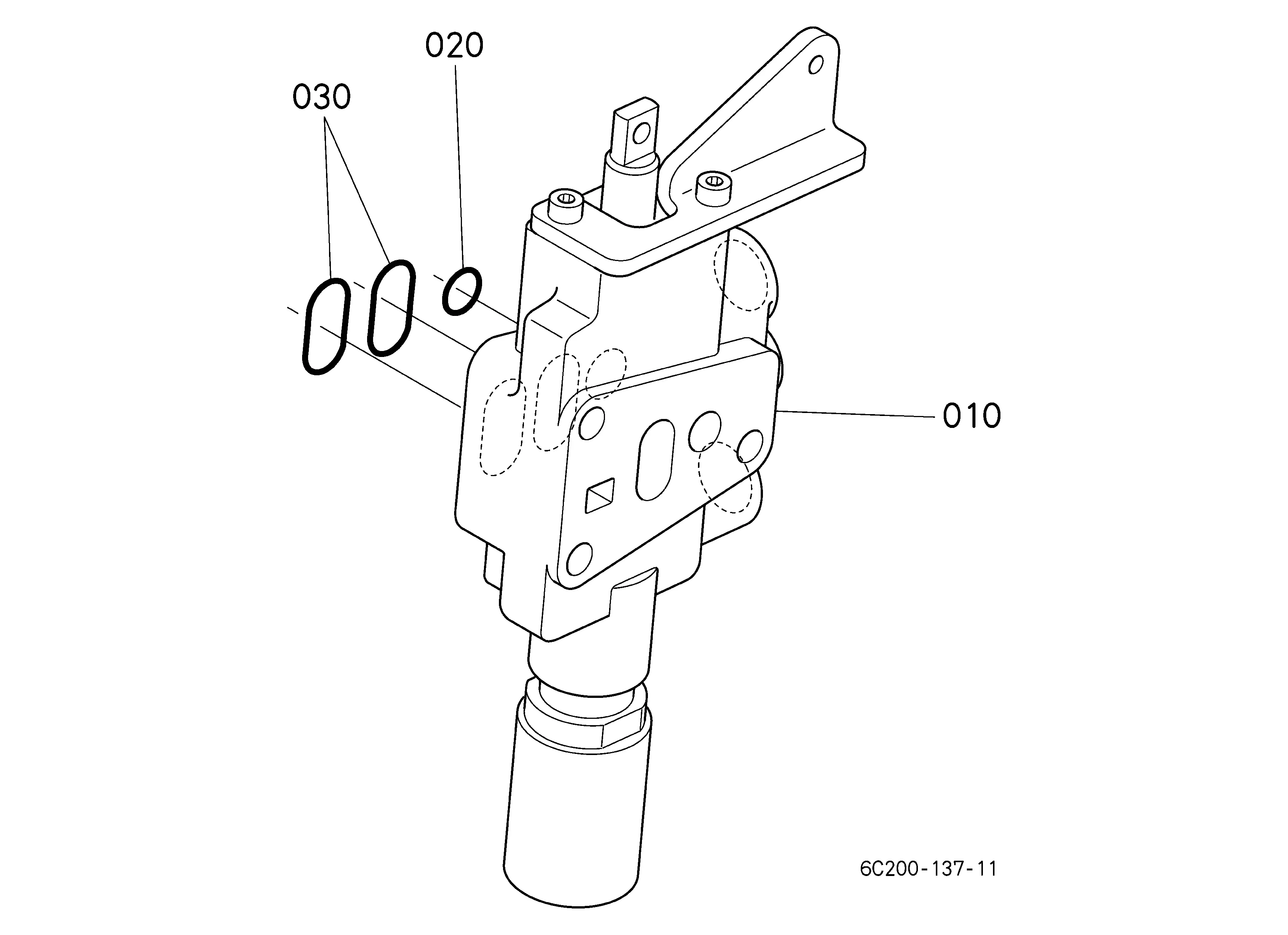

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET, AUX. CO 6C200-93200 6C200-93202 | 1 | $736.65 | |||
| 020 | O-Ring 04810-00070 04817-00070 | 1 | $2.50 | |||
| 030 | Bolt (Fastener) 01120-00830 01123-50830 | 1 | $1.37 | |||
| 040 | O RING 04817-05200 | 1 | $2.01 | |||
| 050 | O-ring 04815-00100 04817-00100 | 1 | $2.50 | |||
| 060 | ASSY COVER, VALV YW165-00100 | 1 | $173.87 | |||
| 070 | O RING 04810-00080 04817-00080 | 1 | $2.26 | |||
| 075 | PLUG (GPF1/8) 5H550-19830 | 1 | $16.10 | |||
| 080 | BOLT 6C200-93112 6C200-93113 | 1 | $51.00 | |||
| 090 | BOLT 01150-00875 01153-50875 | 1 | $3.53 | |||
| 100 | STUD 6C200-93130 6C200-93132 | 1 | $30.54 | |||
| 110 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 120 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
| 130 | PIPE, RETURN 6C200-93120 | 1 | $38.30 | |||
| 140 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 150 | LEVER, AUX. CON. 6C200-93150 6C200-93153 | 1 | $54.37 | |||
| 155 | GUIDE (AUX.CONTR 6C200-93190 6C200-93192 | 1 | $57.70 | |||
| 160 | PIN 68021-32792 68021-32790 | 1 | $10.08 | |||
| 170 | Plain Washer 04011-00050 04012-50050 | 1 | $0.36 | |||
| 180 | Split Pin (Cotter Pin) 05511-51210 | 1 | $0.14 | |||
| 190 | GRIP,AUX.CONTR.LEVER TD060-96260 TD060-96262 | 1 | $7.65 | |||
| 200 | MARK, AUX. CONT. TA040-49610 TA040-49612 | 1 | $5.03 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-U94501-93515 U94501 AUXILIARY CONTROL VALVE COUPLER (1ST) [OPTION]
View Diagram -
DIAG-U94002-93515 U94002 AUXILIARY CONTROL VALVE (FLOATING) [OPTION]
View Diagram -
DIAG-U94502-93515 U94502 AUXILIARY CONTROL VALVE COUPLER (2ND) [OPTION]
View Diagram
