Scroll to zoom Click a part # to view details

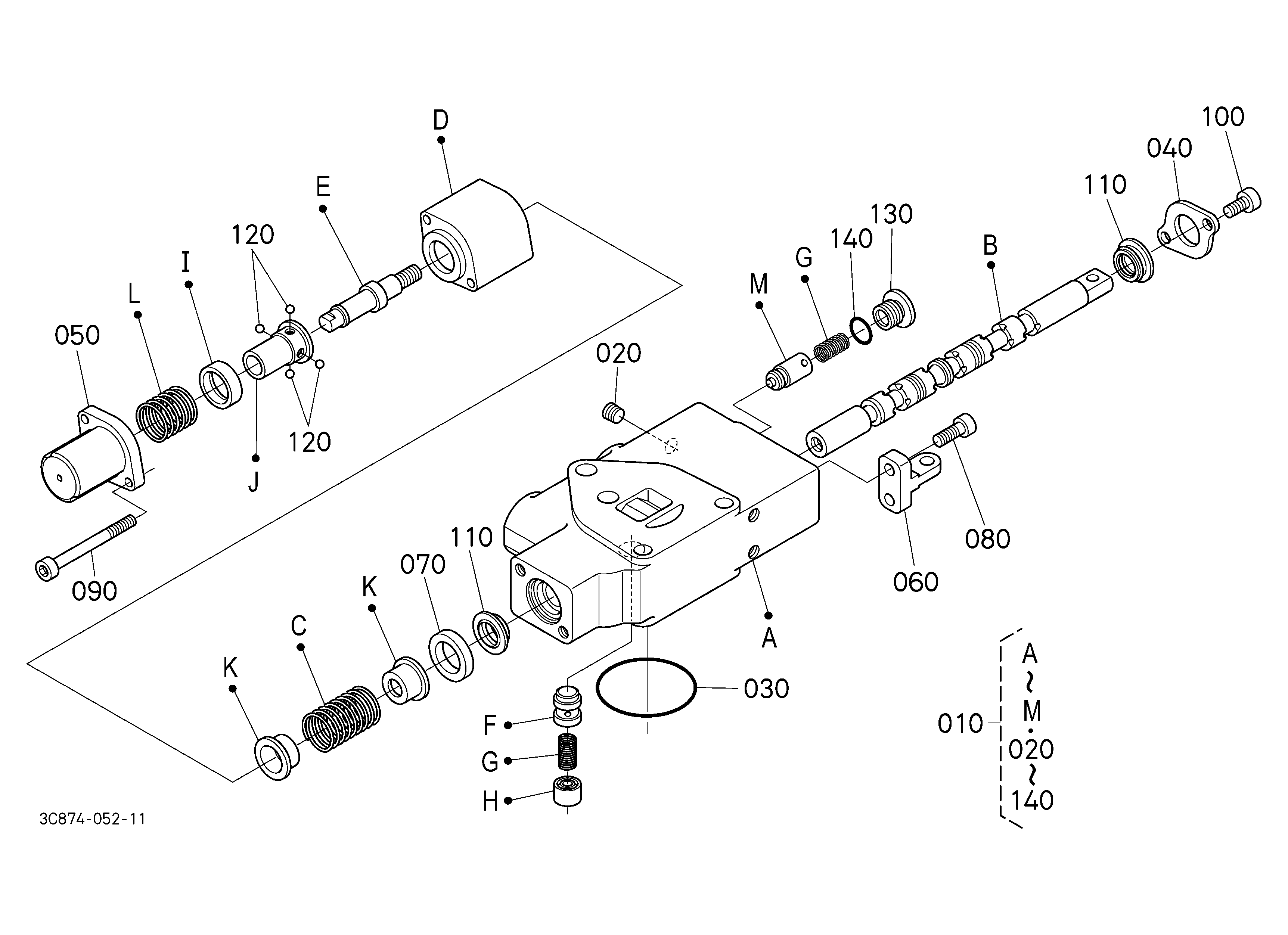

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | VALVE,AUX CONTRO 3A161-82610 3A161-82612 | 1 | $991.55 | |||
| 020 | O-Ring Seal 04815-07560 | 1 | $3.94 | |||
| 030 | SPACER 3G700-82070 3G700-82073 | 1 | $83.53 | |||
| 050 | SHAFT,M8200/M900 3A151-82220 | 1 | $135.88 | |||
| 060 | Spring Pin (Roll Pin) 05411-00414 | 1 | $0.80 | |||
| 070 | BOLT, STOPPER 36919-81530 | 1 | $23.54 | |||
| 080 | Nut Fastener W2336-07200 02114-50080 | 1 | $30.16 | |||
| 090 | BOLT 01176-51004 | 1 | $6.57 | |||
| 100 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 110 | BOLT 01156-50804 | 1 | $1.68 | |||
| 120 | Spring Washer 04512-50080 | 1 | $0.14 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-
DIAG-U70003-85956 U70003 AUXILIARY CONTROL VALVE KIT (SCD/FC) (W/G No. M9587) [OPTION]
View Diagram -
DIAG-U70501-85956 U70501 AUXILIARY CONTROL VALVE(FD) [COMPONENT PARTS] (W/G No. M9669A) [OPTION] [OLD]
View Diagram -
DIAG-U70002-85956 U70002 AUXILIARY CONTROL VALVE KIT (FD) (W/G No. M9669A) [OPTION]
View Diagram
