Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | EXPANSION TANK ABI 426 TO 456 269/40239 332/U7589 | 1 | $690.73 | |||
| 1 | PRESSURE CAP 477/00223 | 1 | $56.31 | |||
| 1B | VENT ELBOW 478/80066 32/925219 | 1 | $52.84 | |||
| 1C | STUD 477/00549 | 1 | $68.22 | |||
| 1D | PLATE 331/23788 | 1 | $73.98 | |||
| 1E | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 1F | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 1G | Foam Seal Strip (1 roll = 10 Feet) 926/04700 | 1 | $3.14 | |||
| 1H | A113 50 mltrs PERMABOND 4101/0251 | 1 | $36.80 | |||
| 2 | TOP HOSE 834/11477 | 1 | $113.79 | |||
| 3 | BOTTOM HOSE 332/V3170 | 1 | $503.56 | |||
| 4 | WATER FEED HOSE - 426 834/11212 | 1 | $145.09 | |||
| 5 | WA TUBE ASSY 830/12729 | 1 | $85.18 | |||
| 6 | HOSE - 9.5mm BORE 760mm LG 648/00421 | 1 | $16.69 | |||
| 7 | HOSE - 9.5mm BORE 600mm LG 648/00422 | 1 | $12.25 | |||
| 8 | HOSE - 9.5mm BORE 1000mm LG 648/00418 648/00425 | 1 | $29.54 | |||
| 9 | CONNECTING PIPE 830/00642 | 1 | $19.57 | |||
| 10 | COUPLING 1/2 BSP 893/14026 | 1 | $16.80 | |||
| 11 | PLUG 1/2"BSPP G8/0 | 1 | $0.00 | |||
| 13 | HOSE CLIPPING BRKT 331/60095 | 1 | $211.86 | |||
| 14 | GROMMET-CAC PIPE 828/10351 | 1 | $128.81 | |||
| 15 | (W) (P) GROMMET 2410/0209 | 1 | $13.84 | |||
| 16 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 17 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
| 18 | SPACER 829/30608 | 1 | $18.79 | |||
| 19 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 20 | (W) P-CLIP - 25mm(KANBAN) 821/00329 | 1 | $6.83 | |||
| 21 | PIPE CLIP 35mm 821/10387 | 1 | $16.04 | |||
| 22 | HOSE CLIP 821/00501 | 1 | $54.55 | |||
| 23 | BOSS STEER LEVER 829/30160 | 1 | $3.67 | |||
| 24 | '(W) (P) CLIP - WORMDRIVE 12/22mm(KANBAN 2201/0003 | 1 | $5.72 | |||
| 25 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $0.00 | |||
| 26 | CLIP - WORMDRIVE 35/50mm 2201/0008 | 1 | $5.41 | |||
| 27 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 28 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $2.40 | |||
| 29 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.22 | |||
| 30 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 31 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 32 | SET-SCREW M12 L-_25mm 1315/0507D | 1 | $0.00 | |||
| 33 | SET-SCREW M12 L-_30mm 1315/0508D | 1 | $0.00 | |||
| 34 | (W) BOLT M8x80 1315/3318D | 1 | $3.67 | |||
| 35 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 37 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 38 | WASHER M12 PLAIN 1420/0009D | 1 | $0.00 | |||
| 39 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 41 | WA WATER OUTLET PIPE 830/13287 | 1 | $233.63 | |||
Showing 1 to 46 of 46 parts
Related Assemblies
-

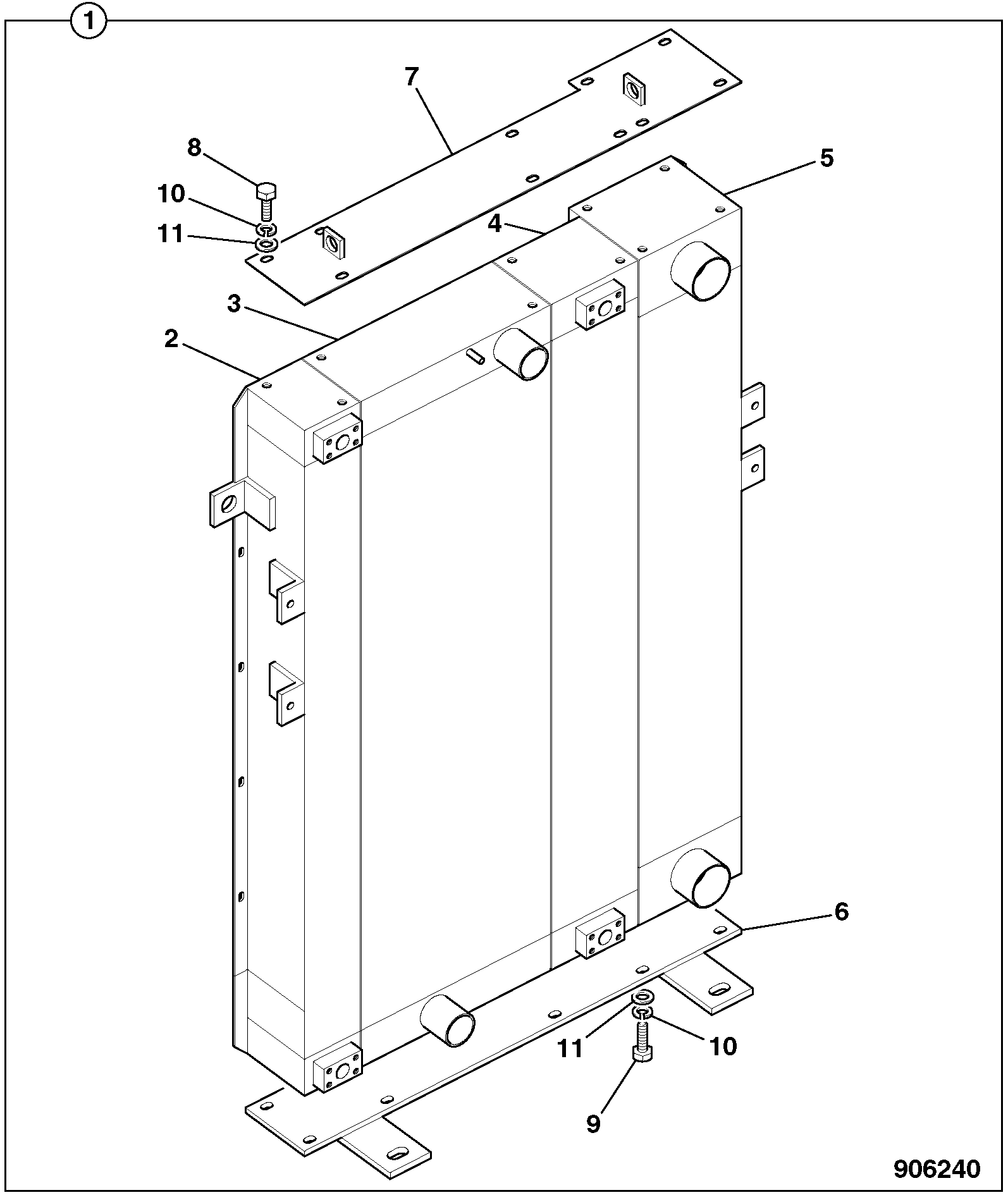

DIAG-U4-4-4-404694 U4-4-4 COOLER ASSEMBLY WIDE CORE EPOXY COATED
View Diagram -
DIAG-U4-6-1-404694 U4-6-1 COOLER,AIR CHARGE HOSE AND PIPEWORK
View Diagram -
DIAG-U4-4-3-404694 U4-4-3 COOLER ASSEMBLY WIDE CORE
View Diagram
