U3-1-3 HEATER, COLD START Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	SCREW 02/911098	1	AVAILABLE TO ORDER	$49.13	Quantity
3	Screw terminal 02/912638	1	AVAILABLE TO ORDER	$46.26	Quantity
4	Retainer cover 02/912267	1	AVAILABLE TO ORDER	$59.46	Quantity
5	Heater air 717/20333	1	AVAILABLE TO ORDER	$286.52	Quantity

Showing 1 to 4 of 4 parts

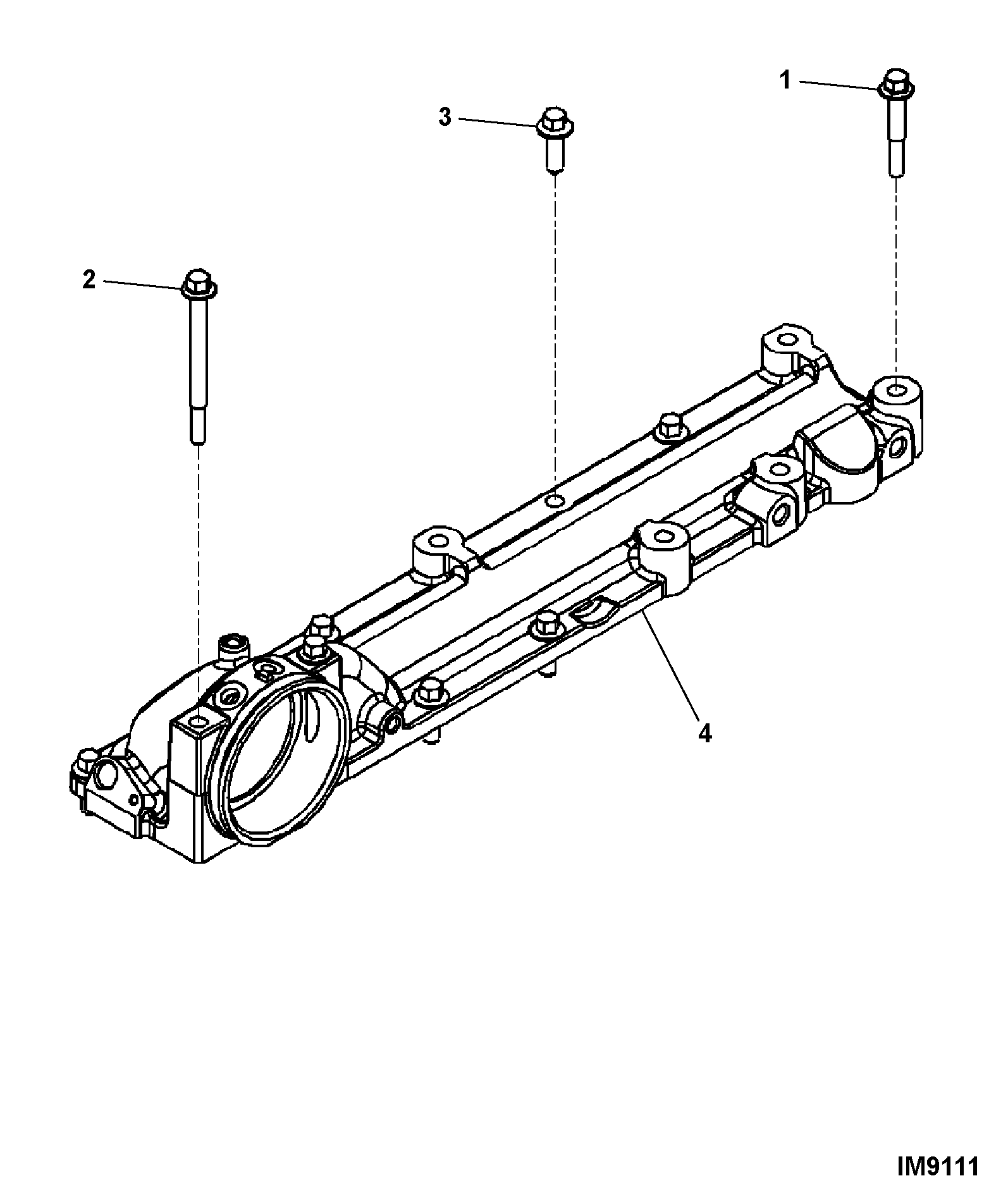

DIAG-U3-1-2-404694 U3-1-2 INTAKE MANIFOLD
View Diagram

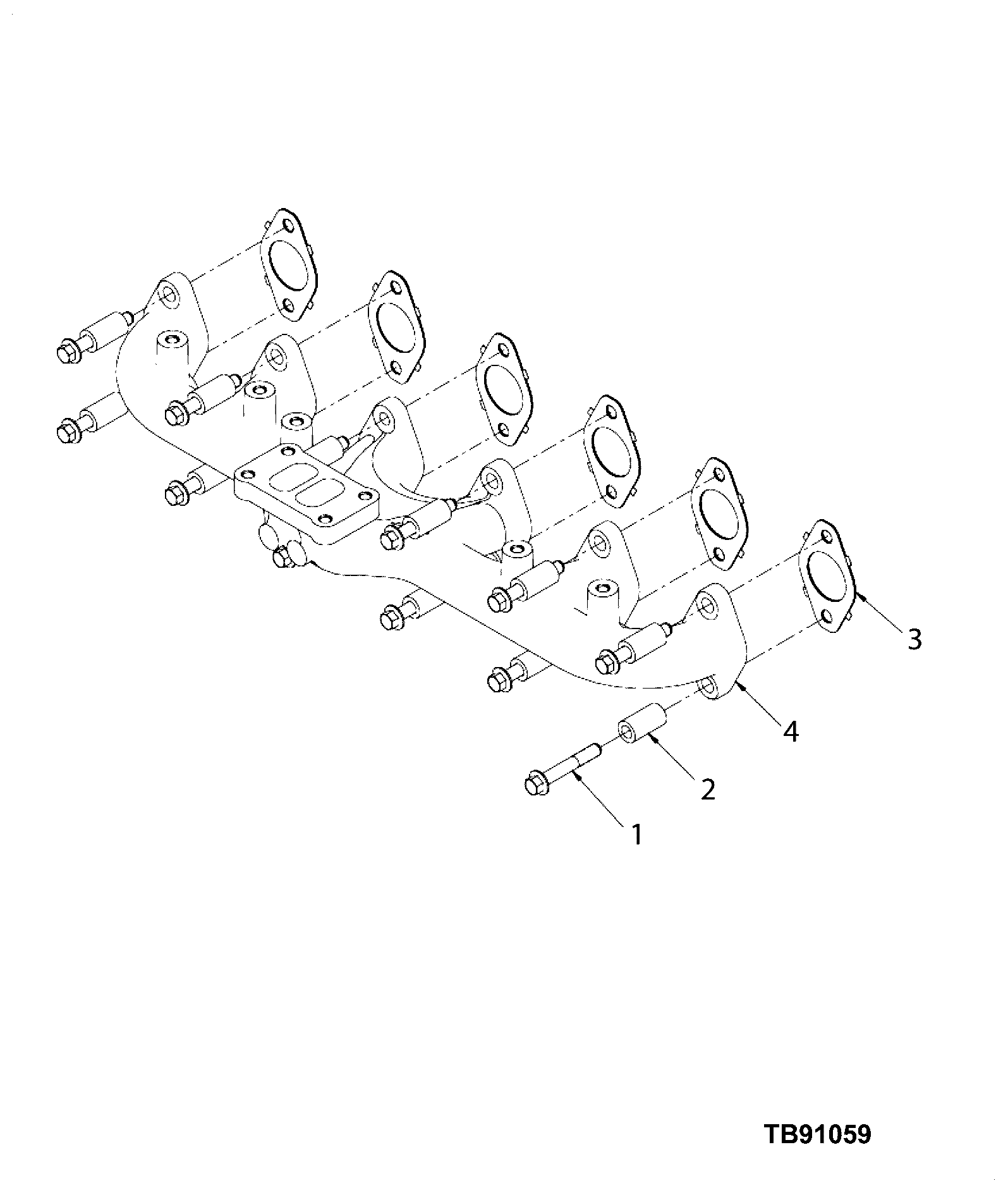

DIAG-U3-2-2-404694 U3-2-2 EXHAUST MANIFOLD
View Diagram

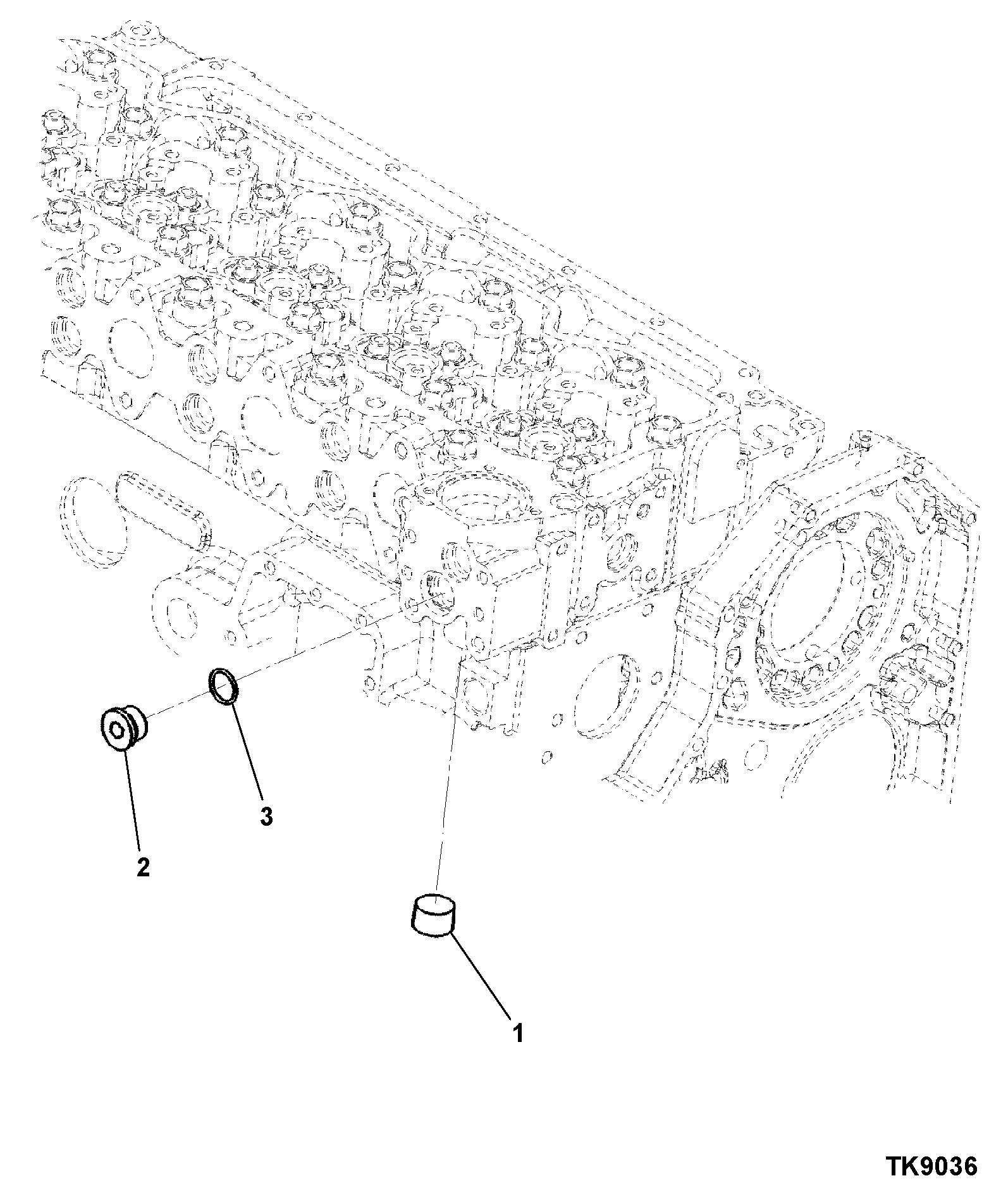

DIAG-U2-7-1-404694 U2-7-1 TORQUE CONVERTOR COOLING
View Diagram

Previous Assembly DIAG-U3-1-2-404694 U3-1-2 INTAKE MANIFOLD Next Assembly DIAG-U3-2-2-404694 U3-2-2 EXHAUST MANIFOLD
