Scroll to zoom Click a part # to view details

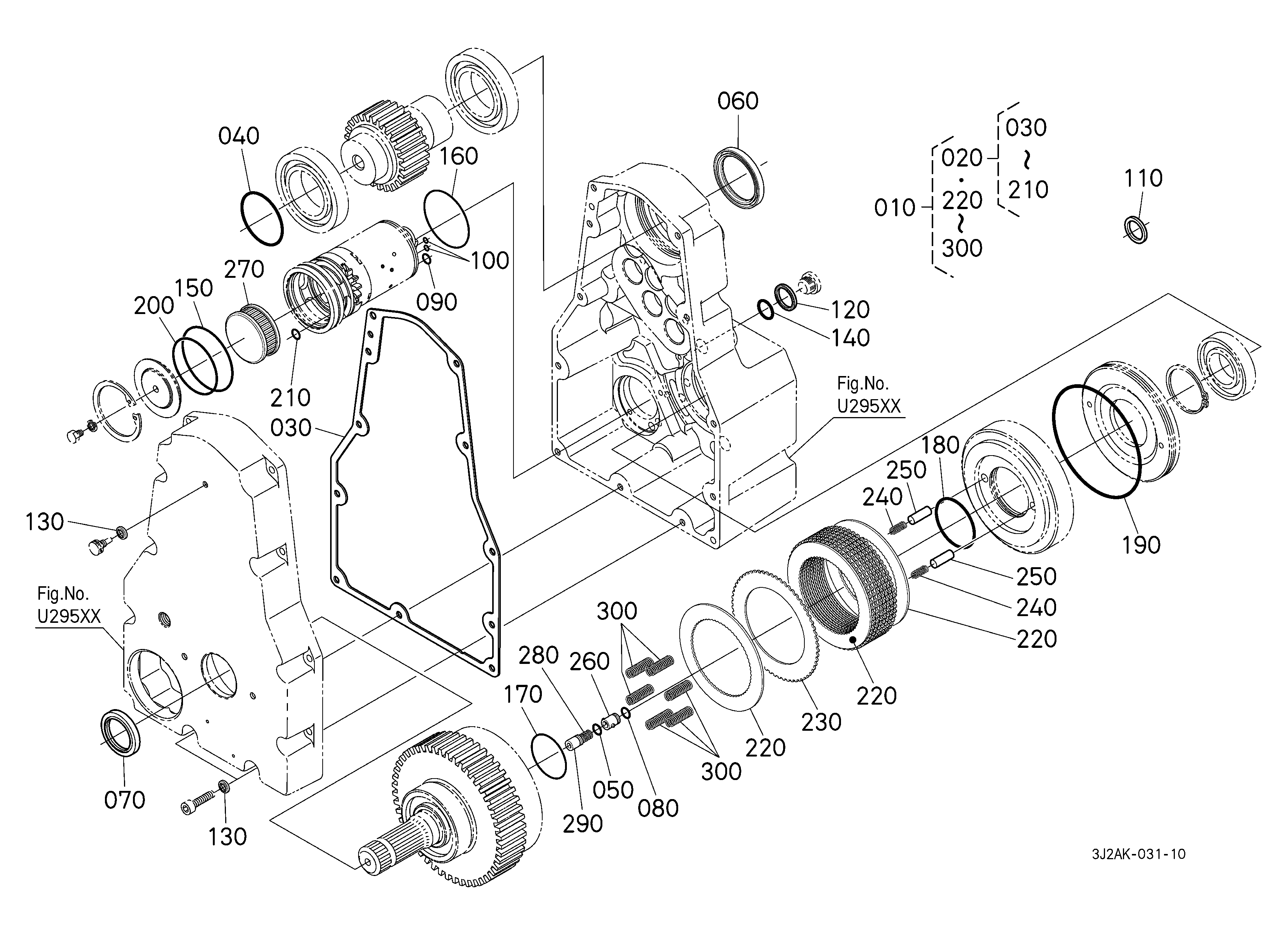

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY, CASE GEAR 3J080-19010 | 1 | $8,385.80 | |||
| 020 | PIN(8*30) 3J080-18310 | 1 | $44.81 | |||
| 030 | CASE(GEAR,BACK) 3J080-18350 | 1 | $1,956.30 | |||
| 040 | PLUG 3J080-18360 | 1 | $66.37 | |||
| 050 | PIN(8*24) 3J080-18370 | 1 | $11.23 | |||
| 060 | GASKET(GEAR CASE 3J080-18460 | 1 | $92.84 | |||
| 070 | CASE(GEAR,FRONT) 3J080-18470 | 1 | $1,375.35 | |||
| 080 | SCREW(M8*30) 3J080-18480 | 1 | $5.20 | |||
| 090 | SEAL 3J080-18490 | 1 | $10.95 | |||
| 100 | BOLT 3J080-18510 | 1 | $90.44 | |||
| 110 | BOLT(M6*25) 3J080-18530 | 1 | $3.38 | |||
| 120 | BOLT(M6*45) 3J080-18540 | 1 | $3.68 | |||
| 130 | PLUG(M20*1.5) 3J080-18560 | 1 | $145.39 | |||
| 140 | O-RING(18*2.5) 3J080-18570 | 1 | $3.75 | |||
| 150 | PLUG(M10*1.0) 3J080-18580 | 1 | $50.32 | |||
| 170 | PLUG(M18*1.5) 3J080-18590 | 1 | $57.85 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

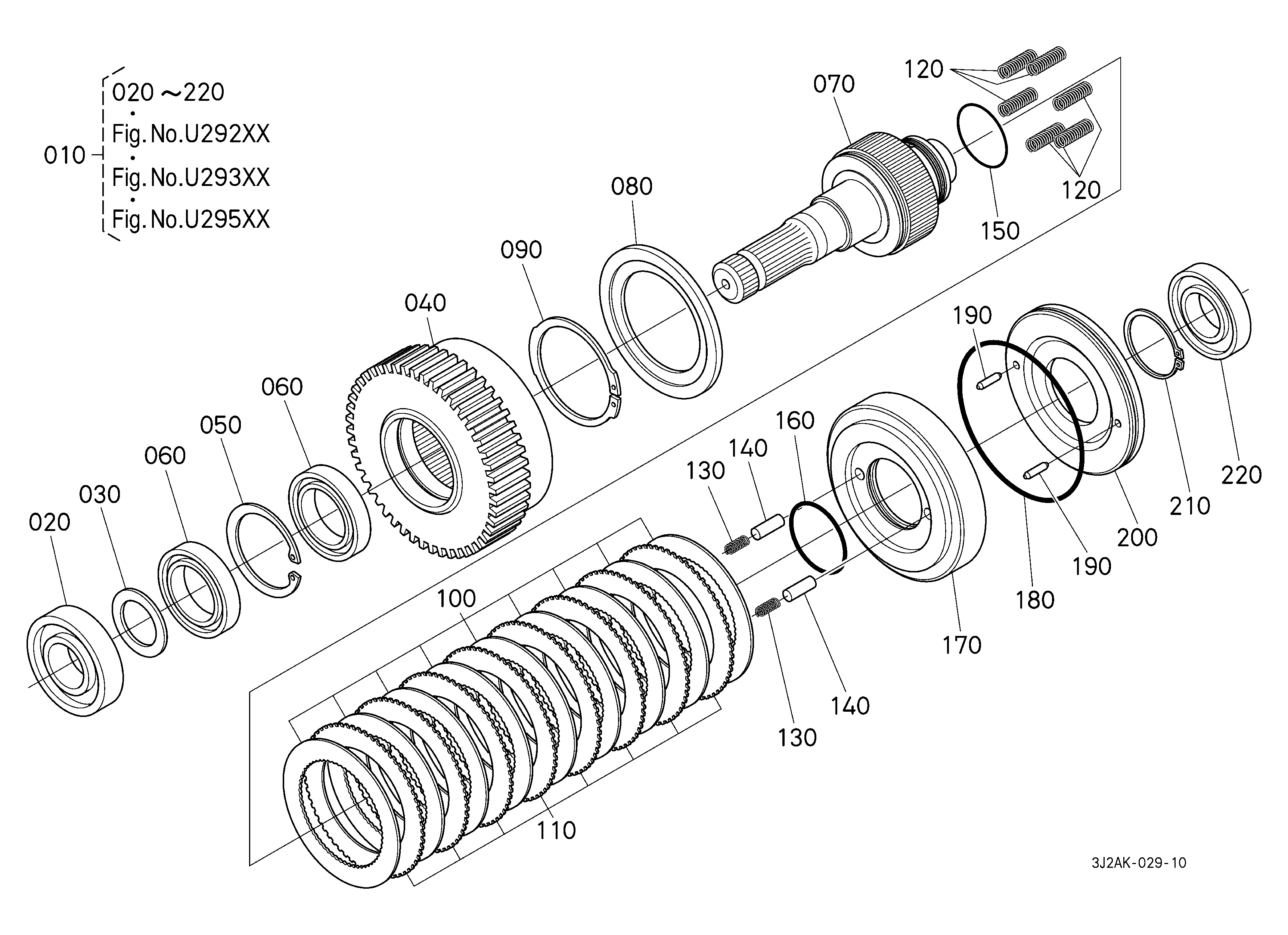

DIAG-U29400-125535 U29400 FRONT PTO KIT (21 SPLINES) (CLUTCH) (W/G No.M3964) [OPTION]
View Diagram -
DIAG-U29600-125535 U29600 FRONT PTO KIT (21 SPLINES) (GEAR CASE/GASKET) (W/G No.M3964) [OPTION]
View Diagram -

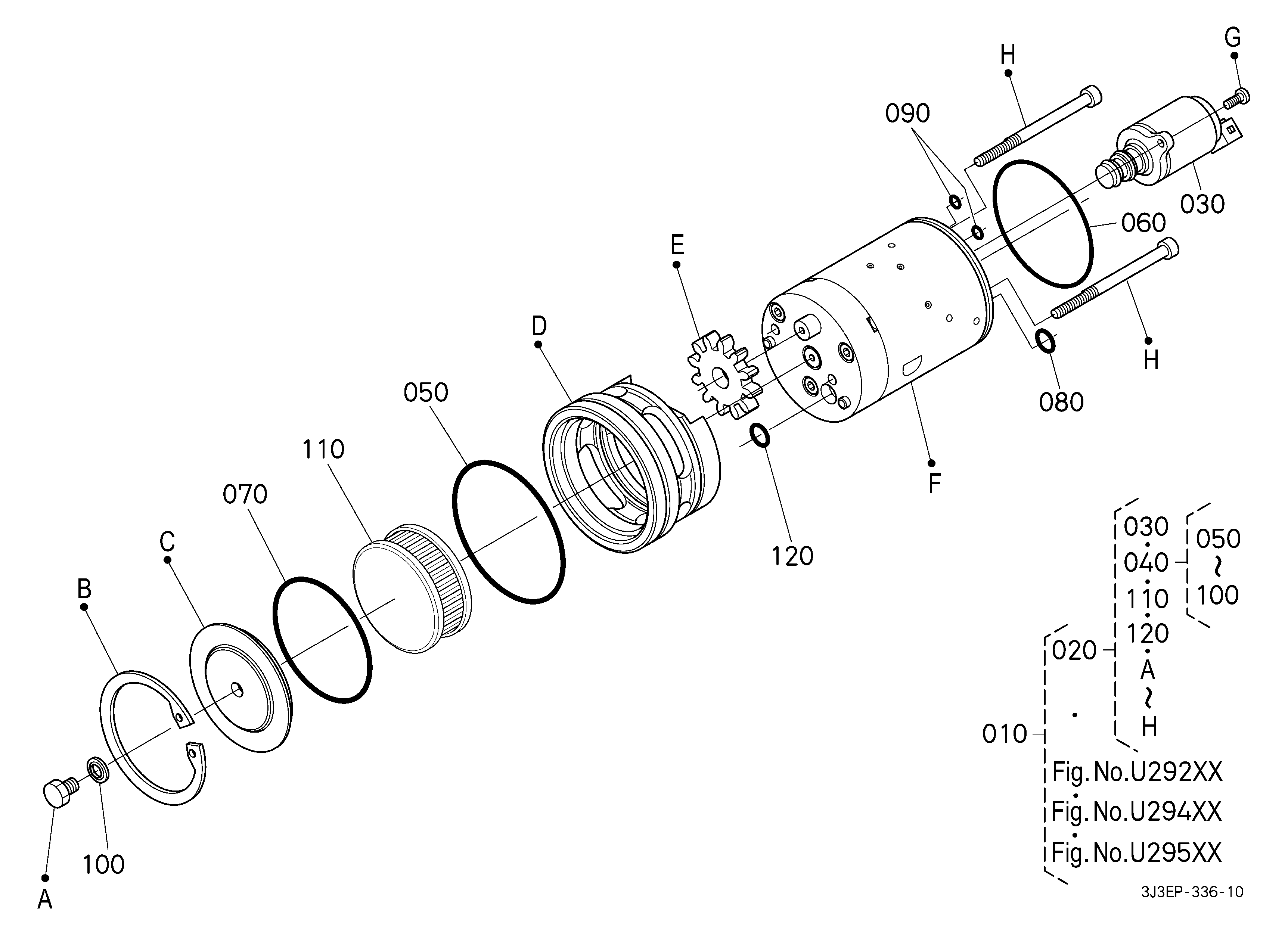

DIAG-U29300-125535 U29300 FRONT PTO KIT (21 SPLINES) (PUMP) (W/G No.M3964) [OPTION]
View Diagram
