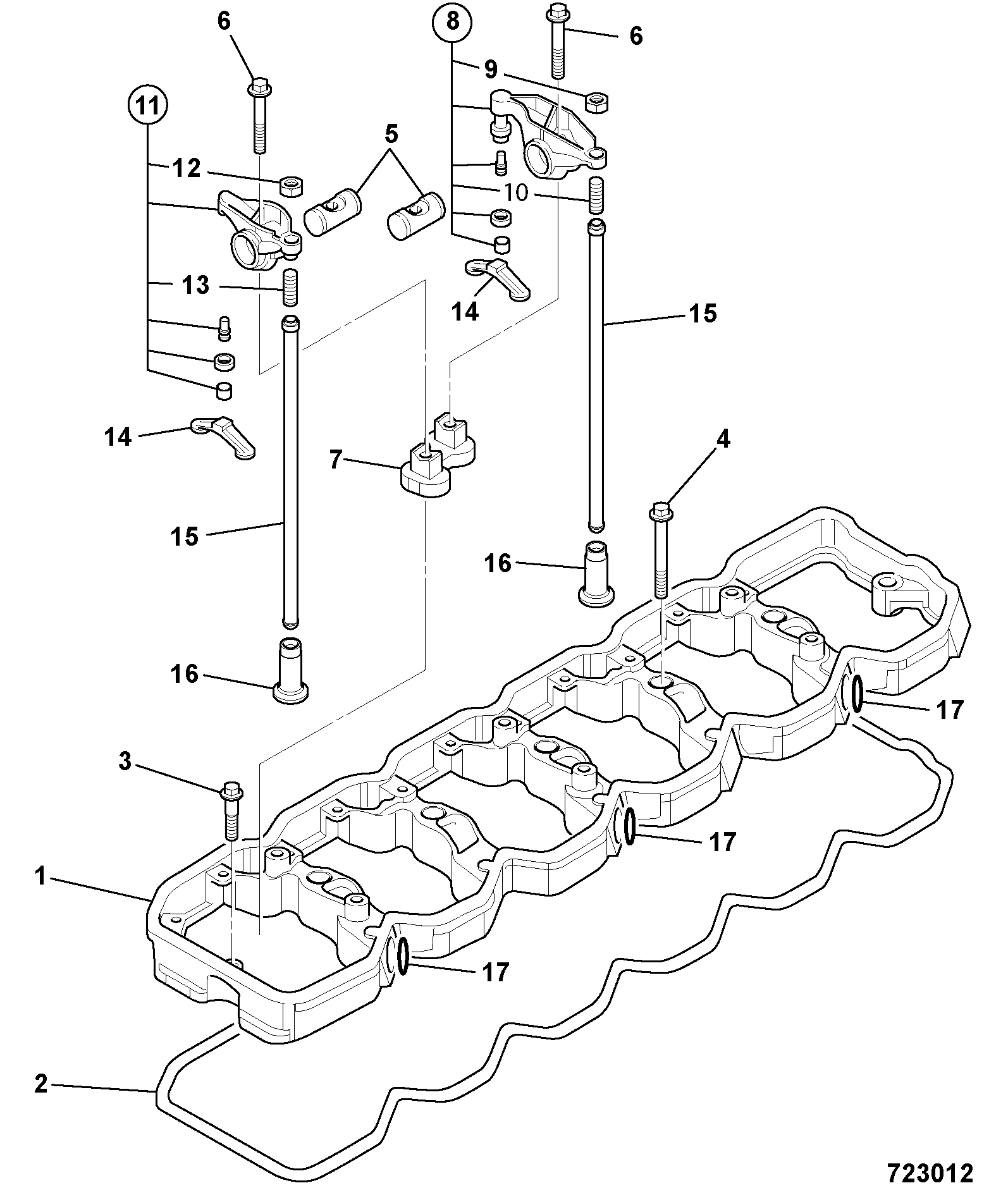

U2-3-1 ROCKER COVER Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Gasket 02/912151	1	AVAILABLE TO ORDER	$145.49	Quantity
2	Screw 02/911869	1	AVAILABLE TO ORDER	$10.40	Quantity
4	BOLT 02/911027	1	AVAILABLE TO ORDER	$10.54	Quantity
5	Spacer 02/912152	1	AVAILABLE TO ORDER	$19.33	Quantity
7	Screw 336/C3454 02/912153	1	AVAILABLE TO ORDER	$19.90	Quantity

Showing 1 to 5 of 5 parts

DIAG-U2-4-1-404937 U2-4-1 BREATHER ENGINE OIL
View Diagram
DIAG-U2-2-1-404937 U2-2-1 ROCKER ASSEMBLY PUSH RODS & TAPPETS
View Diagram
DIAG-U2-5-1-404937 U2-5-1 LIFTING PLATES
View Diagram

Previous Assembly DIAG-U2-2-1-404937 U2-2-1 ROCKER ASSEMBLY PUSH RODS & TAPPETS Next Assembly DIAG-U2-4-1-404937 U2-4-1 BREATHER ENGINE OIL
