Kubota RTV900W8SE U13800 WORK LIGHT KIT (FRONT) [OPTION] Parts Diagram

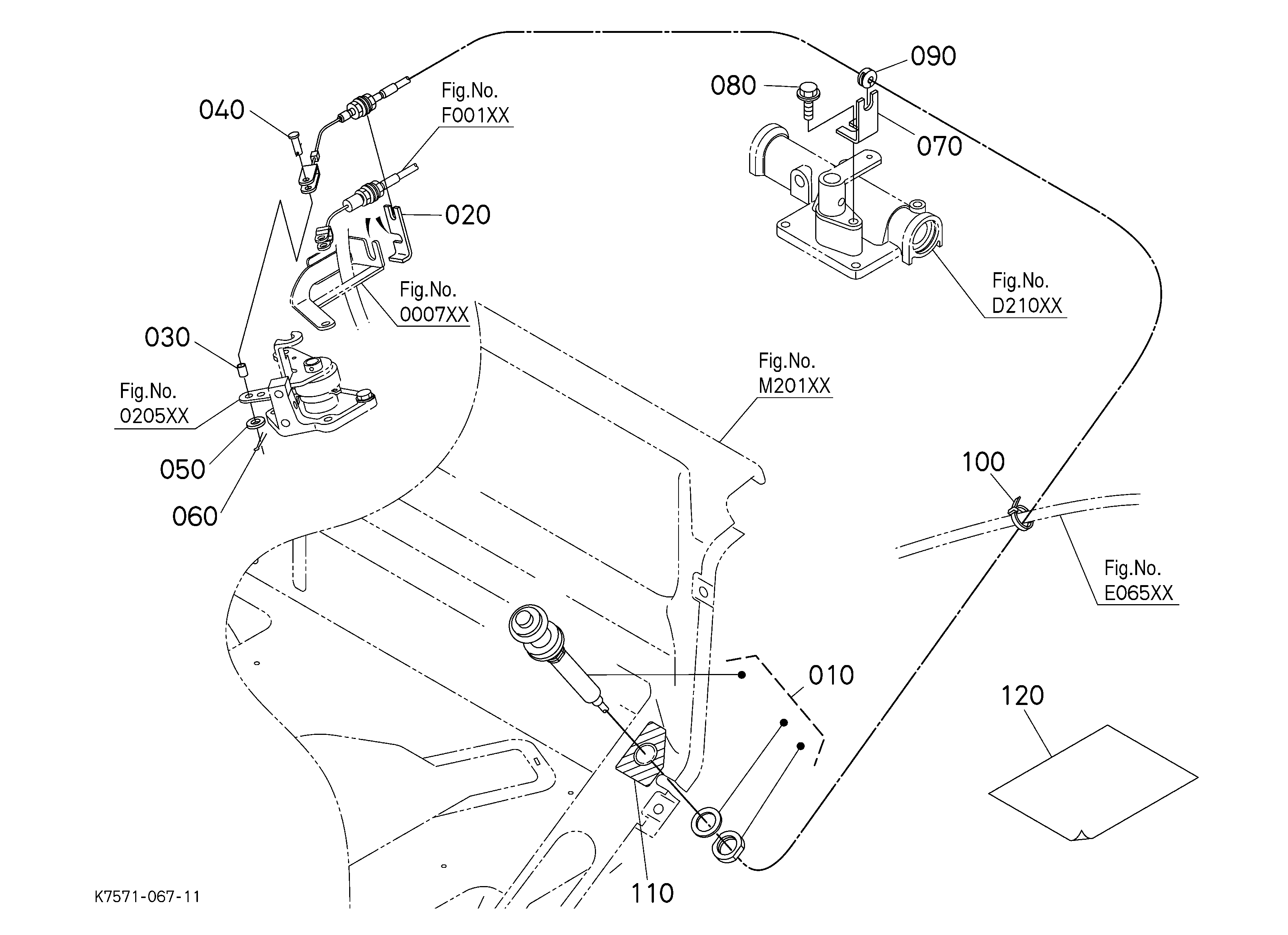

Exploded-view parts diagram "U13800 WORK LIGHT KIT (FRONT) [OPTION]" for the Kubota RTV900W8SE. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET, WORK LI K7561-96210 | 1 | $16.24 | |||
| 020 | BOLT (U, ROOF) K7561-39622 K7561-39623 | 1 | $6.29 | |||
| 030 | Accessory Kit Cushion K7561-39630 | 1 | $3.31 | |||
| 040 | Cushion (RTV Roof/Windshield/Canopy Kit Options) K7561-39640 | 1 | $4.46 | |||
| 050 | Locking Nut K7561-39650 K7561-39652 | 1 | $0.51 | |||
| 060 | Work Light R2401-53380 | 1 | $244.11 | |||
| 070 | Bulb 99061-91060 | 1 | $27.24 | |||
| 080 | COMP STAY 99061-91090 | 1 | $41.03 | |||
| 090 | NUT 99061-91110 | 1 | $5.61 | |||
| 100 | WASHER, PLAIN 99061-91100 | 1 | $5.61 | |||
| 110 | BOLT 01202-50616 | 1 | $1.14 | |||
| 120 | WIRE HARNESS, WO K7561-96220 | 1 | $50.64 | |||
| 130 | BAND,CORD K1122-61230 | 1 | $0.36 | |||
| 140 | TIE, WIRE K1211-61230 | 1 | $2.86 | |||
| 150 | RELAY, CA K7561-62310 | 1 | $24.25 | |||
| 160 | SCREW, TAPPING 03714-50616 | 1 | $1.06 | |||
Showing 1 to 16 of 16 parts
