Kubota M100XDTC U10800 ECU COVER KIT [OPTION] Parts Diagram

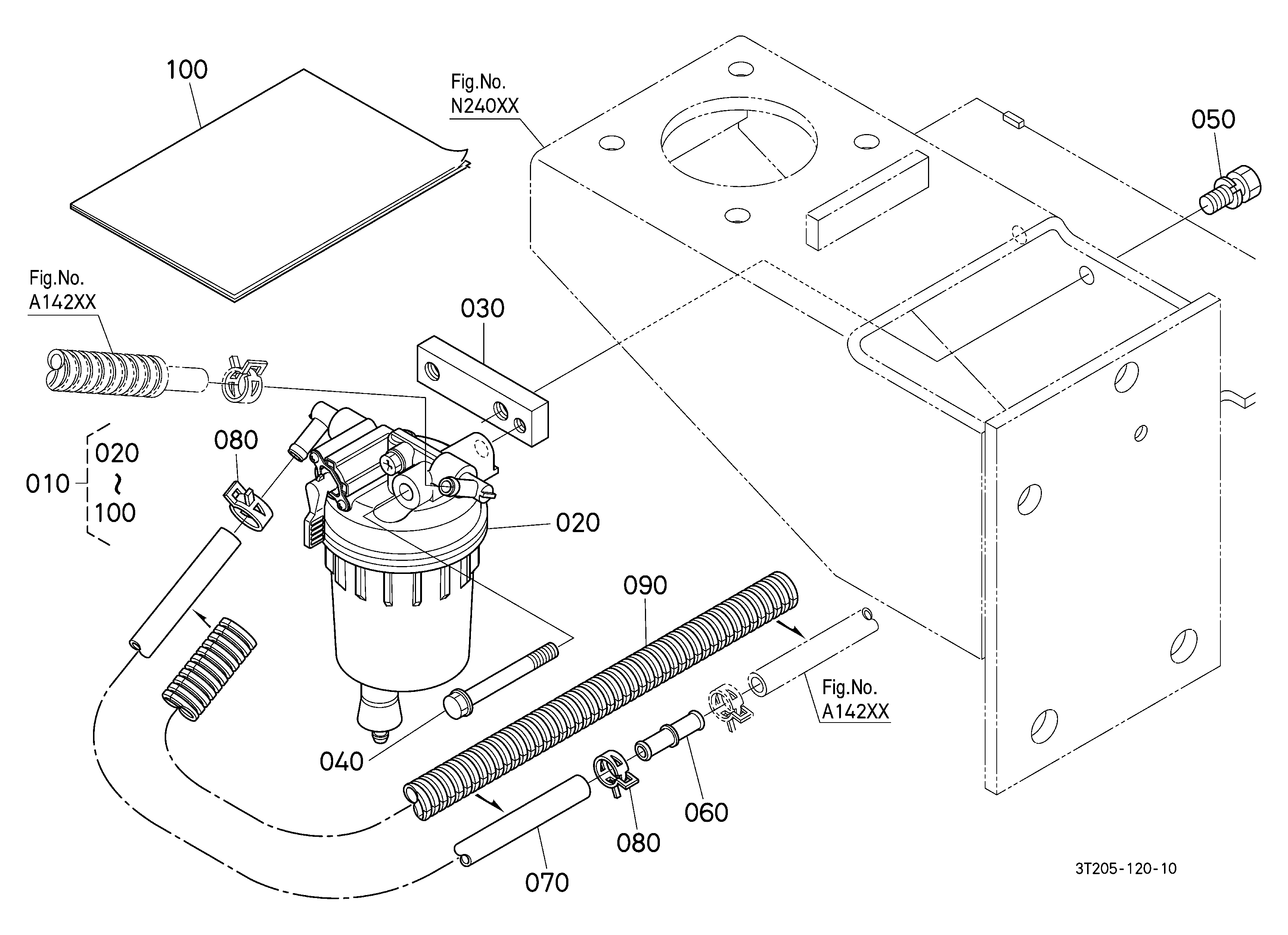

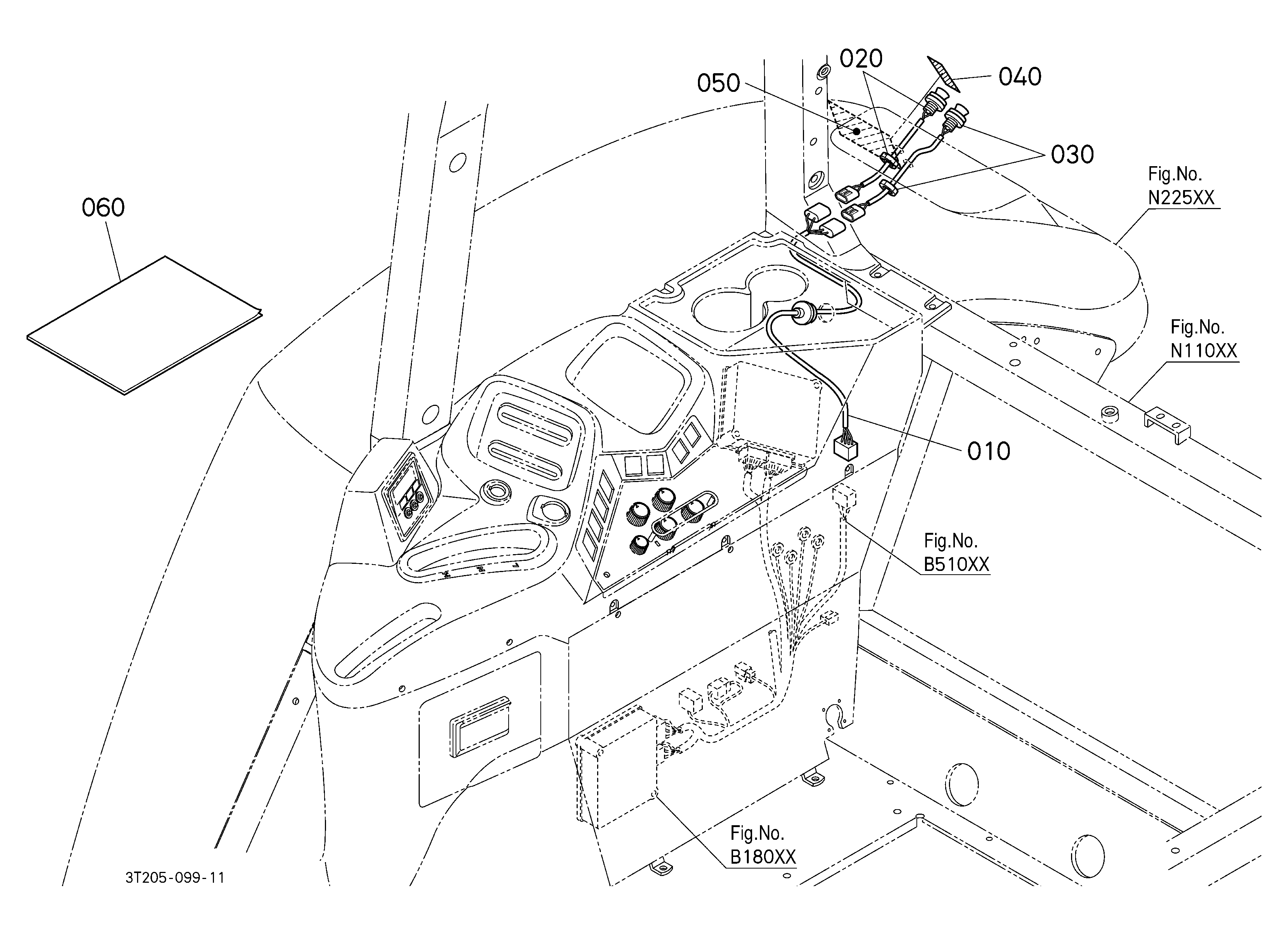

Exploded-view parts diagram "U10800 ECU COVER KIT [OPTION]" for the Kubota M100XDTC and Kubota M110XDTC. 21 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | COVER,KIT(ECU,O. 3T999-01910 | 1 | $1,085.37 | |||
| 010 | BASE,BATTERY 3T999-01790 | 1 | $980.71 | |||
| 020 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 030 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 040 | CUSHION (ECU) 3N600-77430 | 1 | $19.19 | |||
| 050 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.60 | |||
| 060 | Lock Nut (Locknut) - M6x1.25 W2336-06100 02552-50060 | 1 | $1.51 | |||
| 070 | SPONGE,SEAL,1 3T999-01810 | 1 | $39.84 | |||
| 080 | SPONGE,SEAL,2 3T999-01820 | 1 | $15.11 | |||
| 090 | SPONGE,BASE 3T999-01830 | 1 | $45.48 | |||
| 100 | PLATE,SEAL 3T999-01800 | 1 | $77.06 | |||
| 120 | GROMMET,HARNESS, 3T999-01890 | 1 | $15.11 | |||
| 130 | SPONGE,SEAL,PLAT 3T999-01840 | 1 | $2.61 | |||
| 140 | SPONGE,SEAL,PLAT 3T999-01850 | 1 | $6.69 | |||
| 150 | SPONGE,SEAL,HARN 3T999-01860 | 1 | $3.01 | |||
| 160 | COVER T1270-33590 36330-63330 | 1 | $6.21 | |||
| 170 | SPONGE,SEAL,HARN 3W900-77700 | 1 | $6.11 | |||
| 180 | SPONGE,BLIND,LH 3T999-01870 | 1 | $11.99 | |||
| 190 | SPONGE,BLIND,RH 3T999-01880 | 1 | $11.99 | |||
| 200 | TRIM, SKIRT 6A320-54370 | 1 | $6.82 | |||
| 210 | CUSHION,BASE,BAT 3W900-77710 | 1 | $11.50 | |||
Showing 1 to 21 of 21 parts
