Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

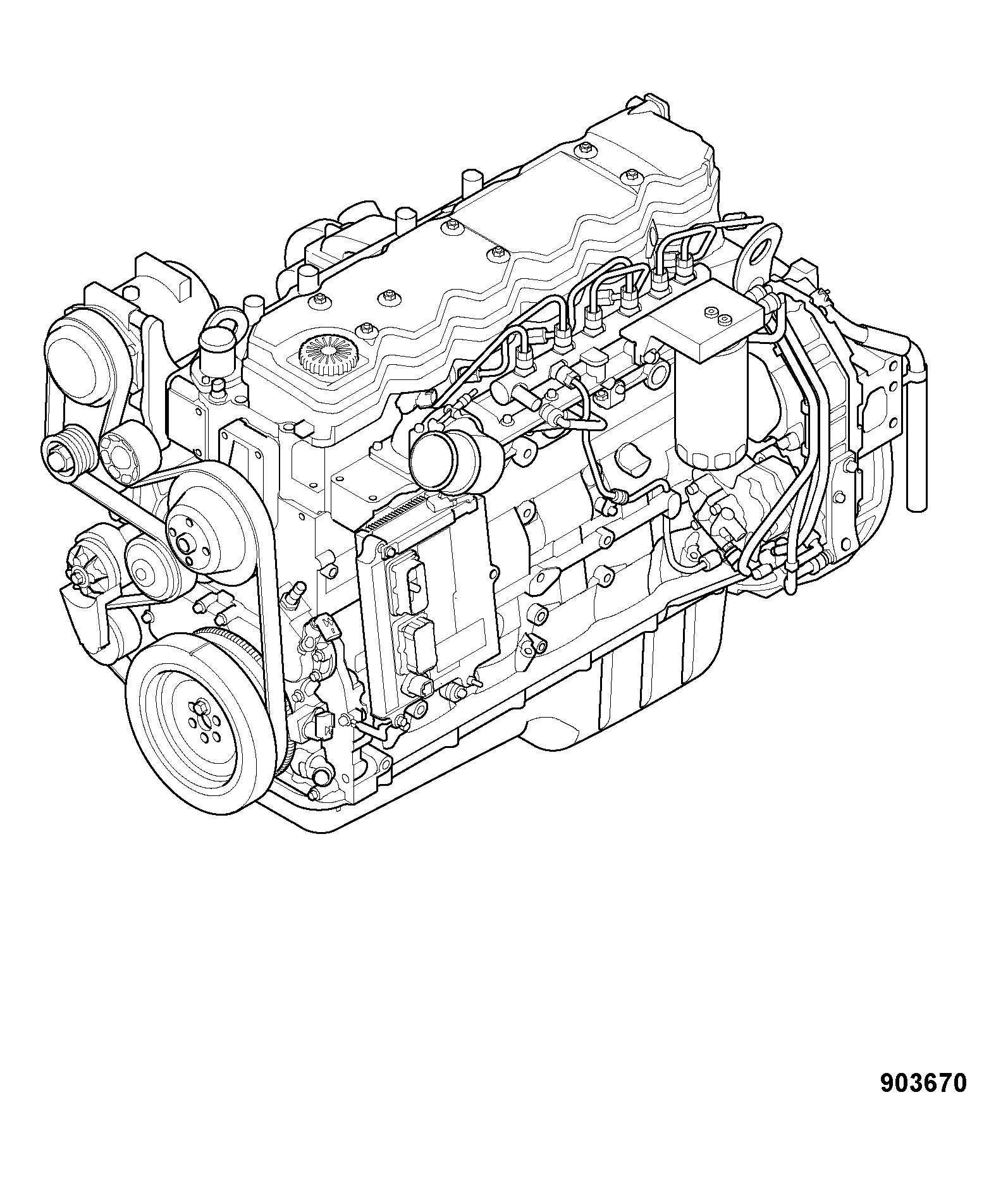

| 1 | 436 eMWW ENGINE SPEC 333/R6406 | 1 | $45,018.64 | |||
| 2 | SEALED ALTERNATOR 28V 140A 333/R6911 334/R2950 | 1 | $5,835.86 | |||
| 3 | SEALED STARTER MOTOR (ATB) 332/W4745 | 1 | $10,900.05 | |||
| 4 | AIR-CON COMPRESSOR 123/04999 400/Z1030 | 1 | $1,062.04 | |||
| 5 | CAP SCREW M10x30 1391/3408 | 1 | $2.44 | |||
| 6 | STUD M10x50 826/11002 | 1 | $66.92 | |||
| 7 | WASHER LOCK M10 823/10261 | 1 | $5.93 | |||
| 8 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
| 9 | FAN BELT:155 477/01663 402/D9160 | 1 | $26.38 | |||
| 10 | MOUNT BLOCK-AIR CON COMP 332/W8598 | 1 | $680.20 | |||
| 11 | CAP SCREW M10x80 1391/3418D | 1 | $7.72 | |||
| 12 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 13 | COMPRESSOR GUARD 331/32039 | 1 | $185.06 | |||
| 14 | Screw cap 1391/3423D | 1 | $19.19 | |||
| 15 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 16 | CAPSCREW: M10 x 40 1391/3410D | 1 | $2.23 | |||
| 17 | Belt V ribbed 333/F6645 | 1 | $219.78 | |||
| 18 | ENGINE DIPSTICK TUBE ASSEMBLY 331/61756 332/S6907 | 1 | $182.72 | |||
| 19 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 20 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 21 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 22 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 23 | WA DIPSTICK MTG 333/S2804 | 1 | $613.65 | |||
| 24 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-U1-1-4-404870 U1-1-4 ENGINE COMPLETE QSB 6.7L 173BHP
View Diagram -
DIAG-U1-1-10-404870 U1-1-10 ENGINE COMPLETE CUMMINS QSB 6.7L T3 173BHP
View Diagram -
DIAG-G1-5-2-404870 G1-5-2 BRAKE SYSTEM
View Diagram
