Kubota M5N-091HD12 U07901 DIESEL EXHAUST FLUID TANK COVER KIT (COVER) [OPTION] Parts Diagram

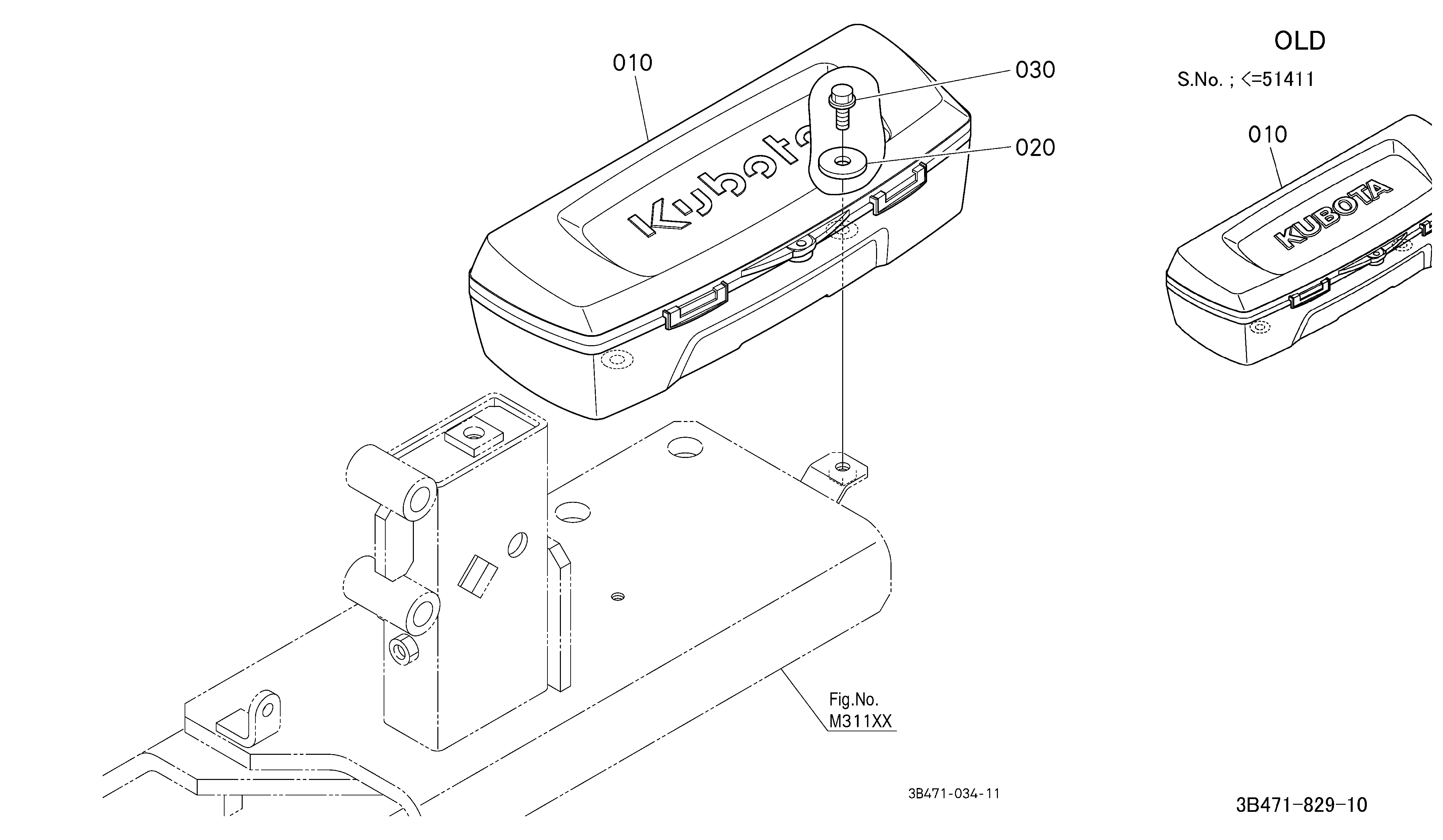

Exploded-view parts diagram "U07901 DIESEL EXHAUST FLUID TANK COVER KIT (COVER) [OPTION]" for the Kubota M5N-091HD12, Kubota M5N-091HD24, Kubota M5N-091HDRC12, Kubota M5N-091HDRC24, Kubota M5N-111HD12, Kubota M5N-111HD24, Kubota M5N-111HDRC12 and Kubota M5N-111HDRC24. 9 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | COVER,KIT *** 3B481-97400 3B481-97402 | 1 | $2,526.81 | |||
| 010 | COVER 3B881-05333 3B881-05334 | 1 | $215.59 | |||
| 020 | COVER 3B881-05340 | 1 | $353.57 | |||
| 030 | Flange Bolt 01754-50830 | 1 | $5.85 | |||
| 040 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
| 050 | STAY 3B881-05350 | 1 | $47.72 | |||
| 060 | NUT 3F760-53380 | 1 | $1.41 | |||
| 070 | PLATE 3B481-05320 | 1 | $65.71 | |||
| 080 | TRIM LH 5K250-61380 | 1 | $10.94 | |||
Showing 1 to 9 of 9 parts
