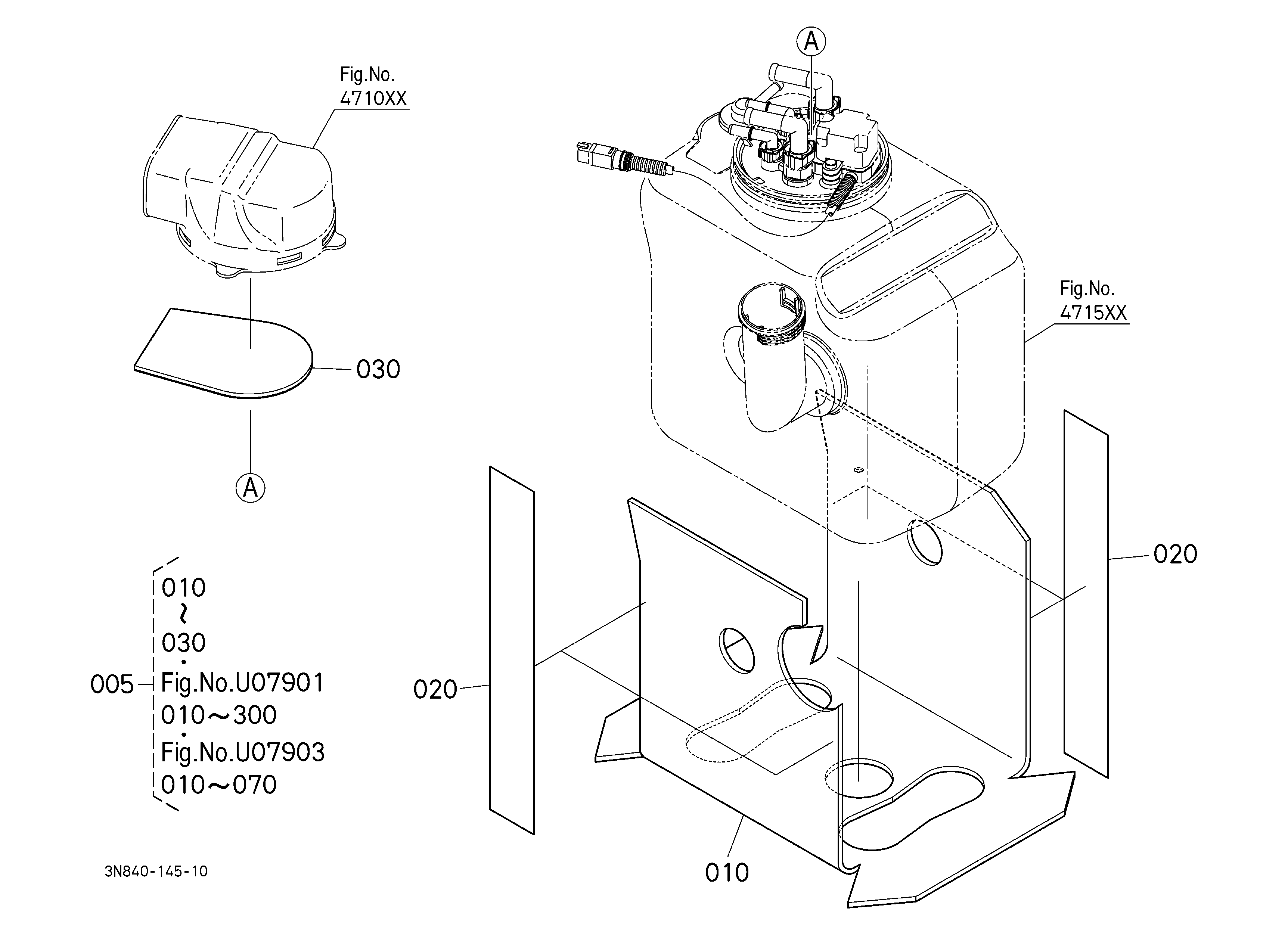

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | COVER,KIT(DEF,M6S,L) 3N850-97602 3N850-97604 Discontinued | 1 | $1,924.62 | |||
| 005 | COVER,KIT(DEF,M6S,L) *** 3N850-97600 | 1 | $2,705.37 | |||
| 010 | COVER(1,DEF,TANK) 3N820-05310 | 1 | $202.96 | |||
| 010 | COVER(1,DEF,TANK) 3N820-05312 | 1 | $183.22 | |||
| 020 | GROMMET 68493-42870 | 1 | $3.78 | |||
| 030 | RUBBER(DEFTANK,1) 3D900-05710 | 1 | $109.38 | |||
| 040 | FIXTURE(DEF,TANK) 3B281-05320 | 1 | $42.81 | |||
| 050 | COVER 3B291-05380 | 1 | $79.55 | |||
| 060 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 070 | COVER(2,DEF,TANK 3N860-05332 | 1 | $369.02 | |||
| 070 | COVER(2,DEF,TANK) 3N860-05330 | 1 | $411.62 | |||
| 080 | CUSHION 5H801-12120 | 1 | $8.12 | |||
| 090 | WASHER PR652-66360 | 1 | $3.66 | |||
| 100 | Flange Nut 66071-41030 02771-50120 | 1 | $3.15 | |||
| 110 | COVER(NOZZLE,FUEL) 3N850-04592 | 1 | $402.35 | |||
| 115 | TRIM(DEF,NOZZLECOVER 3N850-04612 | 1 | $19.15 | |||
| 120 | COVER(3,DEF TANK) 3N860-05350 | 1 | $421.52 | |||
| 130 | Bolt 01125-60835 01125-50835 | 1 | $2.17 | |||
| 140 | BOLT * 01127-50820 | 1 | $1.37 | |||
| 150 | TRIM,60 3Y205-17280 | 1 | $4.68 | |||
| 160 | STAY(COVER,DEF TANK) 3N860-05490 | 1 | $90.56 | |||
| 170 | TRIM 3N300-17280 | 1 | $4.84 | |||
| 180 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 190 | RUBBER(COVER,DEF TAN 3N860-05502 | 1 | $22.39 | |||
| 200 | RIVET 3L900-74300 | 1 | $3.29 | |||
| 210 | COVER(DEF TANK) 3N850-05610 3N850-05612 | 1 | $247.67 | |||
| 210 | COVER(DEF TANK) 3N850-05613 | 1 | $224.06 | |||
| 220 | TRIM 3R600-83710 | 1 | $9.21 | |||
| 225 | TRIM 3P903-17280 | 1 | $5.02 | |||
| 230 | BOLT 01127-50816 | 1 | $1.21 | |||
| 230 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 240 | CUSHION 3C581-75290 | 1 | $6.57 | |||
| 250 | LABEL(SCR TANK) 3S205-98220 | 1 | $6.95 | |||
| 260 | LABEL (DEF, US) *** 3B291-05140 | 1 | $4.01 | |||
| 260 | LABEL(DEF,FR) 3B292-05140 | 1 | $4.33 | |||
| 270 | LABEL FILLER, E4 3B291-98530 | 1 | $6.26 | |||
| 270 | LABEL(FILLER,E4, 3B292-98530 | 1 | $6.08 | |||
| 280 | CUSHION TD170-42050 | 1 | $37.44 | |||
| 290 | CUSHION T1170-42060 | 1 | $10.69 | |||
| 300 | CUSHION T3630-74490 | 1 | $2.62 | |||
Showing 1 to 40 of 40 parts
