Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET, FRONT K5935-98010 | 1 | $23.80 | |||
| 020 | M8 Flange Bolt 01754-50816 | 1 | $1.07 | |||
| 030 | Short Square Bolt K1122-91330 K1122-91332 | 1 | $0.60 | |||
| 040 | Flange Nut TA140-18310 02751-50080 | 1 | $3.77 | |||
| 050 | BRACKET, OCDC K5935-98020 | 1 | $188.33 | |||
| 060 | BOLT, FLANGE 01774-51050 | 1 | $4.51 | |||
| 100 | BRACKET, WIRE K5935-98030 | 1 | $49.89 | |||
| 130 | COMP LEVER, OCDC K5945-98040 | 1 | $54.97 | |||
| 140 | Rue Ring Cotter Pin K1211-91110 K1211-91112 | 1 | $1.16 | |||
| 150 | PLATE, CONNECTIN K5945-98050 | 1 | $27.14 | |||
| 160 | COVER(OCDC) K5613-98060 | 1 | $180.07 | |||
| 170 | Plain Washer 04011-00100 04011-50100 | 1 | $0.29 | |||
| 180 | LINK(COVER,ARM) K5663-98070 | 1 | $20.30 | |||
| 190 | PIN, SPRING 05411-00525 | 1 | $0.77 | |||
| 210 | PLATE(COVER,TOP) K5613-98080 | 1 | $70.04 | |||
| 220 | SPRING K7711-43440 K7711-43442 | 1 | $11.42 | |||
| 230 | STAY, WIRE K5945-98190 | 1 | $45.34 | |||
| 240 | LEVER, OCDC K5663-98112 | 1 | $62.07 | |||
| 250 | BOLT,SQUARE NECK 01611-50635 | 1 | $5.87 | |||
| 260 | Lock Nut (Locknut) W2336-06100 02552-50060 | 1 | $11.73 | |||
| 270 | PIN, JOINT 15213-12470 05122-50625 | 1 | $2.86 | |||
| 280 | PIN, SPLIT 05511-11615 05511-51615 | 1 | $0.20 | |||
| 290 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.61 | |||
| 300 | BRACKET (LEVER, K5663-98120 K5663-98122 | 1 | $34.92 | |||
| 310 | ASSY BRACKET, OC K5663-98200 | 1 | $94.22 | |||
| 320 | BRACKET (LEVER, K5663-98130 K5663-98132 | 1 | $27.47 | |||
| 330 | LABEL(PATENT) K5663-98180 | 1 | $4.95 | |||
| 360 | BOLT, M6 ROLLING K3011-61370 | 1 | $9.22 | |||
| 370 | WIRE, OCDC K5663-98144 K5663-98145 | 1 | $18.04 | |||
| 380 | TUBE(SPACER) K5663-98150 | 1 | $6.91 | |||
| 390 | PLATE(LOCKING) K5663-98162 | 1 | $30.88 | |||
| 400 | GRIP(HANDLE) K5663-98170 | 1 | $1.34 | |||
| 430 | SPRING, RETURN K1271-94160 K1271-94162 | 1 | $6.27 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-T95002-93484 T95002 MOWER MULCHING KIT (W/G.No.ZD3156) [OPTION]
View Diagram -
DIAG-T10902-93484 T10902 DISCHARGE COVER
View Diagram -

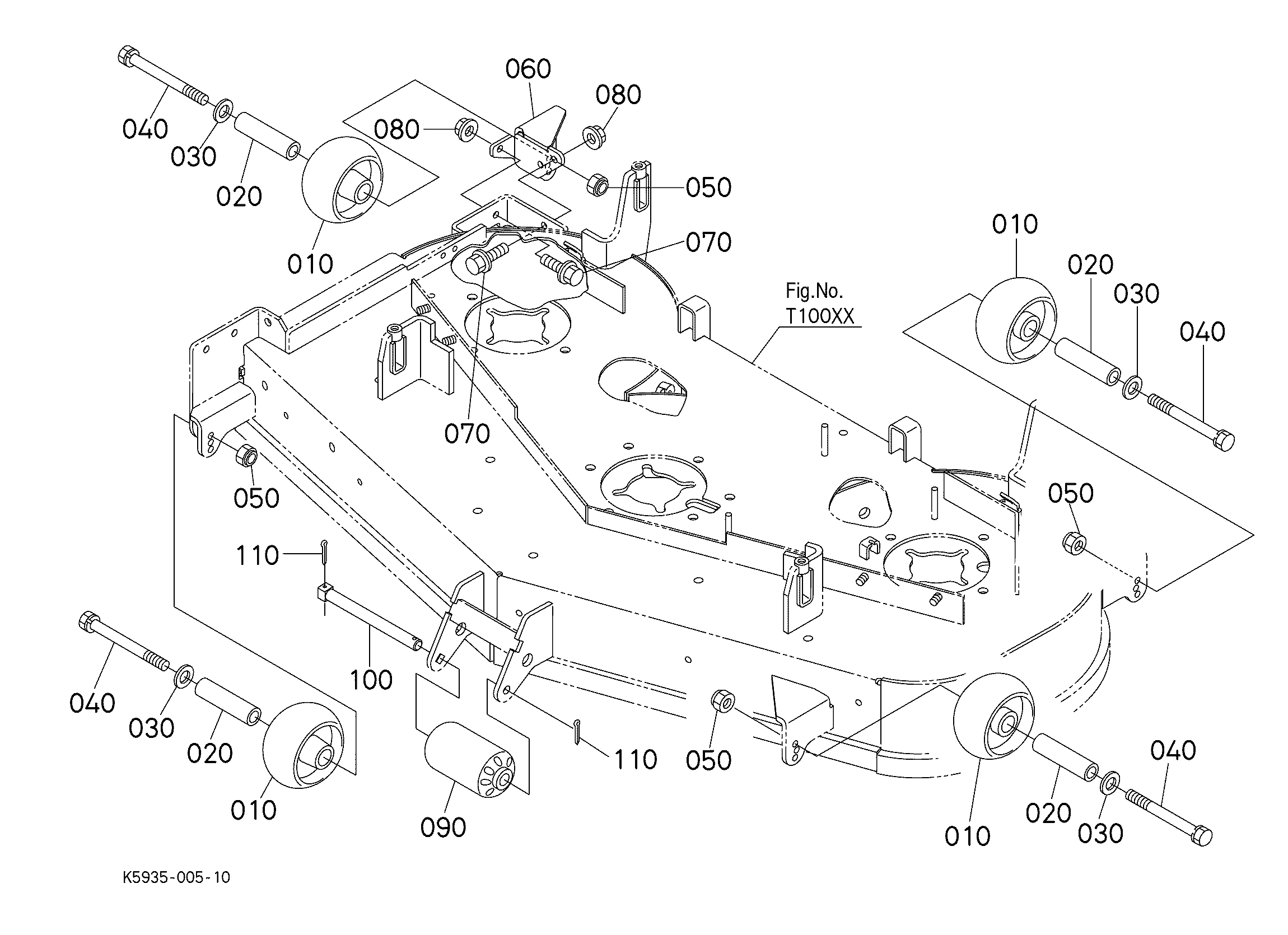

DIAG-T10502-93484 T10502 ANTI-SCALP ROLLER
View Diagram
