Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Access Ignition Key 400/M3662 | 1 | $27.82 | ||||
| Control panel mask 444/E0486 | 1 | $66.33 | ||||
| 1 | Plate Switches 444/E0408 | 1 | $31.14 | |||
| 2 | Toggle switch 444/E0143 | 1 | $44.72 | |||
| 3 | IGN SW ON-OFF-ON WITH 455 444/E0574 443/E4240 | 1 | $115.78 | |||
| 4 | Controller Base ECU - ATB 444/E0575 | 1 | $974.23 | |||
| 5 | SET SCREW M4 x 16 GRADE 8 (P461) 1315/9403N | 1 | $21.40 | |||
| 7 | Washer M4 1420/0004 | 1 | $0.15 | |||
| 8 | WASHER 1425/0004 1425/0004Z | 1 | $0.34 | |||
| 9 | MOTOR CONTROLLER 24V 1204 444/E0573 443/E0573 | 1 | $1,098.83 | |||
| 10 | WASHER M_6 PLAIN 1420/0006 | 1 | $0.23 | |||
| 11 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 12 | BOLT M_6 L-_16mm FLANGED HEX(KANBAN) 1315/0203 826/11362 | 1 | $6.47 | |||
| 13 | Emergency Stop 444/E0572 | 1 | $84.12 | |||
| 14 | (W) (P) GAUGE hourmeter 704/38000 | 1 | $73.23 | |||
| 15 | M6X20 BOLT 1315/0205 | 1 | $0.30 | |||
| 16 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $1.36 | |||
| 17 | 24v HORN 444/E0576 335/B4671 | 1 | $17.51 | |||
| 20 | BUZZER 24V 444/E0024 443/E0024 | 1 | $70.68 | |||
| 21 | Bolt M8 16-8.8 444/E0230 | 1 | $0.44 | |||
| 22 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 23 | WASHER M_8 HARDENED 1422/0007D | 1 | $14.84 | |||
| 24 | Sheath, pvc 444/E0062 | 1 | $2.83 | |||
| 28 | Bolt M8 20 444/E0212 | 1 | $1.13 | |||
| 29 | Bolt M8 25-8.8 444/E0241 | 1 | $0.71 | |||
| 30 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $0.20 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-
DIAG-T630-1-1-398273 T630-1-1 ELECTRICAL INSTALLATION CHASSIS SENSORS & SWITCHES
View Diagram -
DIAG-T640-1-1-398273 T640-1-1 CHASSIS CABLE HARNESS AND PLATFORM HRNESS
View Diagram -

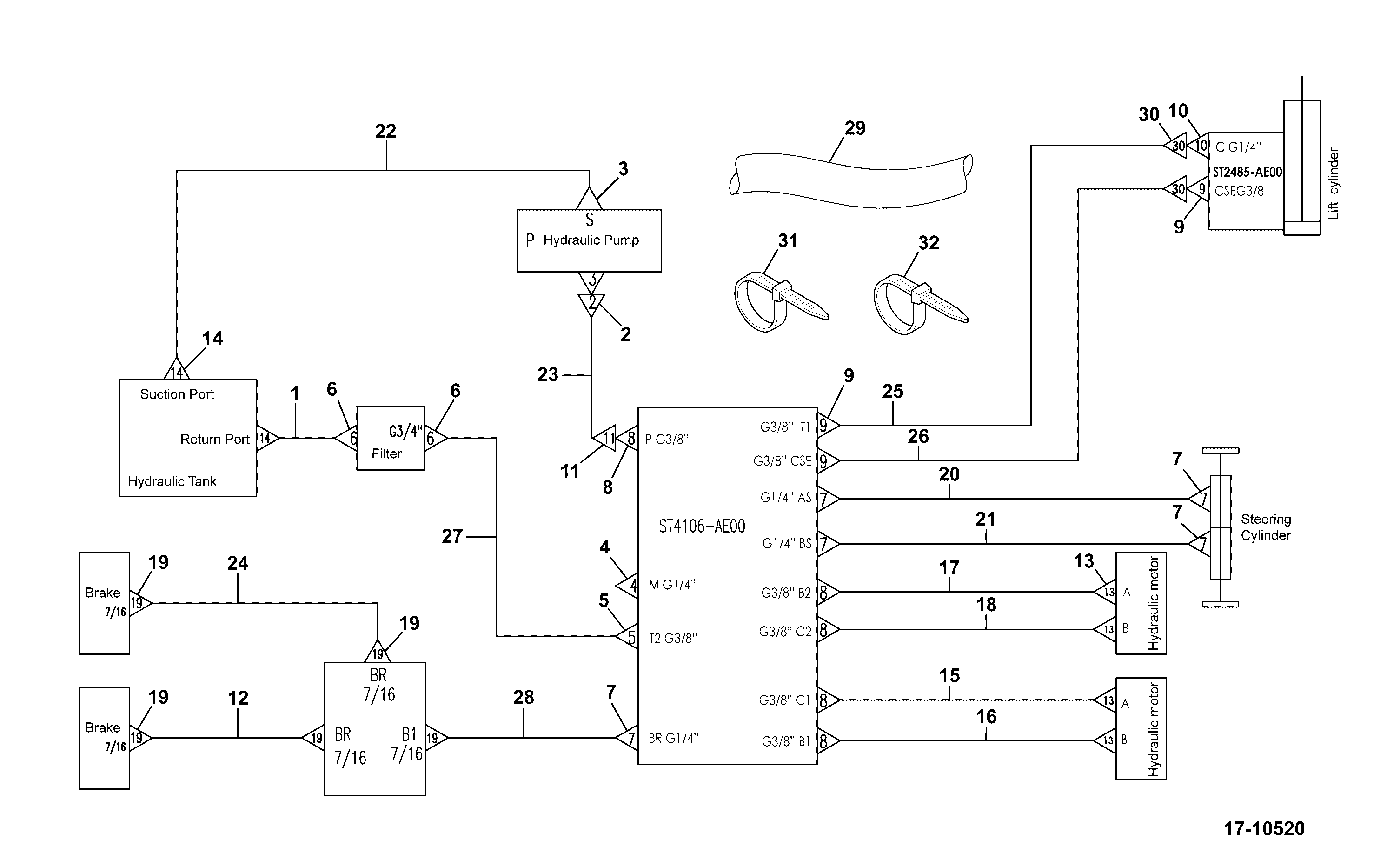

DIAG-T550-1-1-398273 T550-1-1 HYDRAULIC PIPING LAYOUT INSTALLATION AND FITTINGS
View Diagram
