Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Trojan Battery Lifting Strap Wide Hook 400/J3606 | 1 | $24.52 | ||||
| 1 | Battery charger 444/E0383 | 1 | $1,047.50 | |||
| 2 | BOLT M_6 L-_16mm FLANGED HEX(KANBAN) 1315/0203 826/11362 | 1 | $6.47 | |||
| 3 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 4 | WASHER M_6 PLAIN 1420/0006 | 1 | $0.23 | |||
| 5 | Fuse Holder cw 275A Fuse 444/E0386 | 1 | $50.08 | |||
| 6 | M4x12 SETSCREW 1315/9401D | 1 | $5.58 | |||
| 7 | WASHER 1425/0004 1425/0004Z | 1 | $0.34 | |||
| 8 | Washer M4 1420/0004 | 1 | $0.15 | |||
| 9 | DC CONTACTOR 24V 444/E0384 443/E0384 | 1 | $281.16 | |||
| 10 | SET SCREW M5 x 12 GRADE 8.8 (P511) 1315/0101 | 1 | $0.55 | |||
| 11 | WASHER M_5 SPRING 1425/0005Z | 1 | $0.81 | |||
| 12 | RESISTOR 100 OHMS/10W 444/E0388 443/E0388 | 1 | $8.33 | |||
| 13 | HNDL OF DISCON PWR PLUG 444/E0385 443/E0385 | 1 | $3.91 | |||
| 14 | DISCON POWER PLUG SB175 444/E0004 443/E0004 | 1 | $15.06 | |||
| 15 | MET SCREW M6 X 30MM LONG 1315/0208 | 1 | $0.30 | |||
| 16 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 18 | Sheath, pvc 444/E0062 | 1 | $2.83 | |||
| 19 | NUT 5/16in UNC HEX 444/E0256 1340/1601D | 1 | $0.21 | |||
| 20 | BATTERY TERMINAL COVER RE 444/E0493 443/E0493 | 1 | $1.67 | |||
| 21 | Battery cover (black) 444/E0387 | 1 | $1.02 | |||
| 22 | Battery 12V 150AH 443/E4269 729/T1275 | 1 | $1,047.80 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

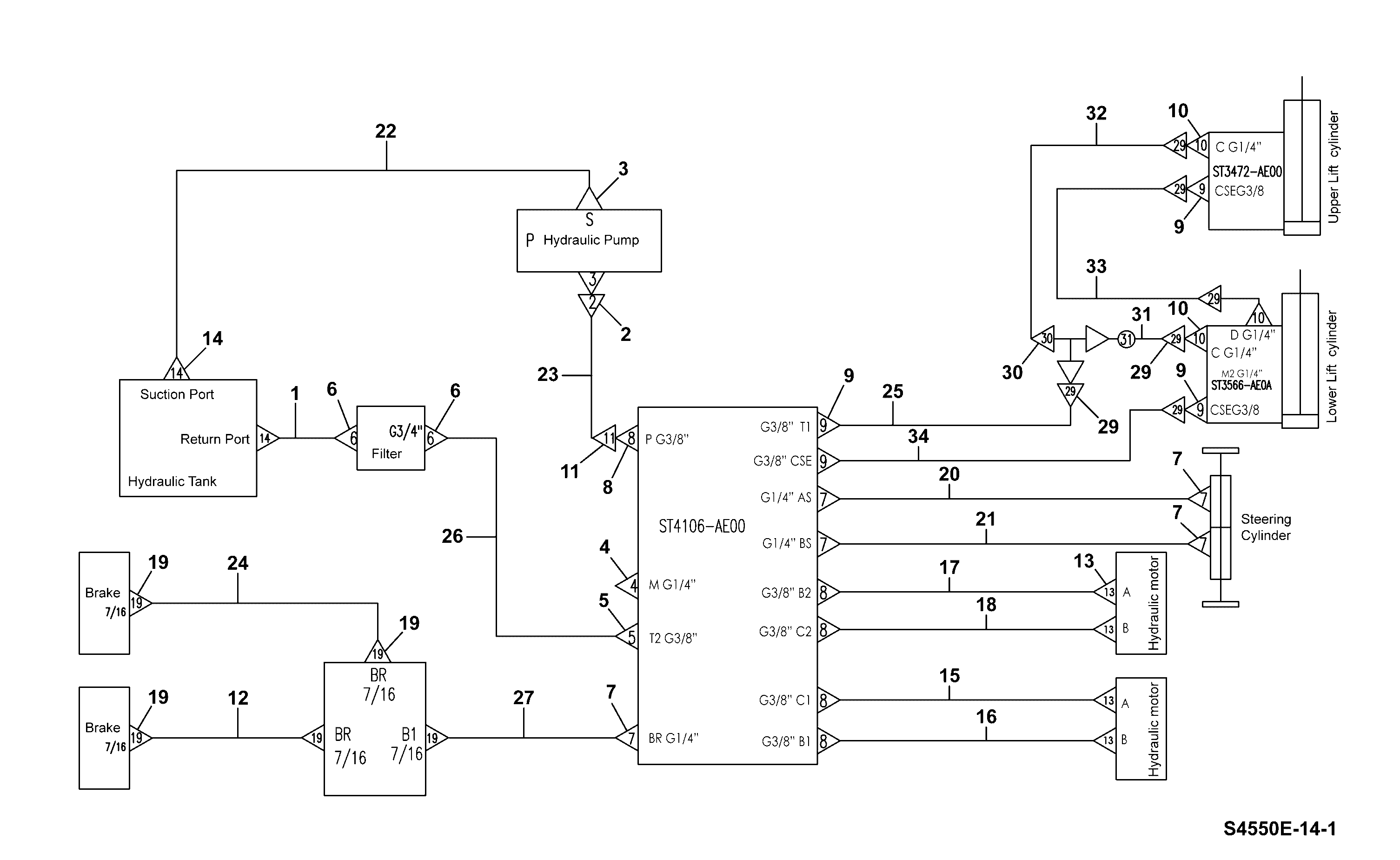

DIAG-T550-1-1-398296 T550-1-1 HYDRAULIC PIPING LAYOUT INSTALLATION AND FITTINGS
View Diagram -

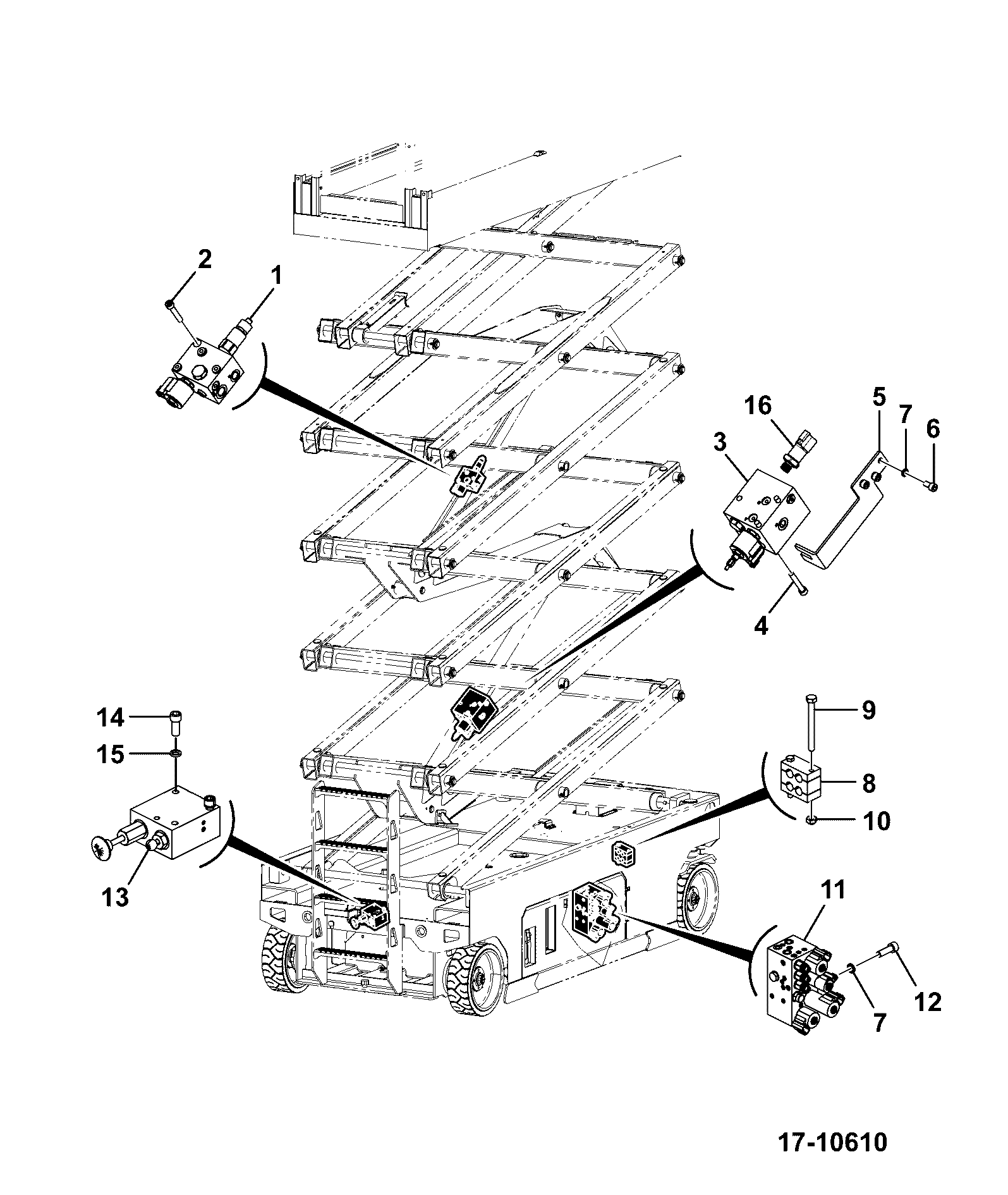

DIAG-T520-1-1-398296 T520-1-1 INSTALLATION OF HYDRAULIC COMPONENTS S4550E
View Diagram -
DIAG-T610-5-1-398296 T610-5-1 ELECTRICAL INSTALLATION BATTERY TRAY S4046E
View Diagram
