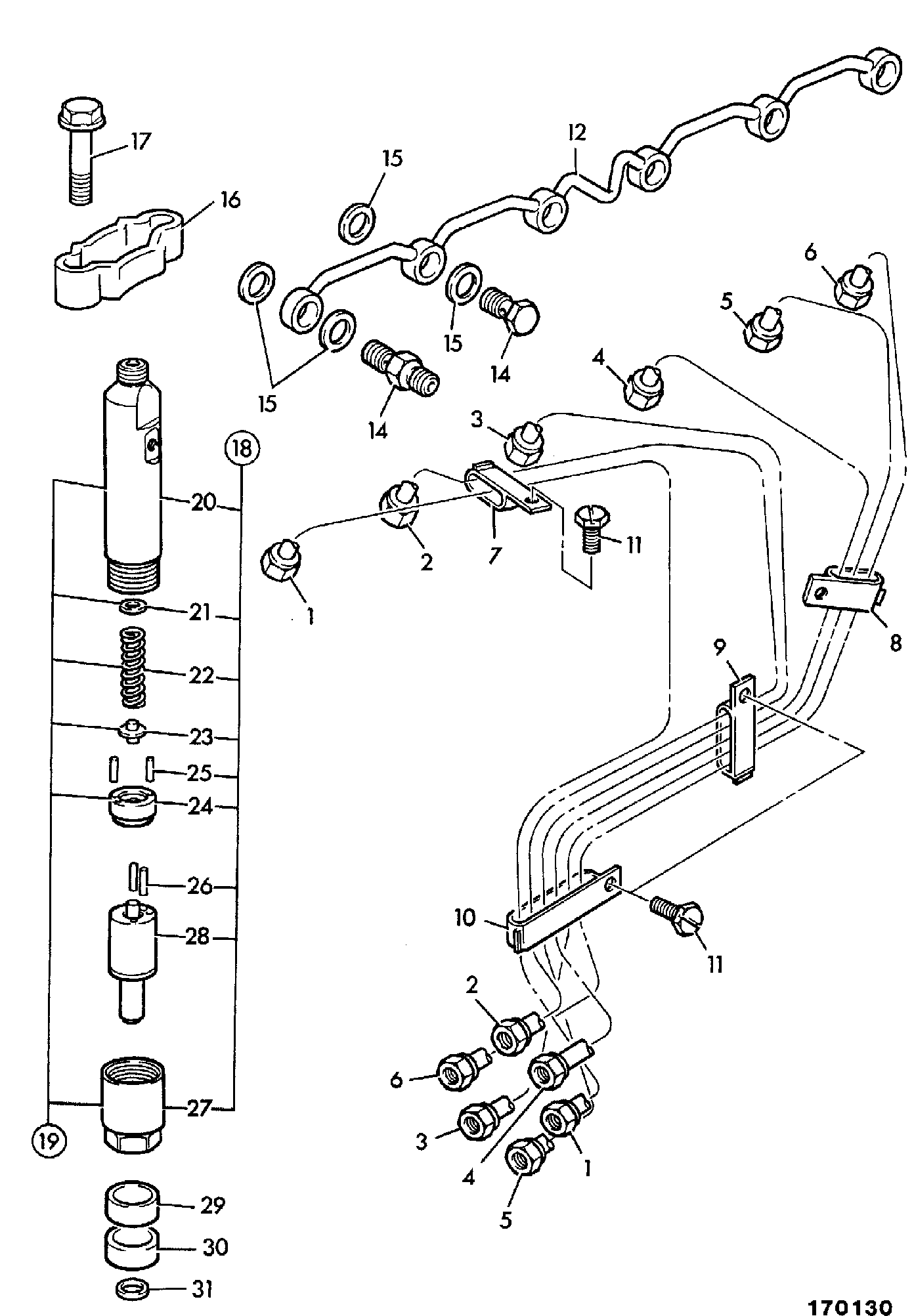

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE ASSEMBLY F/FI 02/200800 | 1 | $42.00 | |||
| 6 | DAMPER 02/100885 | 1 | $6.18 | |||
| 7 | PLATE 02/100188 | 1 | $5.92 | |||
| 8 | BOLT 02/291008 | 1 | $54.30 | |||
| 9 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 11 | NUT 826/00353 | 1 | $16.75 | |||
| 12 | OLIVE 02/100664 | 1 | $0.56 | |||
| 13 | NUT 02/100628 | 1 | $8.87 | |||
| 15 | ADAPTER 02/200688 | 1 | $9.90 | |||
| 16 | WASHER 02/291094 | 1 | $2.59 | |||
| 17 | PIPE ASSY -FUEL 02/200757 | 1 | $67.28 | |||
| 18 | CLIP 02/200359 | 1 | $54.71 | |||
| 19 | NUT 02/100318 | 1 | $13.52 | |||
| 20 | OLIVE 02/100322 | 1 | $0.58 | |||
| 21 | ADAPTOR 02/200758 | 1 | $32.60 | |||
| 22 | WASHER 02/130136 | 1 | $1.70 | |||
| 23 | BOLT 02/291016 | 1 | $2.72 | |||
| 24 | NUT 816/60104 | 1 | $12.69 | |||
| 25 | OLIVE 816/60105 | 1 | $0.00 | |||
| 26 | ELBOW 02/100348 | 1 | $34.10 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-T6-2-6-393492 T6-2-6 INJECTORS, FUEL & INJECTION PIPES YB BUILD
View Diagram -
DIAG-T6-4-4-393492 T6-4-4 FUEL PIPES, TANK TO FILTER, YB BUILD
View Diagram -

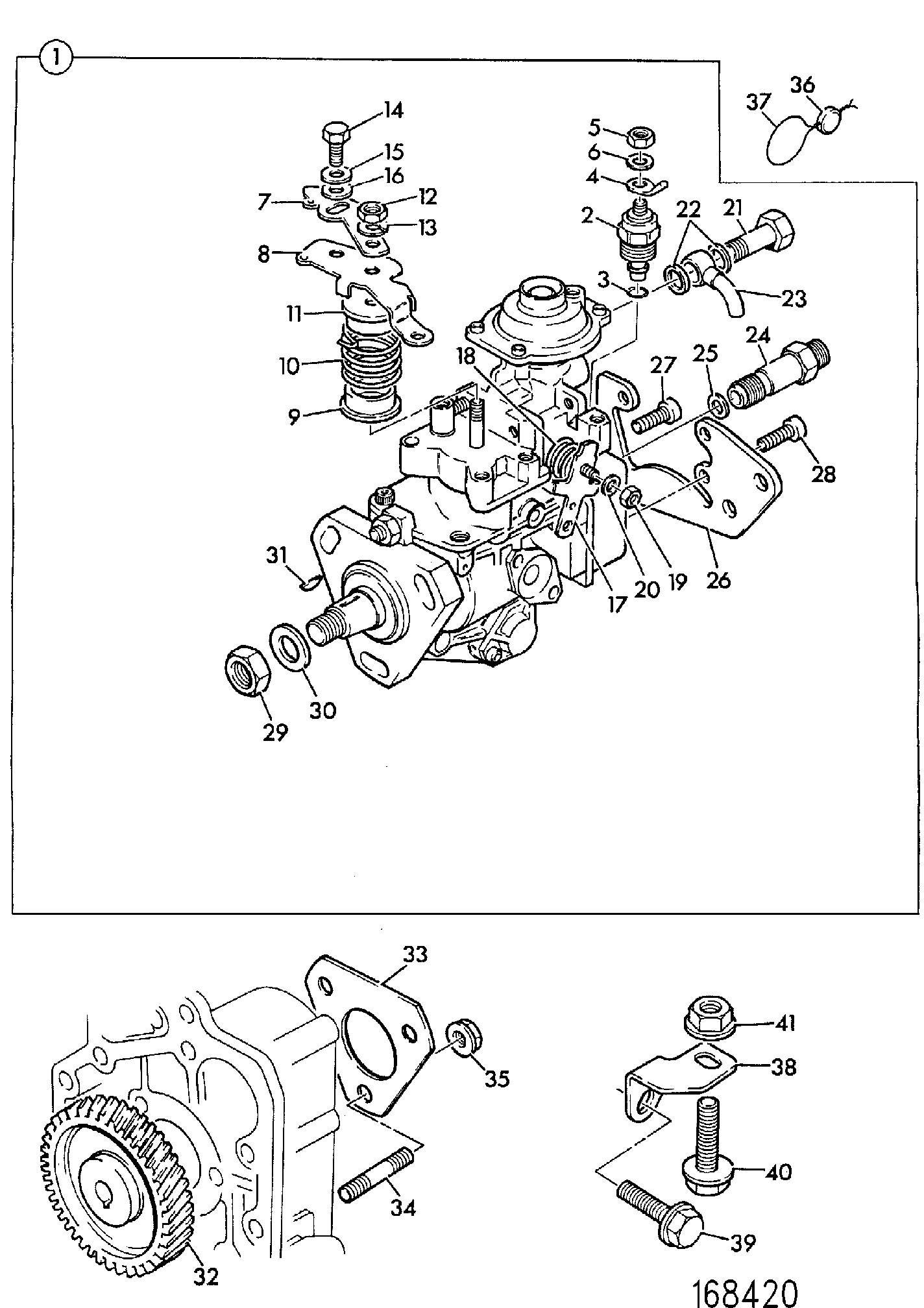

DIAG-T6-1-6-393492 T6-1-6 PUMP, FUEL INJECTION YB BUILD
View Diagram
