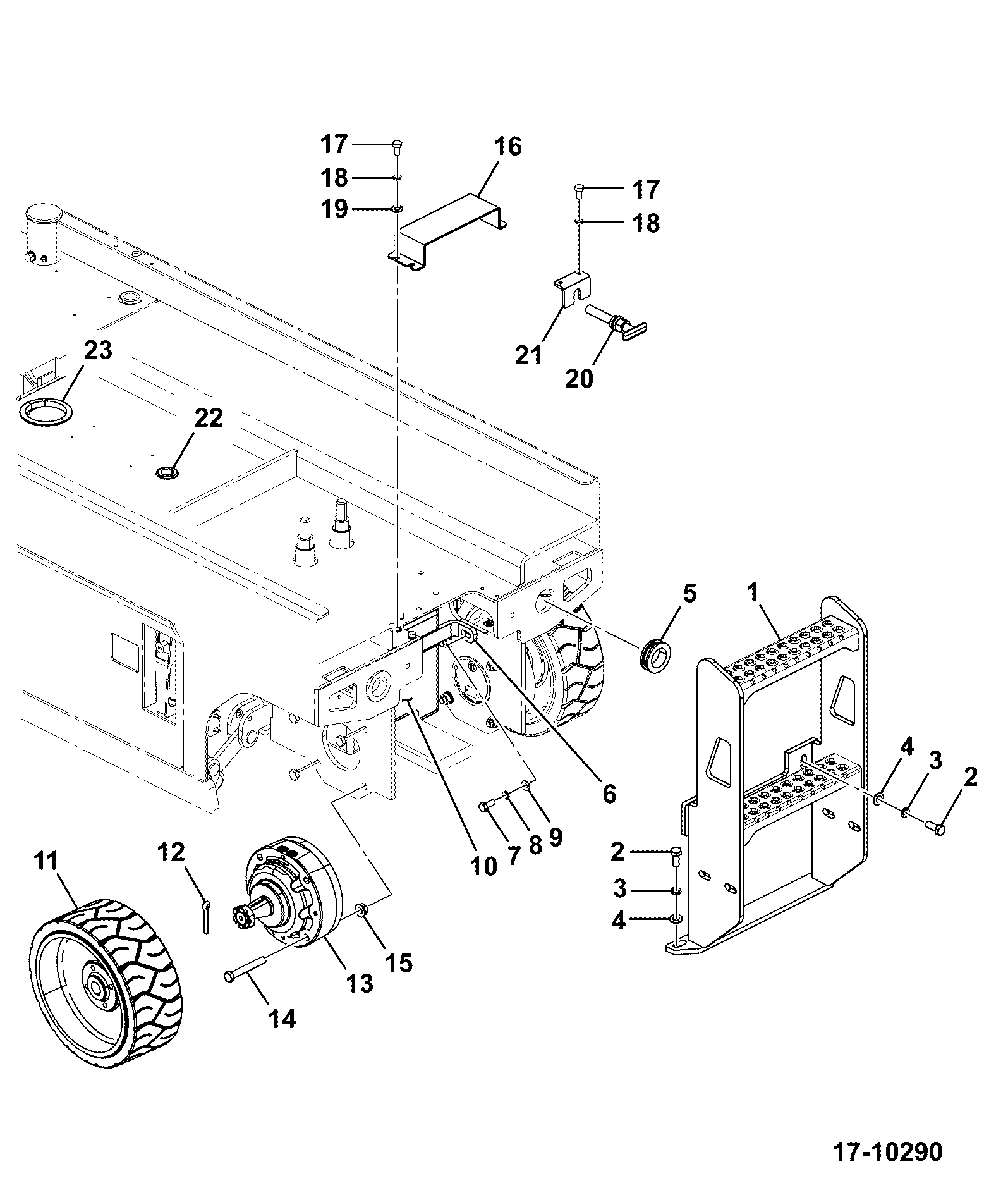

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Access Door Key 400/M3664 | 1 | $24.17 | ||||
| Access Ignition Key 400/M3662 | 1 | $27.82 | ||||
| Rubber Strip 400/00066 | 1 | $19.86 | ||||
| 1 | Chassis GTJZ0608SA 444/E0440 | 1 | $3,331.94 | |||
| 2 | WA LH Door, Lithium 400/00063 | 1 | $561.63 | |||
| 3 | HINGE PIN 444/E0441 443/E0441 | 1 | $3.79 | |||
| 4 | Pin 4?32-ZnD GB/T 91 444/E0149 | 1 | $0.21 | |||
| 5 | M20 HARD WASHER 1422/0012D | 1 | $16.30 | |||
| 7 | DOOR HANDLE 444/E0307 443/E0307 | 1 | $17.00 | |||
| 8 | Bolt M6 16-8.8 444/E0210 | 1 | $0.58 | |||
| 9 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 10 | WASHER M_6 PLAIN 1420/0006 | 1 | $0.20 | |||
| 11 | LH LATCH 444/E0308 443/E0308 | 1 | $36.78 | |||
| 12 | M6X30 BOLT (P710-T) 1315/3208D | 1 | $10.37 | |||
| 13 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 14 | STRIKER PIN 444/E0309 443/E0309 | 1 | $14.41 | |||
| 15 | (P) WASHER M12 HARDENED 1422/0009D | 1 | $4.23 | |||
| 16 | PLAIN NUT M12 1370/0401Z 1370/0401D | 1 | $2.03 | |||
| 17 | SUPPORT BLOCK 444/E0002 443/E0002 | 1 | $11.39 | |||
| 18 | SHIM 2MM 444/E0334 443/E0334 | 1 | $1.73 | |||
| 19 | SHIM 1MM 444/E0347 443/E0347 | 1 | $1.39 | |||
| 20 | M6X20 BOLT 1315/0205 | 1 | $0.33 | |||
| 23 | BRACKET 444/E0336 443/E0336 | 1 | $4.96 | |||
| 30 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 31 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 32 | BOLT M10 L-_30mm G-_8.8 1315/3408D | 1 | $24.59 | |||
| 33 | Bolt M6 12 444/E0231 | 1 | $0.21 | |||
| 34 | Bolt M6 20-8.8 444/E0213 | 1 | $0.55 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-
DIAG-T140-1-1-398263 T140-1-1 BATTERY TRAY ASSEMBLY INSTALLATION
View Diagram -
DIAG-T150-1-1-398263 T150-1-1 HYDRAULIC TRAY ASSEMBLY INSTALLATION
View Diagram -
DIAG-T130-1-1-398263 T130-1-1 BRAKING SYSTEM AND LADDER AND WHEEL
View Diagram
