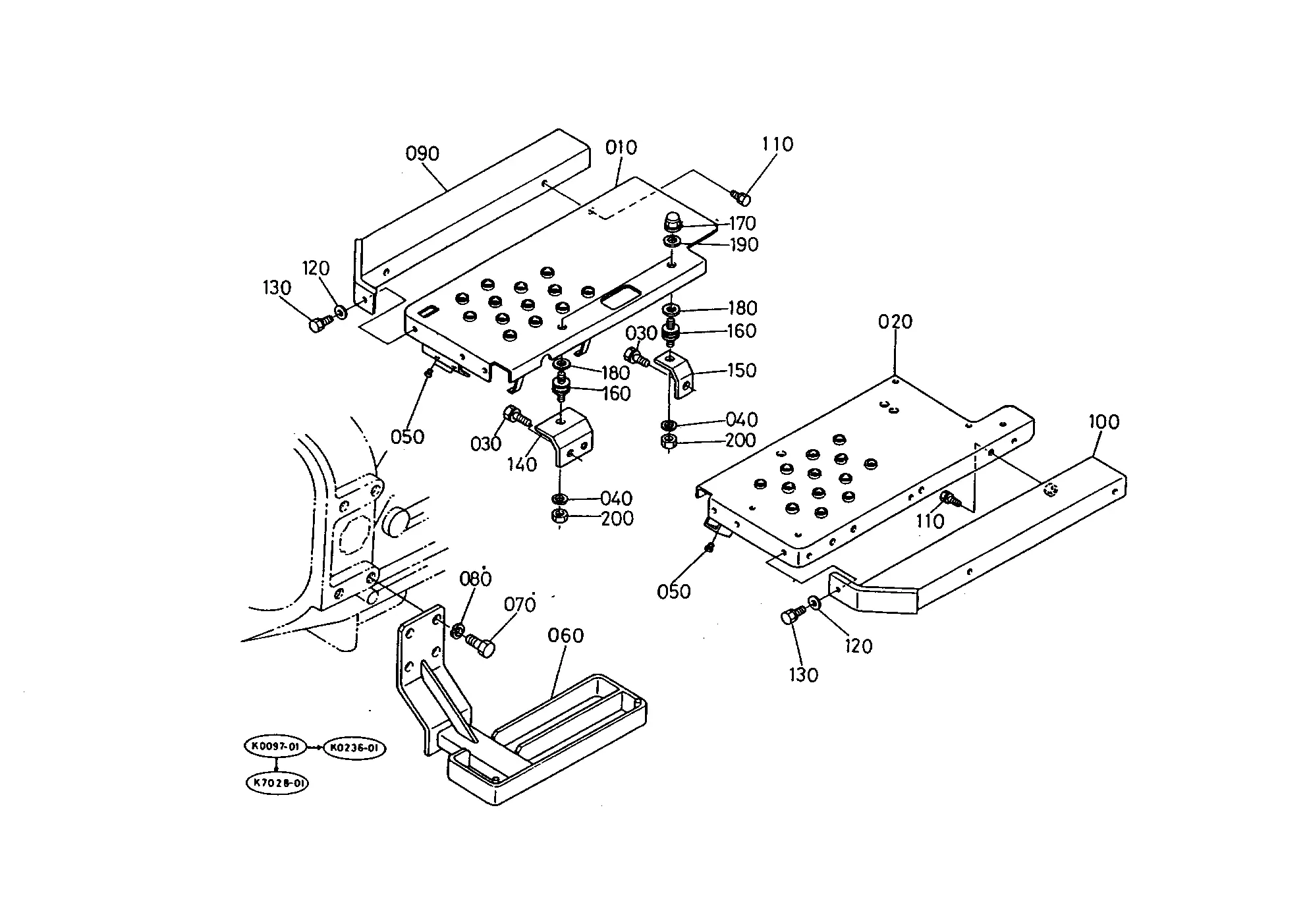

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | DRAWBAR, ASSY SW 35593-89100 Discontinued | 1 | $1,321.41 | |||
| 020 | DRAWBAR (23 LBS. 36330-89120 | 1 | $397.83 | |||
| 030 | CROSSMEMBER 35593-89320 Discontinued | 1 | $847.56 | |||
| 040 | Washer 04013-60600 04013-50200 | 1 | $0.60 | |||
| 050 | PLATE ** 36330-89330 36330-89332 Discontinued | 1 | $96.70 | |||
| 060 | BOLT 01173-52045 | 1 | $8.72 | |||
| 070 | BOLT 01173-52055 | 1 | $8.79 | |||
| 080 | NUT 02174-60200 02174-50200 | 1 | $3.37 | |||
| 090 | Spring Washer 04512-50200 04512-70200 | 1 | $1.05 | |||
| 100 | PIN,DRAWBAR 33251-89340 33251-89343 | 1 | $24.65 | |||
| 110 | PIN SET *** 33251-89312 33251-89310 | 1 | $11.82 | |||
| 120 | Cotter Pin (Split Pin) 05511-50540 | 1 | $0.60 | |||
| 130 | PIN, JOINT 05122-51885 | 1 | $15.69 | |||
| 140 | Replacement Pin 05515-51600 | 1 | $1.36 | |||
| 150 | PIN 36200-89360 | 1 | $40.95 | |||
| 170 | PIN, SPLIT 05511-50645 | 1 | $1.06 | |||
| 180 | BOLT 01173-51645 | 1 | $3.34 | |||
| 190 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
| 200 | Washer 3J099-16076 04013-50160 | 1 | $0.60 | |||
Showing 1 to 19 of 19 parts
