Kubota L4740GST-3 T13002 POSITION CONTROL LEVER (WITH DRAFT) (W/G No.L8375) [OPTION] Parts Diagram

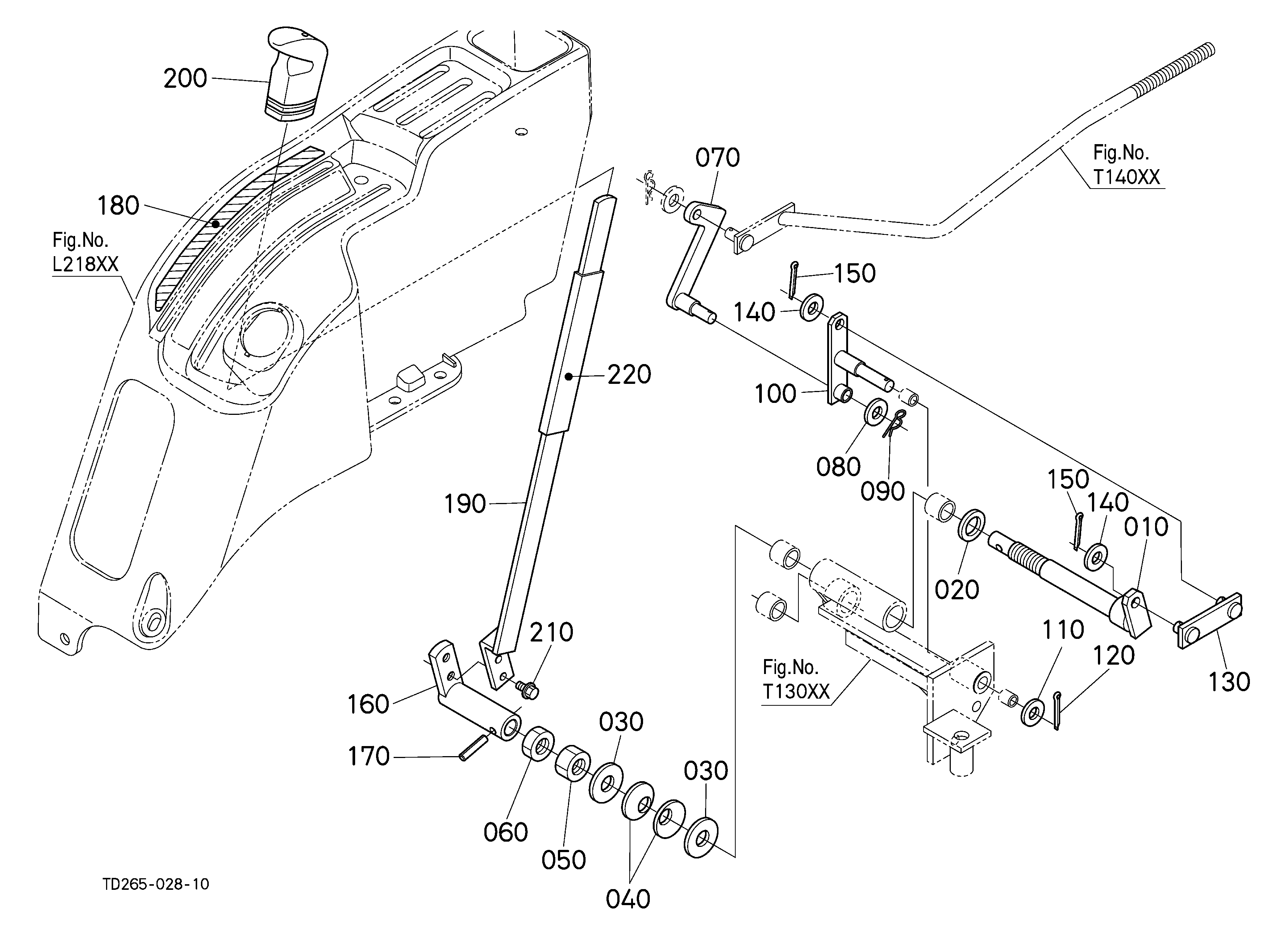

Exploded-view parts diagram "T13002 POSITION CONTROL LEVER (WITH DRAFT) (W/G No.L8375) [OPTION]" for the Kubota L4740GST-3 and Kubota L4740HST-3. 25 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | STAY, DRAFT LINK TD270-38110 | 1 | $217.24 | |||
| 020 | BUSH 41081-75330 08511-01615 | 1 | $6.60 | |||
| 030 | BUSH 08511-00810 | 1 | $5.63 | |||
| 040 | SHAFT, DRAFT TA040-38122 | 1 | $43.65 | |||
| 050 | Plain Washer (Flat Washer) 04013-50140 | 1 | $0.60 | |||
| 060 | SPRING, PLATE 34260-36880 | 1 | $5.05 | |||
| 070 | NUT 02174-50140 | 1 | $1.51 | |||
| 080 | NUT 02172-60140 02172-50140 | 1 | $1.51 | |||
| 090 | LINK, DRAFT TD270-38140 | 1 | $41.70 | |||
| 100 | PIN, SPRING 05411-00525 | 1 | $1.31 | |||
| 110 | Gasket 04714-00300 | 1 | $1.51 | |||
| 120 | LINK, DRAFT TD270-38150 | 1 | $41.70 | |||
| 130 | BUSH 31351-16840 08511-01612 | 1 | $6.60 | |||
| 140 | LINK, DRAFT TD270-38160 | 1 | $55.57 | |||
| 160 | Plain Washer (Flat Washer) 04011-00160 04011-50160 | 1 | $0.60 | |||
| 170 | Circlip Retaining Ring (Snap Ring) 04612-10160 04612-00160 | 1 | $0.80 | |||
| 180 | Washer 04011-50080 04012-50080 | 1 | $0.26 | |||
| 190 | PIN, SPLIT 05511-20215 05511-50215 | 1 | $0.14 | |||
| 200 | LEVER, POSITION TD270-38210 | 1 | $49.37 | |||
| 220 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 230 | BOLT 01133-51065 | 1 | $2.93 | |||
| 240 | LEVER, DRAFT TD170-38230 | 1 | $55.58 | |||
| 250 | GRIP,LEVER TD060-36140 TD060-36142 | 1 | $30.78 | |||
| 260 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 270 | TUBE, LEVER TA040-36130 TA040-36132 | 1 | $21.43 | |||
Showing 1 to 25 of 25 parts
