| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BOLT, HEX * 75599-01112 | 1 | $0.90 | ||||
| 010 | ROPS ASSY 3A011-87000 Discontinued | 1 | $0.16 | |||
| 020 | BOLT, HEX 75599-03325 | 1 | $1.87 | |||
| 030 | Plated Lock Washer 60009-60602 75599-33013 | 1 | $0.31 | |||
| 050 | 1/4 Lock Washer E7194-44710 75599-33011 | 1 | $0.15 | |||
| 060 | BOLT9/16-18UNF*1 75599-04625 | 1 | $5.20 | |||
| 070 | WASHER, SPRING 75599-33016 | 1 | $0.51 | |||
| 080 | INST MNL 3A011-95170 Discontinued | 1 | $17.18 | |||
| 090 | RUBBER, FENDER 3A011-87290 | 1 | $13.18 | |||
| 100 | RUBBER, FENDER 3A011-87340 | 1 | $13.18 | |||
| 110 | SPACER 38240-29940 | 1 | $3.67 | |||
| 120 | BOLT 32530-71980 | 1 | $31.13 | |||
| 130 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
| 140 | Nut Fastener 02076-50160 | 1 | $2.50 | |||
| 150 | COLLAR*** 52450-63660 | 1 | $9.97 | |||
| 150 | Plain Washer 04015-60100 04015-70100 | 1 | $1.05 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

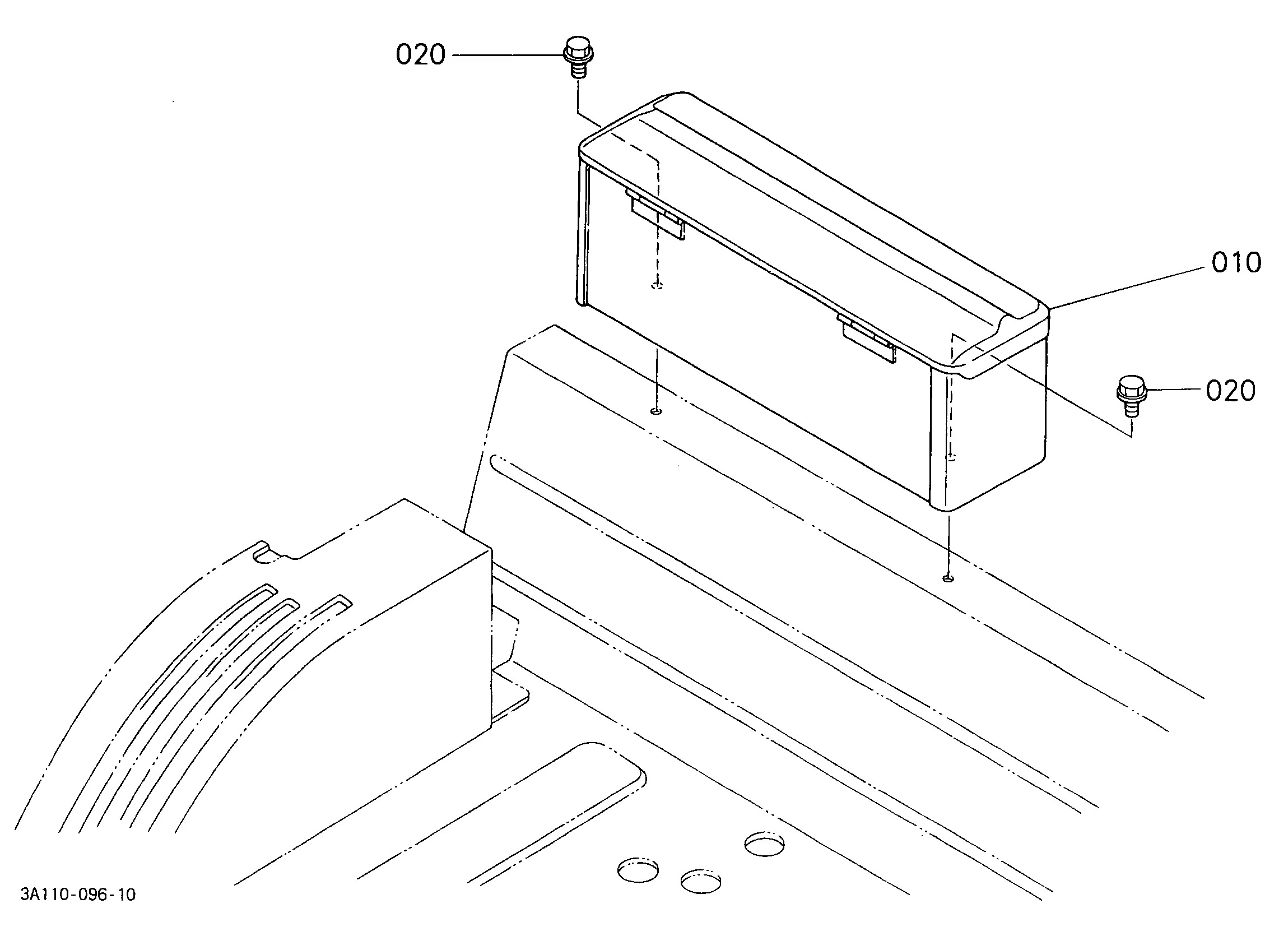

DIAG-T12903-85703 T12903 TOOL BOX [NEW TYPE]
View Diagram -
DIAG-T13002-85703 T13002 ROPS [CA][OLD TYPE]
View Diagram -

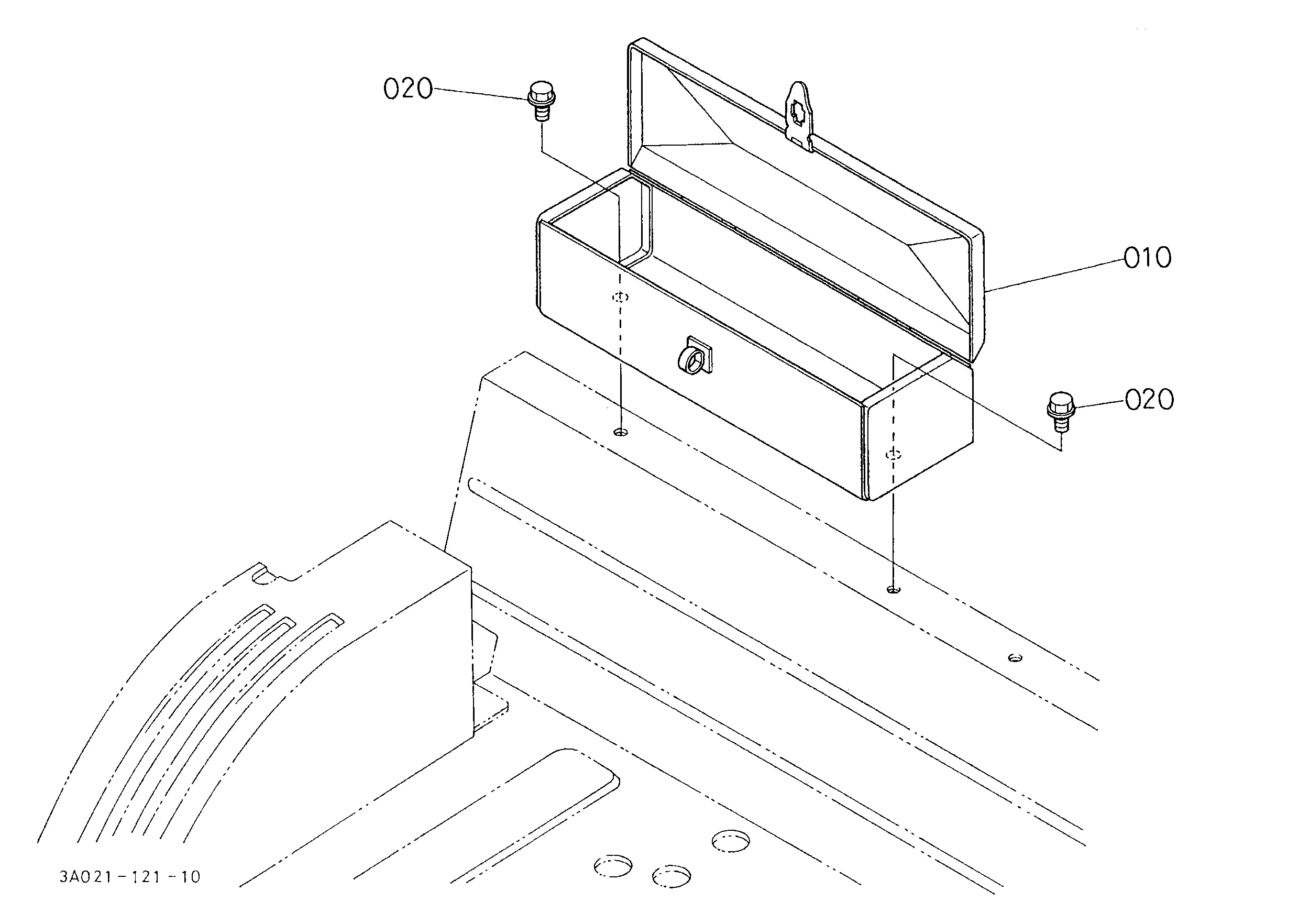

DIAG-T12902-85703 T12902 TOOL BOX [OLD TYPE]
View Diagram
