Scroll to zoom Click a part # to view details

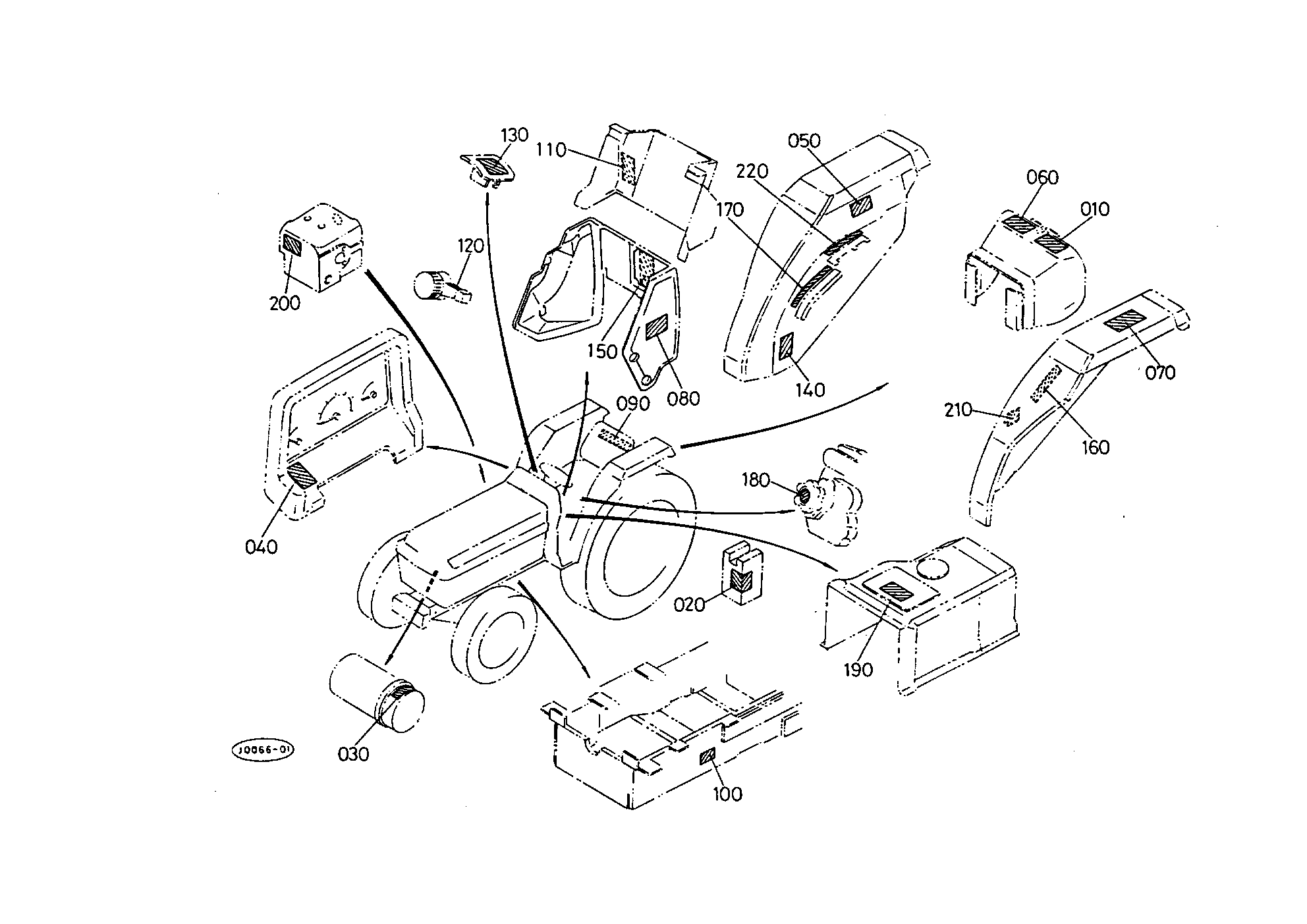

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | MARK, MODEL RH 32430-65100 Discontinued | 1 | $108.88 | |||
| 020 | MARK, MODEL LH 32430-65110 32480-65210 | 1 | $265.39 | |||
| 030 | LABEL,SIDE R 31351-65240 31351-65242 Discontinued | 1 | $6.64 | |||
| 040 | LABEL,SIDE LH 31351-65250 31351-65252 | 1 | $8.74 | |||
| 050 | LABEL, HANDLE 32430-65270 Discontinued | 1 | $1.66 | |||
| 060 | MASCOT 31351-65180 | 1 | $26.03 | |||
| 070 | Washer 04013-50040 | 1 | $0.31 | |||
| 080 | WASHER, SPRING 04512-60040 04512-50040 | 1 | $0.60 | |||
| 090 | Hardware Nut 32530-19290 02054-50040 | 1 | $0.36 | |||
| 100 | EMBLEM, LIGHT GR 32430-65320 32430-65323 | 1 | $60.76 | |||
| 110 | SCREW, SELF TAPP 38430-18270 Discontinued | 1 | $1.04 | |||
| 120 | WASHER, THICK 04015-50050 | 1 | $0.36 | |||
| 130 | MARK, KUBOTA 32430-65330 Discontinued | 1 | $26.67 | |||
| 130 | MARK, KUBOTA 32530-65330 | 1 | $47.60 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-T13101-85300 T13101 LABEL 2 EXCEPT [FR]
View Diagram -

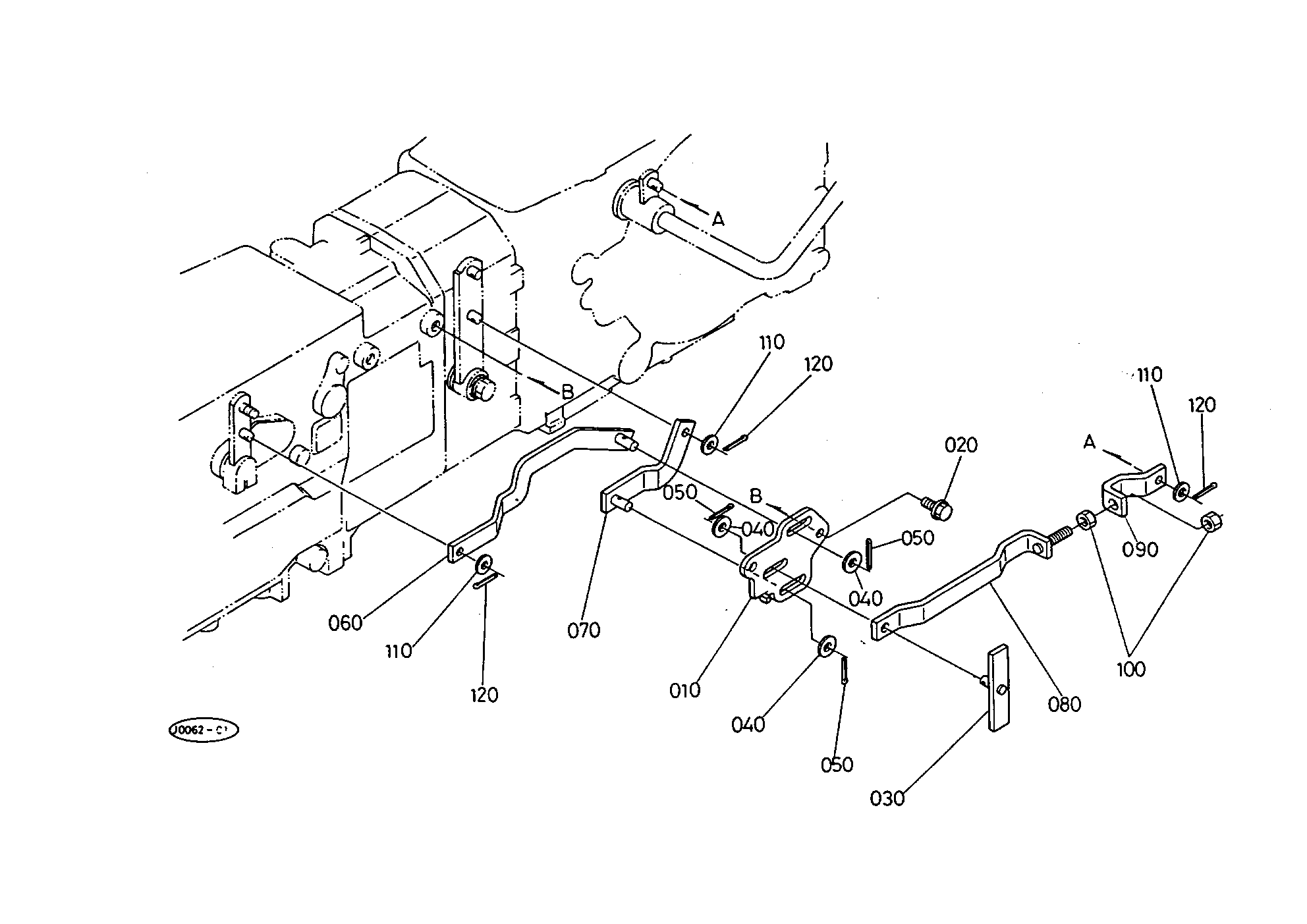

DIAG-T06600-85300 T06600 SPEED CHANGE INTERLOCK
View Diagram -
T04101 SWITCH AND REGULATOR EXCEPT [FR]
View Diagram
