Scroll to zoom Click a part # to view details

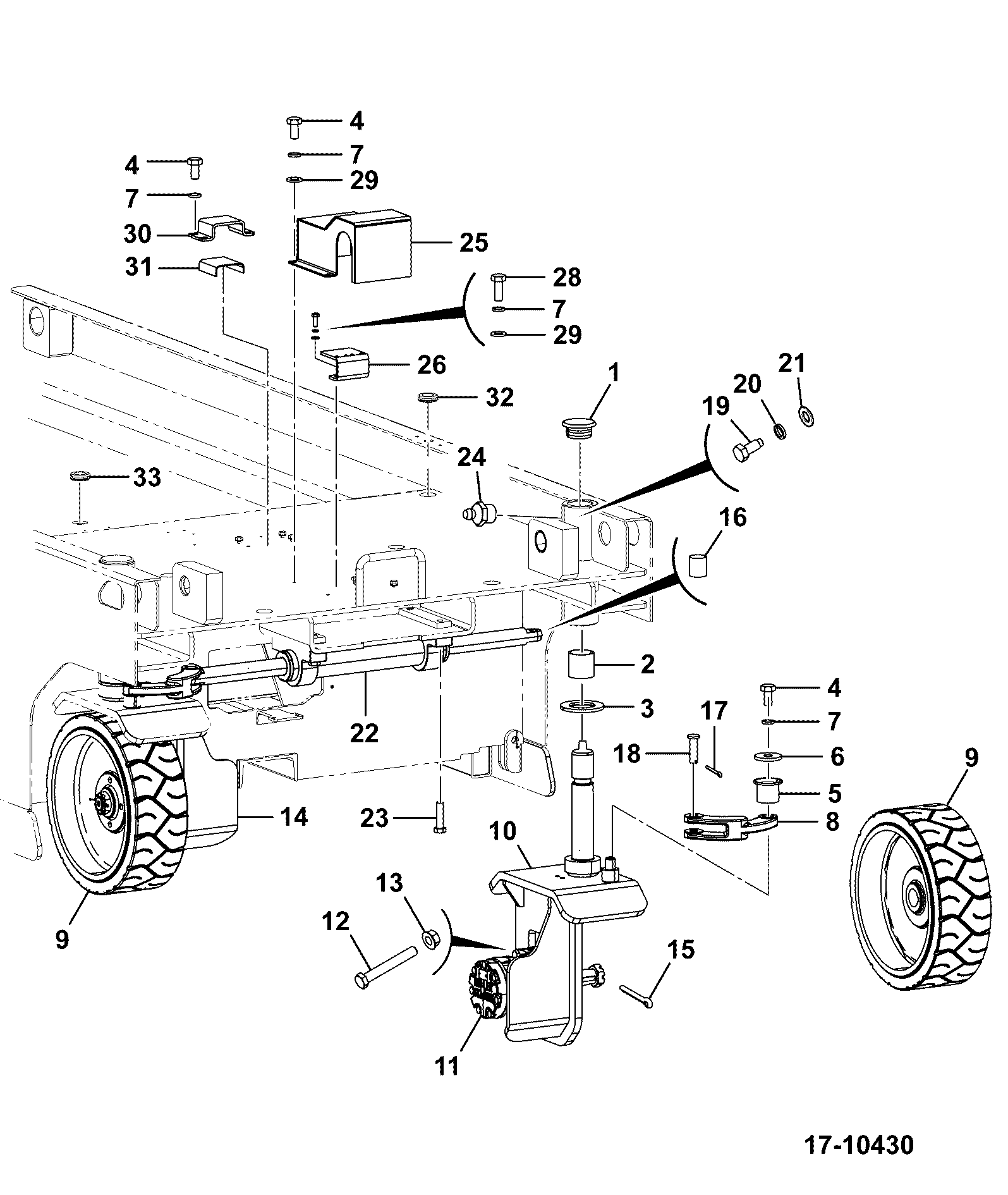

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ABI SCISSOR WHEEL DIA.380 444/E0264 443/E0264 | 1 | $351.39 | ||||
| Bolt M8 20 444/E0212 | 1 | $1.13 | ||||
| Bolt, special m12 444/E0268 | 1 | $7.07 | ||||
| BRACKET 444/E0030 443/E0030 | 1 | $16.04 | ||||
| Brake assembly 444/E0340 | 1 | $1,252.83 | ||||
| Counterweight, blocks 444/E0269 | 1 | $750.52 | ||||
| HANDLE emergency with cable 444/E0343 | 1 | $102.90 | ||||
| PAINTED WA LADDER 444/E0310 401/F4491 | 1 | $142.88 | ||||
| PLAIN NUT M12 1370/0401Z 1370/0401D | 1 | $2.03 | ||||
| Star handle 444/E0337 | 1 | $6.05 | ||||
| 1 | PAINTED LADDER ASSLY 444/E0490 401/D9422 | 1 | $239.28 | |||
| 2 | Bolt M12 30-8.8-ZnD GB/T 444/E0261 | 1 | $0.68 | |||
| 3 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 4 | (P) WASHER M12 HARDENED 1422/0009D | 1 | $4.23 | |||
| 5 | Grommet 444/E0338 | 1 | $5.61 | |||
| 6 | Bracket support 444/E0495 | 1 | $35.86 | |||
| 7 | Bolt M10 25-8.8-ZnD GB/T 5783 444/E0218 | 1 | $0.30 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 10 | Counterweight 444/E0494 | 1 | $438.99 | |||
| 11 | ABI SCISSOR WHEEL DIA.306 444/E0450 443/E0450 | 1 | $228.07 | |||
| 12 | Pin, 4x63 444/E0339 | 1 | $0.21 | |||
| 13 | ABI HYDRAULIC BRAKE 444/E0136 443/E0136 | 1 | $1,996.52 | |||
| 14 | Bolt, 1/2-13UNC 444/E0341 | 1 | $0.65 | |||
| 15 | Spiralock nut 1/2"-13UNC 444/E0215 | 1 | $1.02 | |||
| 16 | COVER 444/E0342 443/E0342 | 1 | $8.36 | |||
| 17 | Bolt M8 16-8.8 444/E0230 | 1 | $0.44 | |||
| 18 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 19 | WASHER M_8 HARDENED 1422/0007D | 1 | $14.84 | |||
| 20 | EMERGENCY FLEXIBLE CABLE 444/E0451 443/E0451 | 1 | $39.53 | |||
| 21 | BRACKET 444/E0348 443/E0348 | 1 | $6.05 | |||
| 22 | Grommet, Line routing 444/E0351 | 1 | $6.29 | |||
| 23 | Protection Cover 444/E0103 | 1 | $8.94 | |||
Showing 1 to 33 of 33 parts
