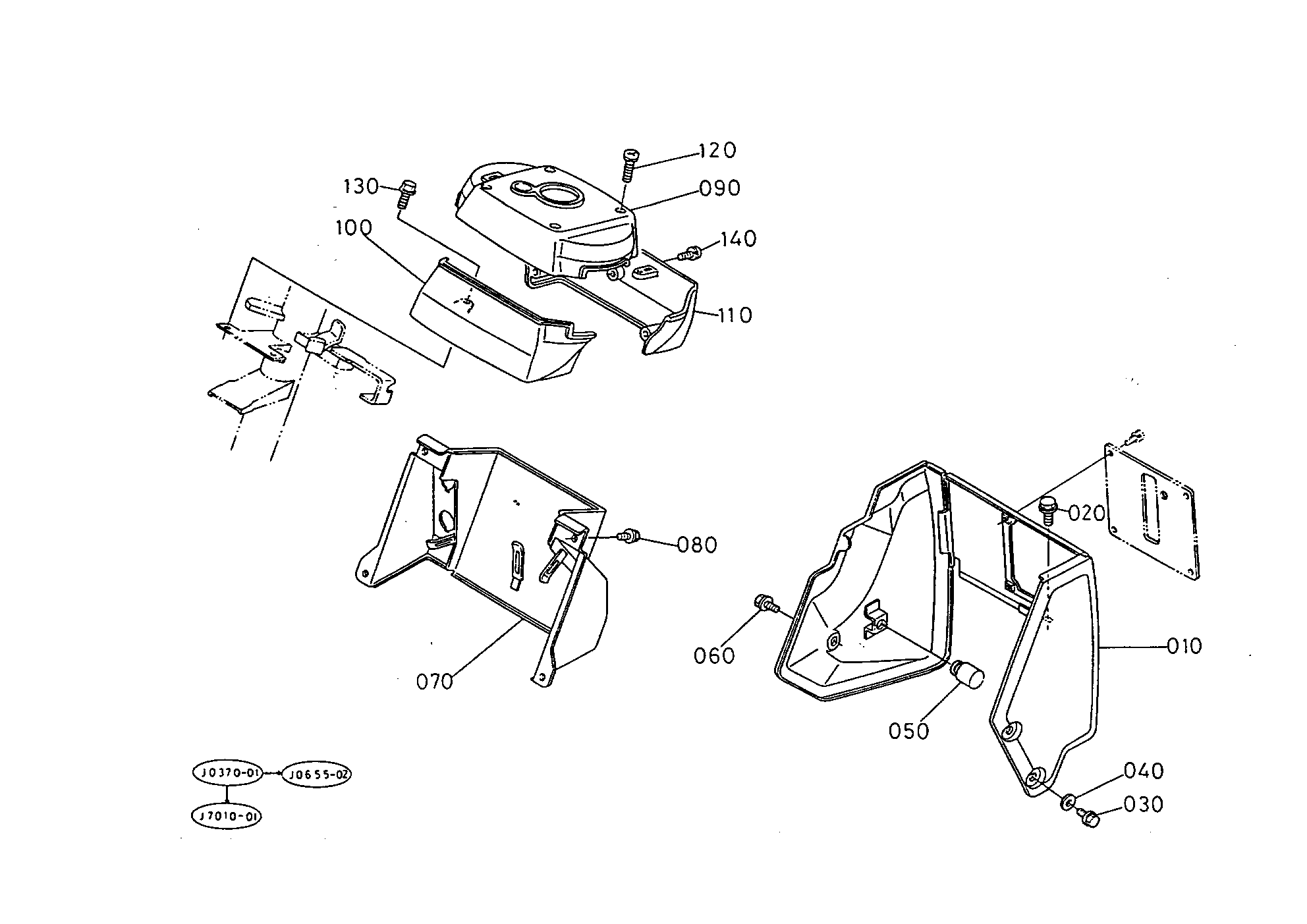

Kubota L2850DT T12401 MAIN AND PTO CHANGE COVER [OLD TYPE] Parts Diagram
Exploded-view parts diagram "T12401 MAIN AND PTO CHANGE COVER [OLD TYPE]" for the Kubota L2850DT and Kubota L2850F. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COVER, PTO CHANG 32480-24020 32431-24020 Discontinued | 1 | $124.43 | |||
| 020 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 030 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 050 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 060 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.60 | |||
| 080 | FUSHION 31351-24330 | 1 | $2.18 | |||
| 120 | BOARD SWITCH 32470-24410 30400-24410 Discontinued | 1 | $51.27 | |||
| 140 | COVER, UPPER CHA 31351-24420 Discontinued | 1 | $92.32 | |||
| 150 | COVER, FRONT CHA 31351-24430 Discontinued | 1 | $129.89 | |||
| 160 | COVER, REAR CHAN 31351-24440 31351-24404 | 1 | $411.44 | |||
| 170 | SCREW 31351-24450 | 1 | $1.41 | |||
| 180 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 190 | SCREW 31351-24460 36919-56590 | 1 | $1.07 | |||
Showing 1 to 13 of 13 parts
