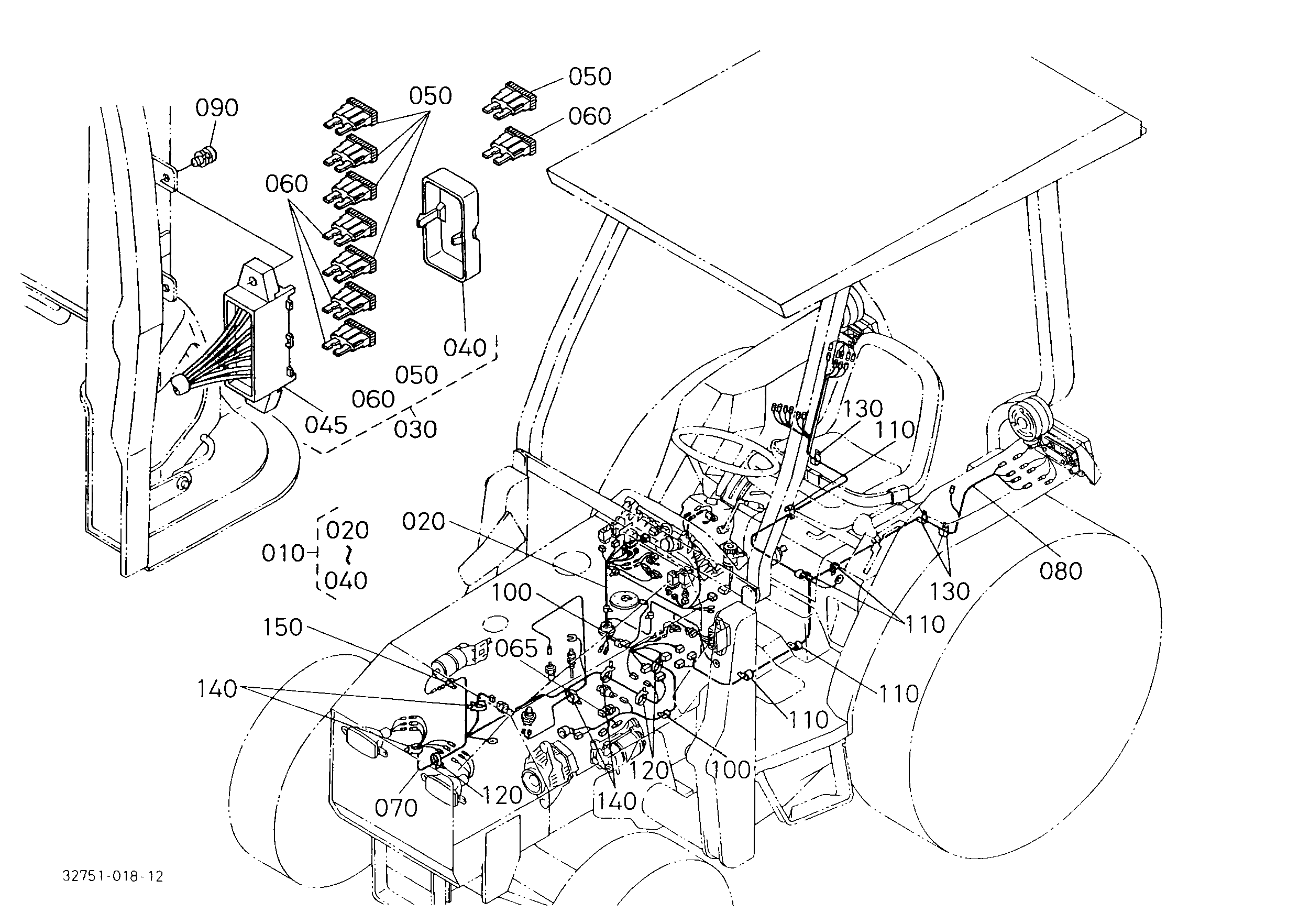

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | L35 Owners Manual 32751-19717 | 1 | $41.80 | |||
| 010 | MANUAL,INSTRUCTION 32751-19714 Discontinued | 1 | $113.53 | |||
| 010 | MANUAL,INSTRUCTION *** 32751-19715 | 1 | $113.53 | |||
| 010 | OM - L35 TRACTOR 32751-19713 | 1 | $39.33 | |||
| 010 | OM - L35 TRACTOR 32751-19716 | 1 | $20.61 | |||
| 010 | OPERATOR'S MANUA 32751-19710 32751-19711 Discontinued | 1 | $24.08 | |||
| 010 | OPERATOR'S MANUA 32751-19712 | 1 | $18.43 | |||
| 025 | WARRANTY STMT-FE 1G511-89810 Discontinued | 1 | $13.09 | |||
| 030 | Ignition and Starter Switch Key 35260-31850 35260-31852 | 1 | $23.27 | |||
| 040 | M16 x 1.5 x 30 mm Metric Bolt 01073-51630 | 1 | $2.81 | |||
| 050 | Nut Fastener 02076-50160 | 1 | $2.50 | |||
| 060 | Wheel Stud 01517-51632 | 1 | $2.62 | |||
| 070 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
| 080 | L-Series Tractor Front Wheel/Front Axle Stud Fastener 01517-51428 | 1 | $3.37 | |||
| 090 | Nut (Fastener) for Rear Wheel / Wheel Hub Assemblies TC404-11390 35340-11390 | 1 | $6.49 | |||
| 100 | BRACKET, RH SEAT 32430-18450 | 1 | $17.05 | |||
| 110 | BRACKET, LH SEAT 32430-18460 | 1 | $13.36 | |||
| 120 | M8 Flange Bolt 01754-50816 | 1 | $1.07 | |||
| 130 | BOLT 32430-34740 | 1 | $28.88 | |||
| 140 | Nut Fastener 02173-50160 02174-50160 | 1 | $2.26 | |||
| 150 | SPRING, PLATE 36500-49410 Discontinued | 1 | $4.54 | |||
| 160 | BOLT, UBS 01779-51445 | 1 | $8.72 | |||
| 170 | M14-1.5 Metric Nut 02076-50140 | 1 | $1.37 | |||
| 180 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.14 | |||
| 190 | BRACKET 32751-39420 | 1 | $95.18 | |||
| 200 | BOLT 01175-51060 | 1 | $3.12 | |||
| 210 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 220 | Hex Nut, M10-1.25mm (6T) 70090-33403 02176-50100 | 1 | $0.47 | |||
| 230 | BOLT 32530-29030 | 1 | $11.77 | |||
| 240 | NUT 32530-29040 | 1 | $9.13 | |||
| 260 | STAY 67401-45920 67401-45922 | 1 | $15.03 | |||
| 270 | Bolt 01123-50816 | 1 | $1.21 | |||
| 280 | BRACKET,SMV 66704-54950 66704-54952 Discontinued | 1 | $43.46 | |||
| 290 | Bolt 01023-50168 01023-50618 | 1 | $1.10 | |||
| 300 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.61 | |||
| 310 | Spring Washer (Spring Lock Washer) 04512-80060 04512-50060 | 1 | $0.14 | |||
| 320 | Nut Fastener 02013-50060 02014-50060 | 1 | $0.35 | |||
| 330 | Stud Bolt for Front Axle / Front Wheel Hub 35822-49150 32580-44960 | 1 | $6.87 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-
DIAG-T04601-85350 T04601 ELECTRICAL WIRING [NEW TYPE]
View Diagram -
DIAG-000010-85350 000010 USEFUL PRODUCTS
View Diagram -
DIAG-T04600-85350 T04600 ELECTRICAL WIRING [OLD TYPE]
View Diagram
