Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PISTON 36330-82570 Discontinued | 1 | $566.17 | |||
| 020 | O-RING 04811-40430 | 1 | $5.26 | |||
| 030 | RING, BACK-UP 33400-82550 36330-82550 | 1 | $43.51 | |||
| 040 | PISTON ROD 36330-82860 | 1 | $271.26 | |||
| 050 | ARM 36330-82840 36330-82844 | 1 | $298.20 | |||
| 060 | PIN, SPRING 05411-00870 | 1 | $4.09 | |||
| 070 | SHAFT, ARM 36330-82830 Discontinued | 1 | $1,196.14 | |||
| 080 | BOLT, O/P ARM 33251-82850 | 1 | $11.65 | |||
| 090 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 100 | COLLAR LH 36200-82890 | 1 | $69.91 | |||
| 110 | O-RING 04811-40310 | 1 | $3.21 | |||
| 120 | COLLAR DIST RH 33251-82882 33251-82880 | 1 | $191.86 | |||
| 130 | O-RING 04811-40320 | 1 | $3.21 | |||
| 140 | LIFT LEVER 36330-82910 Discontinued | 1 | $590.30 | |||
| 150 | THRUST COLLAR 36830-82900 | 1 | $9.90 | |||
| 160 | SUPPORT, LEVER 36330-82920 | 1 | $50.88 | |||
| 170 | BOLT 01175-51435 01173-51435 | 1 | $1.73 | |||
| 180 | WASHER,SPRING 04512-60140 04512-70140 | 1 | $0.14 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-T12000-85695 T12000 DOWN SPEED ADJUSTING LEVER
View Diagram -
DIAG-T12200-85695 T12200 HYDRAULIC SYSTEM 1
View Diagram -

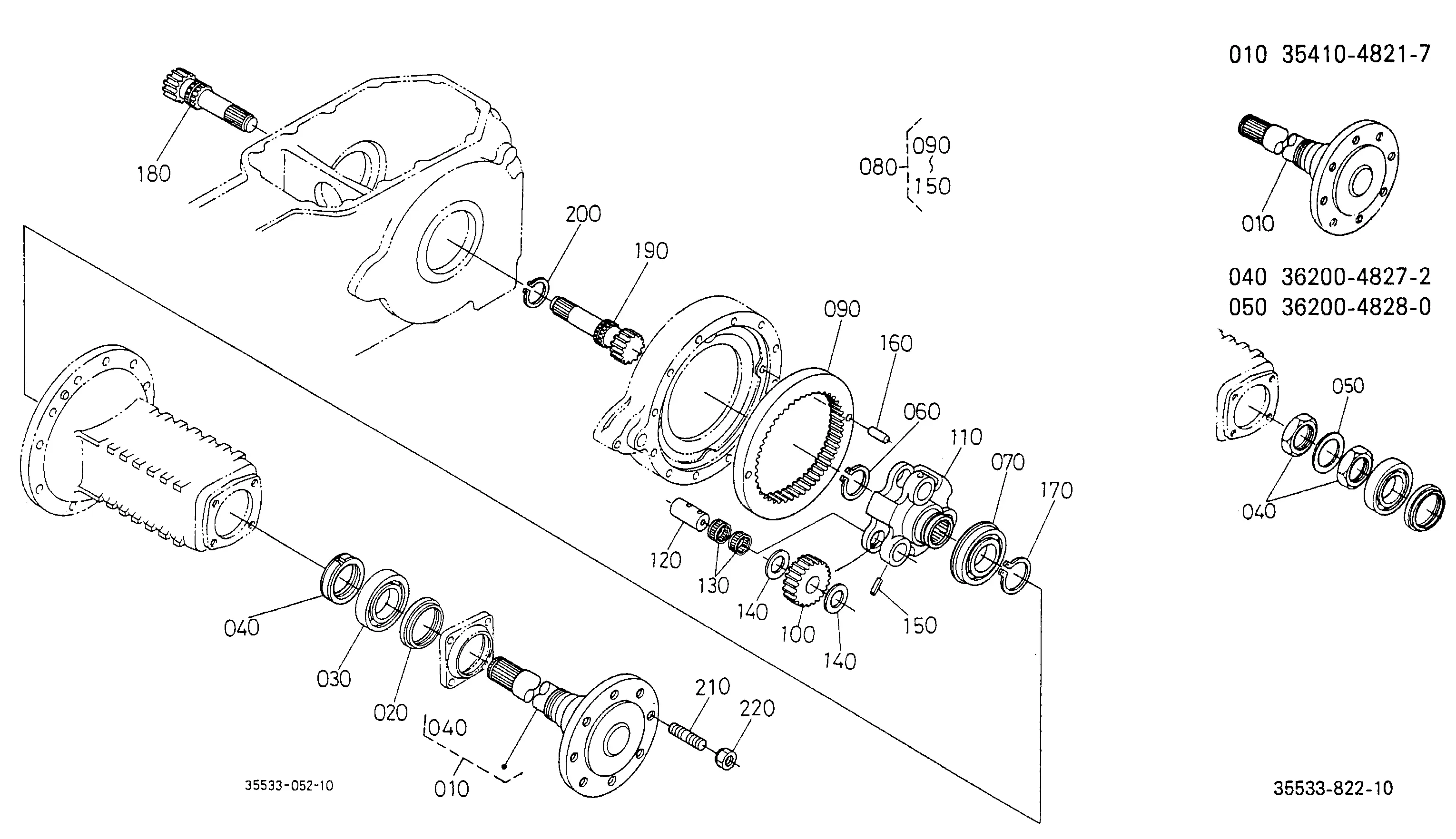

DIAG-T08001-85695 T08001 REAR AXLE
View Diagram
