Kubota L2650DT-WET T11801 DRAWBAR Parts Diagram

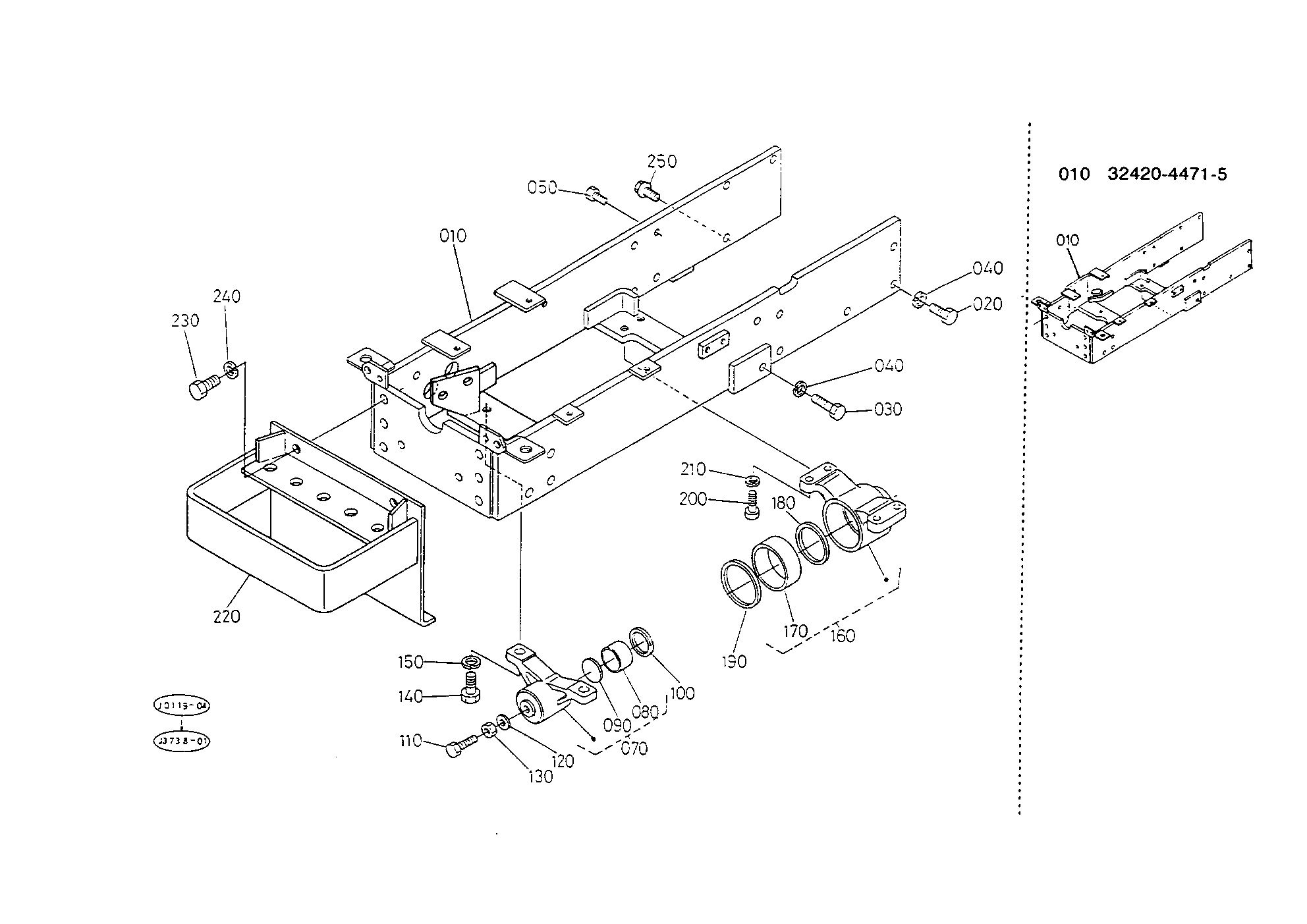

Exploded-view parts diagram "T11801 DRAWBAR" for the Kubota L2650DT-WET, Kubota L2950DT and Kubota L2950DT-WET. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | DRAWBAR 32430-29710 35070-29710 | 1 | $267.76 | |||
| 020 | DRAWBAR,FRAME 35080-29730 32430-29730 Discontinued | 1 | $595.80 | |||
| 020 | FRAME, DRAWBAR 32420-29730 Discontinued | 1 | $198.45 | |||
| 030 | BOLT 01170-51430 01173-51430 | 1 | $2.87 | |||
| 040 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 050 | PIN, JOINT 05112-52070 Discontinued | 1 | $9.96 | |||
| 060 | Replacement Pin 05515-51600 | 1 | $1.36 | |||
| 070 | PIN, LOWER LINK 32430-29820 | 1 | $63.35 | |||
| 080 | PLATESET 32430-29830 | 1 | $5.76 | |||
| 090 | Bolt 01130-51020 01133-51020 | 1 | $2.17 | |||
| 100 | PTO PROTECTOR 35060-25330 35244-25330 Discontinued | 1 | $112.71 | |||
| 110 | Bolt 01133-51235 | 1 | $2.47 | |||
| 120 | HOLDER 99571-22140 | 1 | $48.15 | |||
| 130 | HOLDER,TOP LINK LH * 99571-22150 99571-22156 | 1 | $49.68 | |||
| 140 | Bolt 01130-51230 01133-51230 | 1 | $2.36 | |||
| 150 | COLLAR 35114-25340 | 1 | $14.13 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-T08800-85291 T08800 FRONT AXLE FRAME
View Diagram -

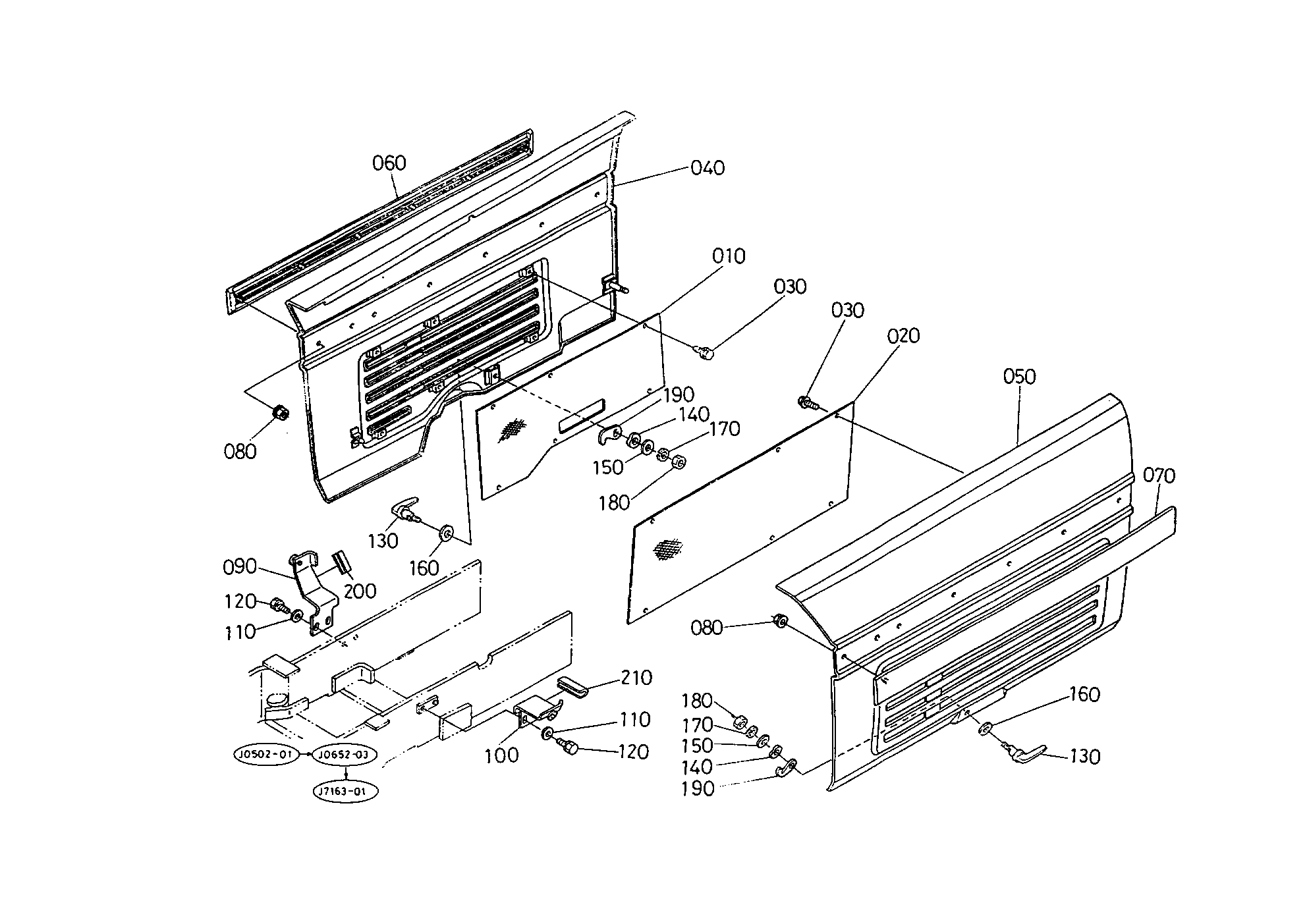

DIAG-T12200-85291 T12200 SIDE COVER
View Diagram -

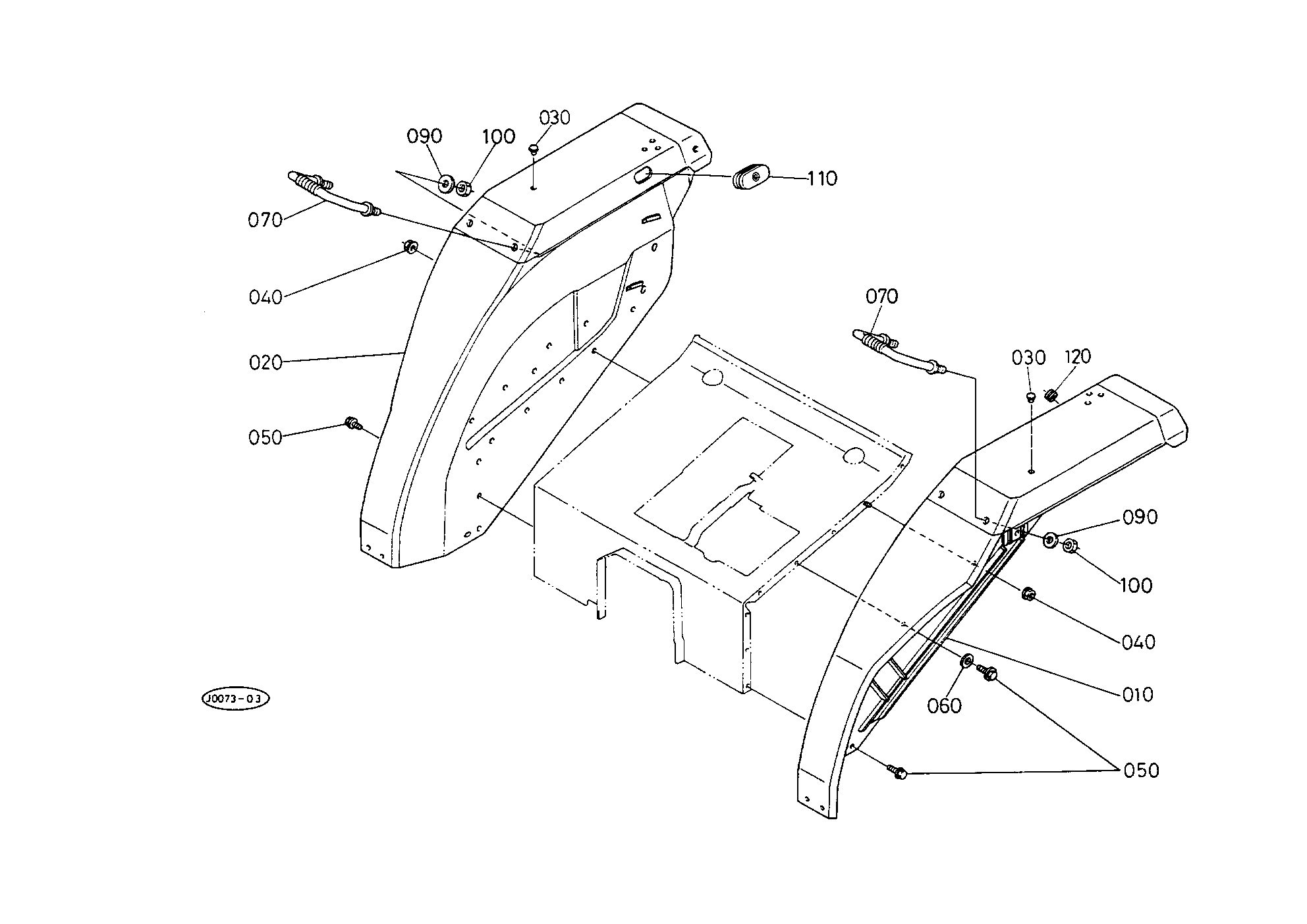

DIAG-T12500-85291 T12500 FENDER
