T11208 AUXILIARY CONTROL VALVE (FLOWTING)[CA][OPTION] Parts Diagram

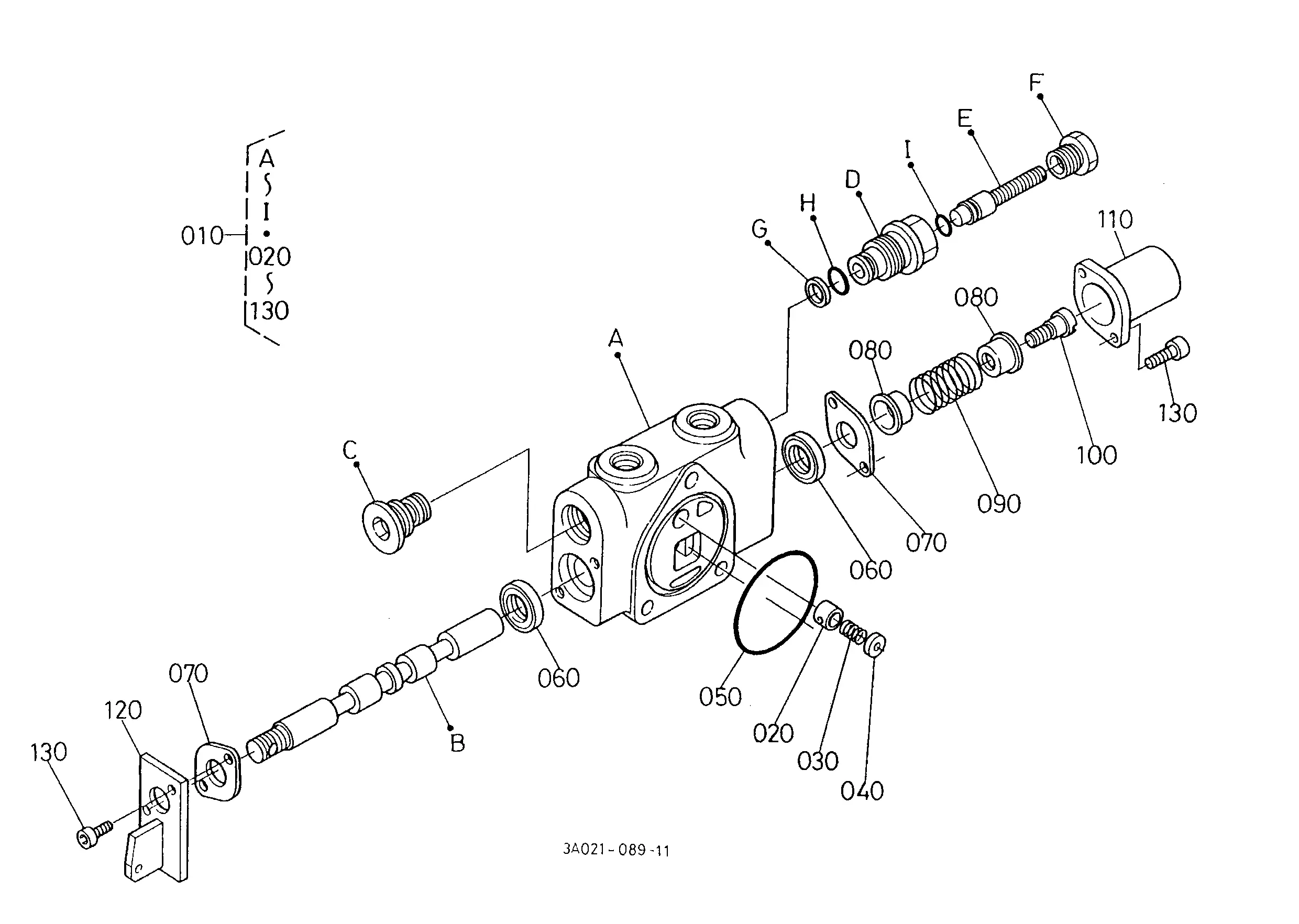

Exploded-view parts diagram "T11208 AUXILIARY CONTROL VALVE (FLOWTING)[CA][OPTION]". 20 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine OEM part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized equipment dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O-RING 35861-94510 | 1 | $4.20 | ||||
| 010 | VALVE,AUX.CONTRO 3A031-82800 3A211-82802 | 1 | $1,348.28 | |||
| 020 | BOLT 01073-51002 01173-51002 | 1 | $4.70 | |||
| 030 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 040 | BOLT * 01153-50802 | 1 | $5.71 | |||
| 050 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
| 060 | LEVER 3A011-82462 Discontinued | 1 | $124.62 | |||
| 070 | GRIP*** 36330-82450 | 1 | $16.27 | |||
| 080 | Joint Pin 05112-50518 05122-50518 | 1 | $1.51 | |||
| 090 | Plain Washer 04011-00050 04012-50050 | 1 | $0.36 | |||
| 100 | Snap Pin 05525-50500 05525-70500 | 1 | $1.48 | |||
| 110 | FITTING, NIPPLE 35861-82370 | 1 | $47.30 | |||
| 120 | O-Ring Seal 04811-00140 04816-00140 | 1 | $2.01 | |||
| 130 | HOSE 2 3A011-82380 | 1 | $153.26 | |||
| 140 | ADAPTER 99063-93410 | 1 | $63.73 | |||
| 150 | ASSY COUPLER, FE 35861-82032 35861-82034 | 1 | $155.93 | |||
| 160 | PLUG, COUPLER 35861-94520 35861-94523 | 1 | $11.76 | |||
| 180 | SUPPORT, HYD COU 35893-82612 35893-82610 | 1 | $121.76 | |||
| 190 | Internal Circlip 04611-10380 04611-00380 | 1 | $2.26 | |||
| 220 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
Showing 1 to 20 of 20 parts
