Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SPOOL 1 HOLDER 67531-38280 | 1 | $17.28 | |||
| 020 | JOINT, SPOOL 2 37150-36420 | 1 | $15.63 | |||
| 030 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.43 | |||
| 040 | CIR-CLIP, EXTERN 04613-00060 04613-50060 | 1 | $0.60 | |||
| 050 | LEVER, SPOOL DRI 31351-37640 | 1 | $23.25 | |||
| 060 | ARM, CONTROL 31351-37650 | 1 | $53.10 | |||
| 060 | ARM,CONTROL TA140-37650 | 1 | $57.13 | |||
| 070 | O-Ring Seal 04811-00140 04816-00140 | 1 | $2.01 | |||
| 080 | PLATE, SET 31351-37660 | 1 | $3.36 | |||
| 090 | BOLT 01123-60816 01123-70816 | 1 | $1.13 | |||
| 090 | Bolt (Fastener) 01120-00830 01123-50830 | 1 | $1.13 | |||
| 100 | WASHER,PLAIN 04013-60140 04013-70140 | 1 | $0.60 | |||
| 110 | SPRING, PLATE 34260-36880 | 1 | $3.44 | |||
| 120 | NUT 02174-50140 | 1 | $0.90 | |||
| 130 | NUT 02172-60140 02172-50140 | 1 | $0.67 | |||
| 140 | SHAFT, LEVER 31351-37750 | 1 | $46.08 | |||
| 150 | O-Ring Seal 04811-00120 04816-00120 | 1 | $1.93 | |||
| 160 | PLATE, SET 38240-36890 | 1 | $5.02 | |||
| 180 | LEVER 3 31351-37760 | 1 | $38.18 | |||
| 190 | PIN, SPRING 05411-00525 | 1 | $0.77 | |||
| 200 | ROD, FEEDBACK 31321-37770 | 1 | $29.33 | |||
| 210 | BAR, CONTROL 31351-37780 | 1 | $10.93 | |||
| 220 | Nut Fastener W2336-07200 02114-50080 | 1 | $30.16 | |||
| 230 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.14 | |||
| 240 | Spring Pin 05511-00218 05511-50218 | 1 | $0.36 | |||
| 260 | PIN, SPLIT 05511-20215 05511-50215 | 1 | $0.14 | |||
| 270 | JOINT ASSY TA040-99800 | 1 | $46.04 | |||
| 280 | SPACER, POSITION TA140-36900 | 1 | $15.86 | |||
| 290 | PIN, SPRING 05411-00528 | 1 | $1.31 | |||
| 300 | PLATE,FRICTION TA140-36920 | 1 | $17.22 | |||
| 310 | SPACER,POSITION TA140-36930 | 1 | $13.56 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-

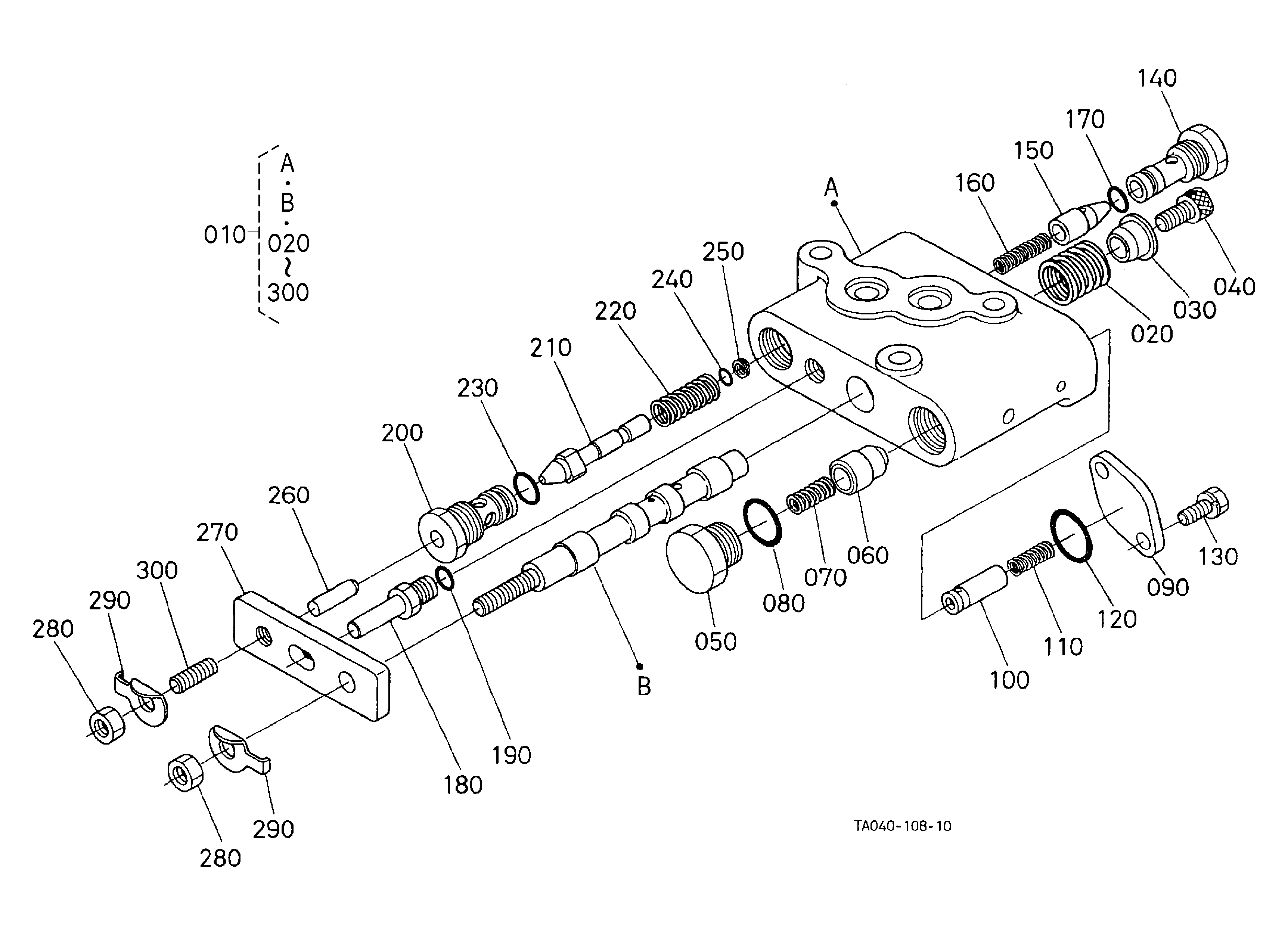

DIAG-T11000-93340 T11000 CONTROL VALVE [COMPONENT PARTS] [OLD TYPE]
View Diagram -

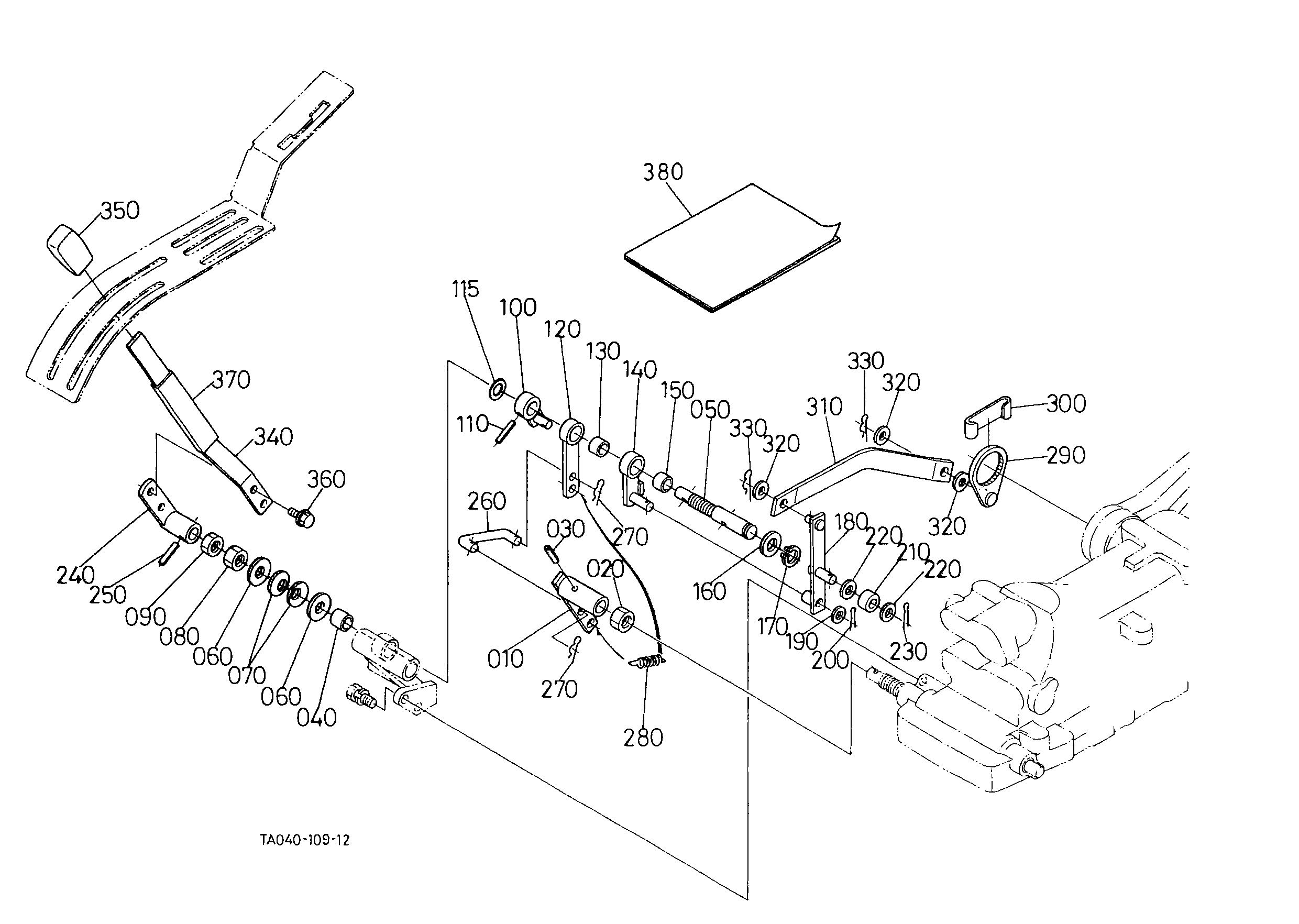

DIAG-T11300-93340 T11300 DRAFT AND POSITION CONTROL LEVER 1 [OPTION]
View Diagram -

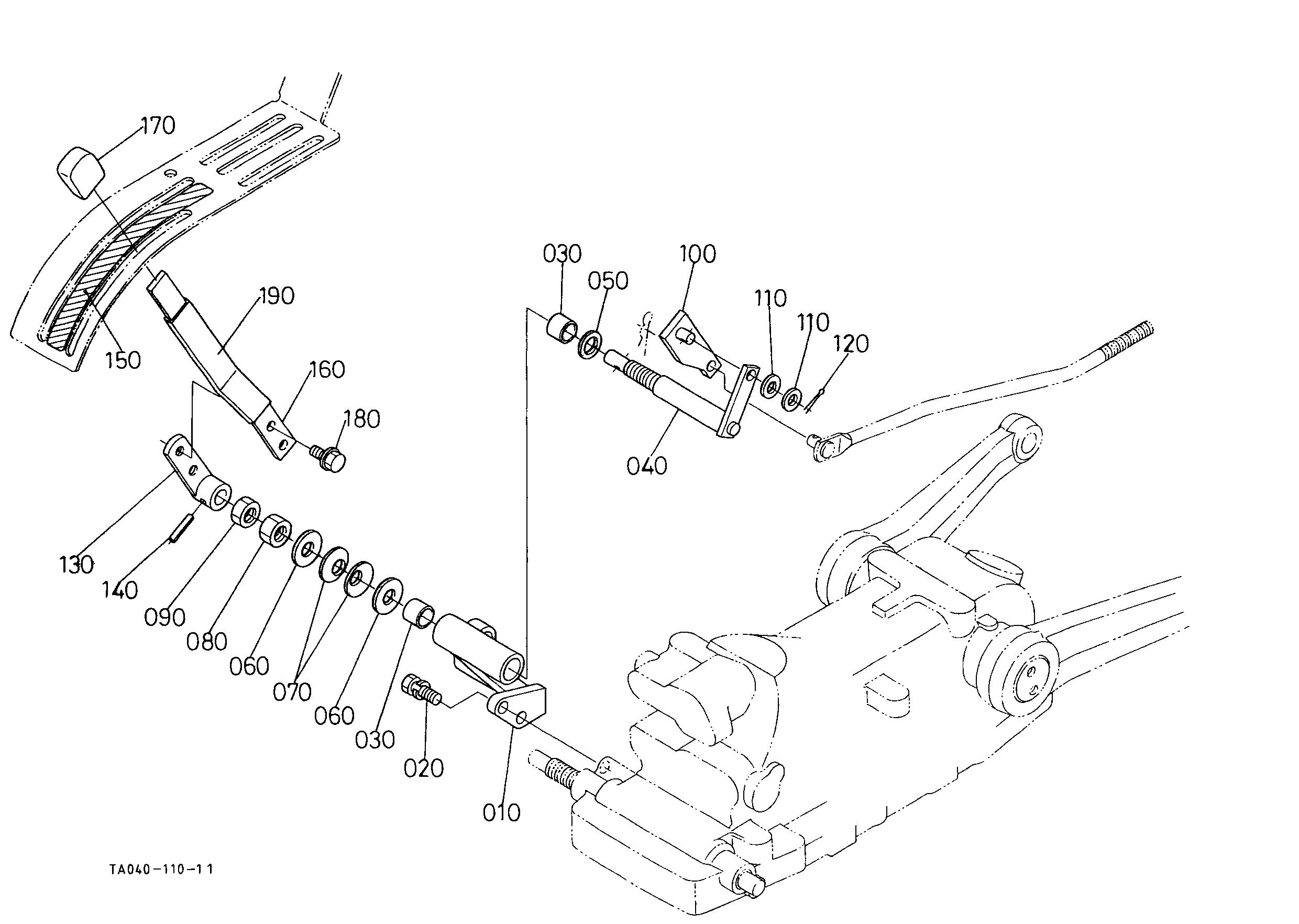

DIAG-T11400-93340 T11400 DRAFT AND POSITION CONTROL LEVER 2 [OPTION]
View Diagram
