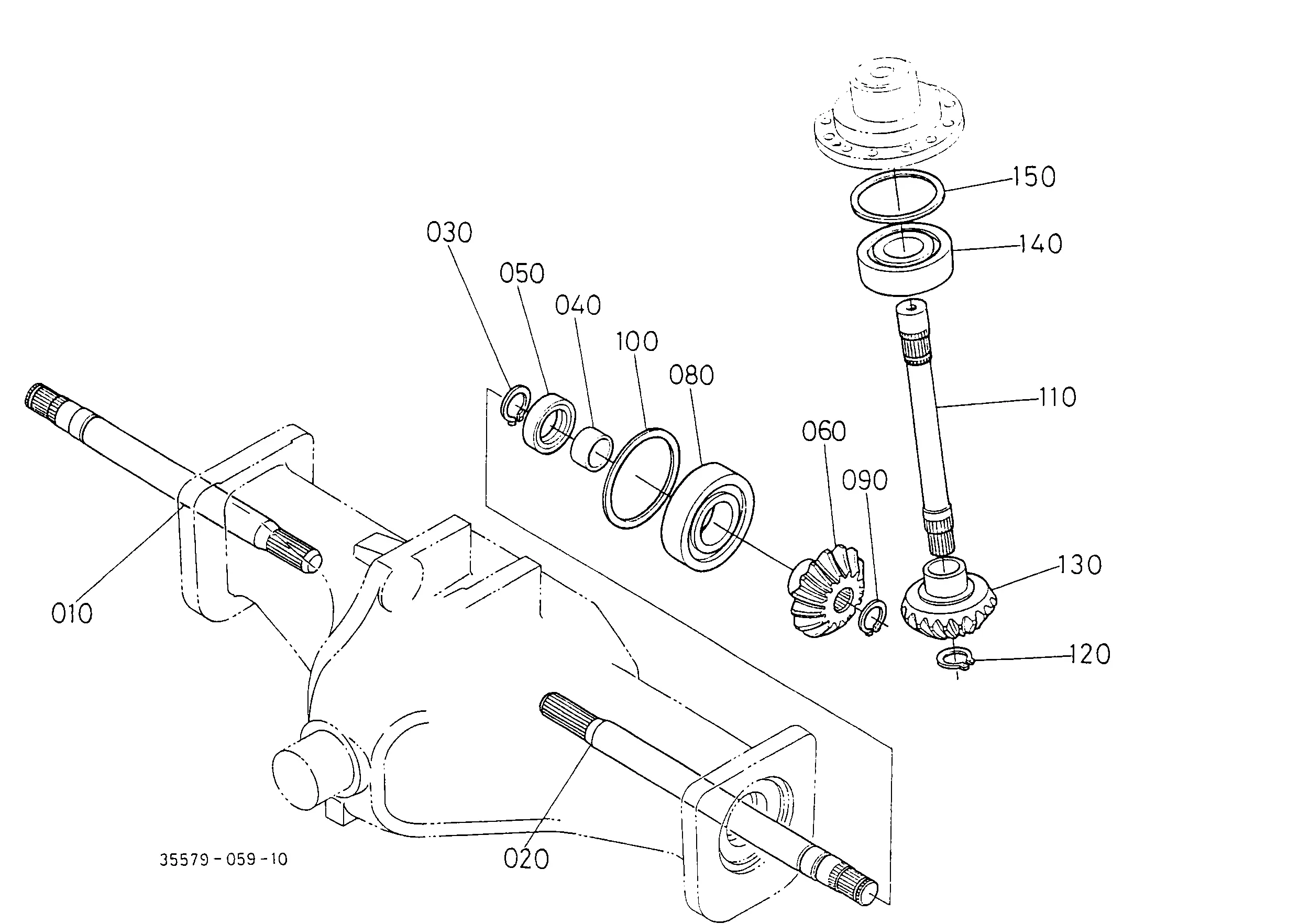

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE,BEVEL GEAR 35533-43314 35533-43316 | 1 | $458.36 | |||
| 020 | BOLT, UBS 36340-43180 | 1 | $6.24 | |||
| 030 | PIPE, KNOCK 35533-43170 | 1 | $11.40 | |||
| 040 | Bolt for Front Axle, Chassis, and Linkage Assemblies 01173-51440 | 1 | $3.23 | |||
| 050 | STUD 01517-61435 01517-51435 | 1 | $4.79 | |||
| 060 | NUT 02174-50140 | 1 | $1.51 | |||
| 060 | Nut (Fastener) 02176-50140 | 1 | $1.51 | |||
| 070 | WASHER,SPRING 04512-60140 04512-70140 | 1 | $0.36 | |||
| 080 | HOLDER, BEARING 35533-43320 33670-40370 | 1 | $272.16 | |||
| 090 | Bolt with Washer 01120-50825 01123-50825 | 1 | $1.21 | |||
| 100 | PLUG 35533-43390 | 1 | $54.24 | |||
| 110 | WASHER, SEAL 04717-02400 | 1 | $4.15 | |||
| 120 | ASSY SUPPORT, LH 3F250-43380 3F250-43382 | 1 | $1,522.59 | |||
| 120 | SUPPORT,F WHEEL 36760-40383 36760-40384 Discontinued | 1 | $108.64 | |||
| 120 | SUPPORT,F-WHEEL 36760-40380 | 1 | $245.31 | |||
| 130 | WASHER, THRUST 35533-43330 | 1 | $10.94 | |||
| 140 | PLUG 35533-43370 | 1 | $12.08 | |||
| 150 | O-Ring Seal 04811-00160 04816-00160 | 1 | $2.01 | |||
| 160 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $3.54 | |||
| 170 | BUSH 35533-43350 | 1 | $83.05 | |||
| 170 | BUSH 35533-43400 | 1 | $83.05 | |||
| 180 | SEAL, OIL 38440-44820 | 1 | $11.96 | |||
| 180 | SEAL,OIL (VC65X8 33750-43350 | 1 | $21.54 | |||
| 190 | BOLT 01170-51430 01173-51430 | 1 | $2.87 | |||
| 190 | BOLT 01176-51430 | 1 | $3.44 | |||
| 190 | STUD 3F250-40340 | 1 | $10.82 | |||
| 210 | BOLT 36280-43180 | 1 | $7.46 | |||
| 210 | BOLT, UBS 01779-51435 | 1 | $5.37 | |||
| 220 | PIN 3F250-40390 | 1 | $11.69 | |||
| 230 | COVER,SWITCH 36760-40420 | 1 | $25.57 | |||
| 240 | BOLT 01150-51018 01153-51018 | 1 | $1.35 | |||
| 250 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 260 | BAND, CORD 36760-77040 | 1 | $21.07 | |||
| 270 | SUPPORT,HARNESS 35579-40400 Discontinued | 1 | $31.94 | |||
| 280 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 290 | SWITCH 36760-40390 36760-40392 | 1 | $104.40 | |||
| 300 | SHIM 36760-40460 | 1 | $2.79 | |||
| 300 | SHIM 36760-40470 | 1 | $7.21 | |||
| 310 | O'RING 68191-70770 04811-51000 | 1 | $6.74 | |||
| 320 | PLUG 66591-51132 66591-51130 | 1 | $1.38 | |||
| 330 | NUT 3F250-27360 | 1 | $15.75 | |||
Showing 1 to 41 of 41 parts
