| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SEAL 32580-43620 32590-43620 | 1 | $130.43 | |||
| 030 | SHAFT, BEVEL GEA 32580-43634 Discontinued | 1 | $301.88 | |||
| 040 | BRG BALL 32580-43640 | 1 | $39.59 | |||
| 050 | Cir-Clip Retaining Ring 04611-50300 04611-00800 | 1 | $7.97 | |||
| 060 | RING 32580-43650 | 1 | $31.60 | |||
| 070 | SEAL 32580-43660 | 1 | $12.51 | |||
| 080 | BRG NDL 32580-43670 32580-43672 | 1 | $65.08 | |||
| 090 | BRG THRUST BALL6 08401-51113 | 1 | $56.09 | |||
| 110 | SUPPORT(SHAFT) 32580-43920 H3250-43920 | 1 | $365.32 | |||
| 115 | PLUG 68311-13620 | 1 | $5.15 | |||
| 120 | O-RING 04811-10750 | 1 | $5.89 | |||
| 125 | SUPPORT, F-AXLE 32580-43900 | 1 | $688.57 | |||
| 130 | SUPPORT, CASE 32580-43963 | 1 | $407.48 | |||
| 130 | SUPPORT, CASE F 32580-43960 Discontinued | 1 | $474.70 | |||
| 140 | BUSH 32590-43930 | 1 | $271.25 | |||
| 140 | BUSHING 32580-43930 08511-07030 | 1 | $13.70 | |||
| 145 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $2.09 | |||
| 150 | O-Ring Seal RD201-69340 04811-50700 | 1 | $13.03 | |||
| 150 | SEAL, OIL O-RING 32590-43990 | 1 | $55.84 | |||
| 160 | BOLT, UBS 32580-43970 Discontinued | 1 | $4.80 | |||
| 170 | PLUG 06331-35010 | 1 | $3.15 | |||
| 180 | Washer 04717-00100 04717-01000 | 1 | $2.26 | |||
| 190 | NUT 32580-43940 | 1 | $46.77 |
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-T08400-85442 T08400 DIFFERENTIAL GEAR SHAFT
View Diagram -

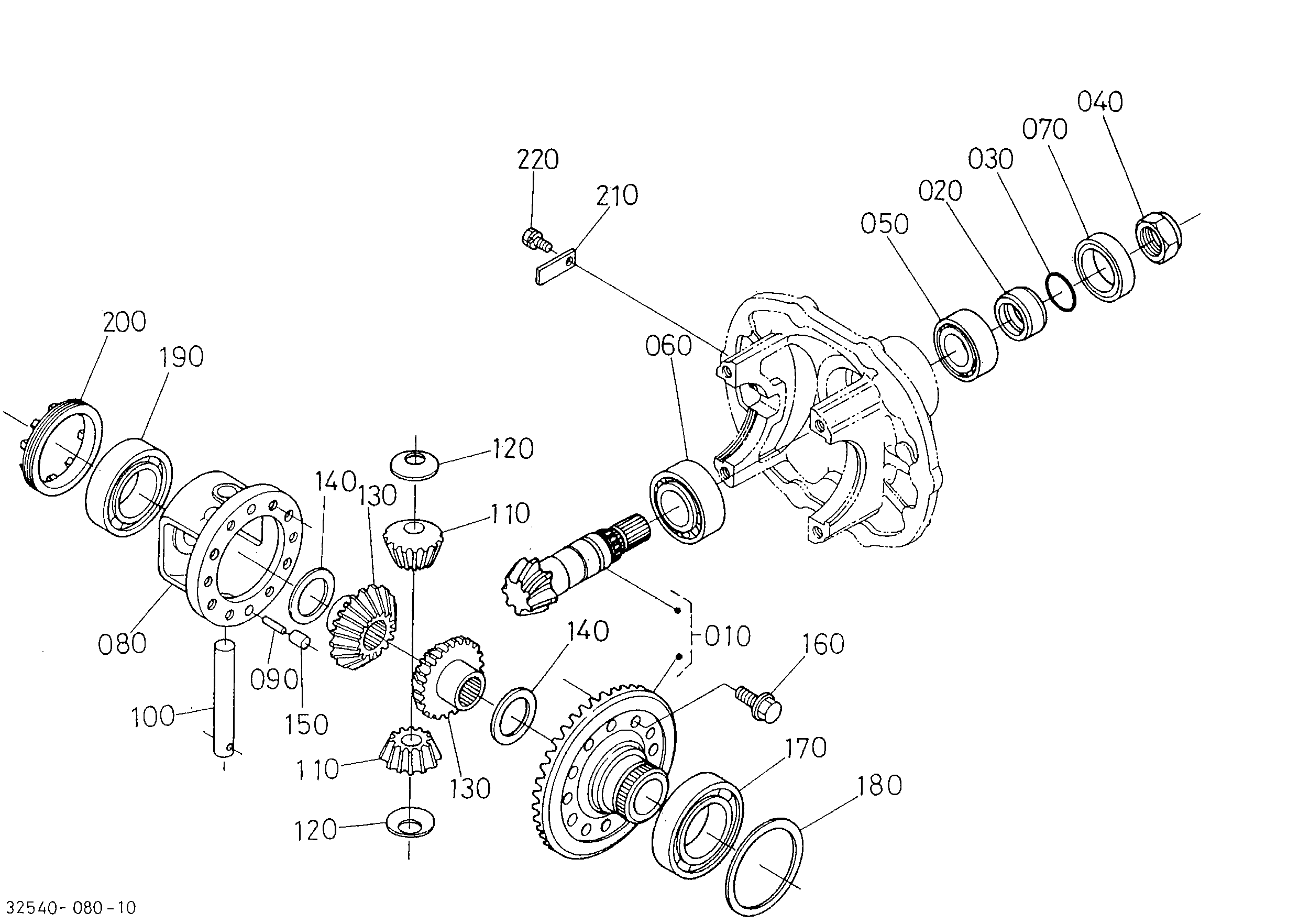

DIAG-T08300-85442 T08300 DIFFERENTIAL FRONT
View Diagram -

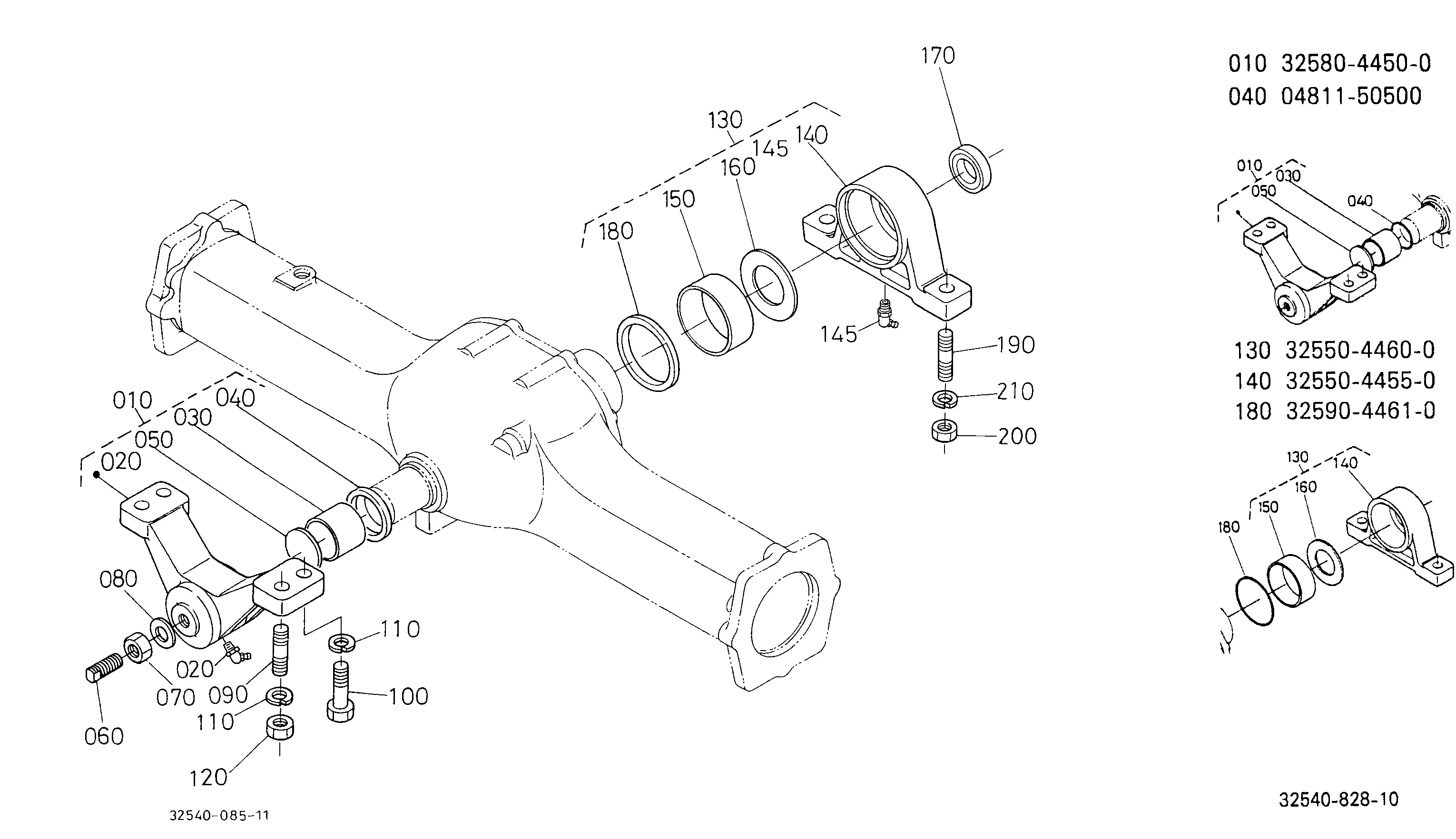

DIAG-T08801-85442 T08801 FRONT AXLE SUPPORT
View Diagram
