Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY LEVER, BRAK 34070-44850 34070-44810 | 1 | $239.06 | |||
| 020 | BUSH 34070-44890 | 1 | $23.89 | |||
| 030 | ASSY LEVER,BRAKE 34070-44860 34070-44910 | 1 | $246.24 | |||
| 050 | SHAFT, BRAKE LH 34070-44870 | 1 | $43.83 | |||
| 060 | SHAFT, BRAKE RH 34070-44880 | 1 | $43.83 | |||
| 070 | Washer 04011-10200 04011-50200 | 1 | $0.60 | |||
| 080 | Circlip Retaining Ring 04612-10200 04612-00200 | 1 | $0.61 | |||
| 090 | ASSY ROD, BRAKE 34070-44800 | 1 | $60.33 | |||
| 100 | ROD BRAKE LOWER 34070-44840 | 1 | $38.46 | |||
| 110 | ROD, CLUTCH 34070-44460 | 1 | $48.24 | |||
| 120 | TURNBUCKLE 32350-28983 32350-28980 | 1 | $15.57 | |||
| 130 | Nut 02172-50100 02116-50100 | 1 | $0.14 | |||
| 140 | PIN, JOINT 05122-51028 | 1 | $3.59 | |||
| 150 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.22 | |||
| 160 | PIN, SPLIT 05511-50318 | 1 | $0.36 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

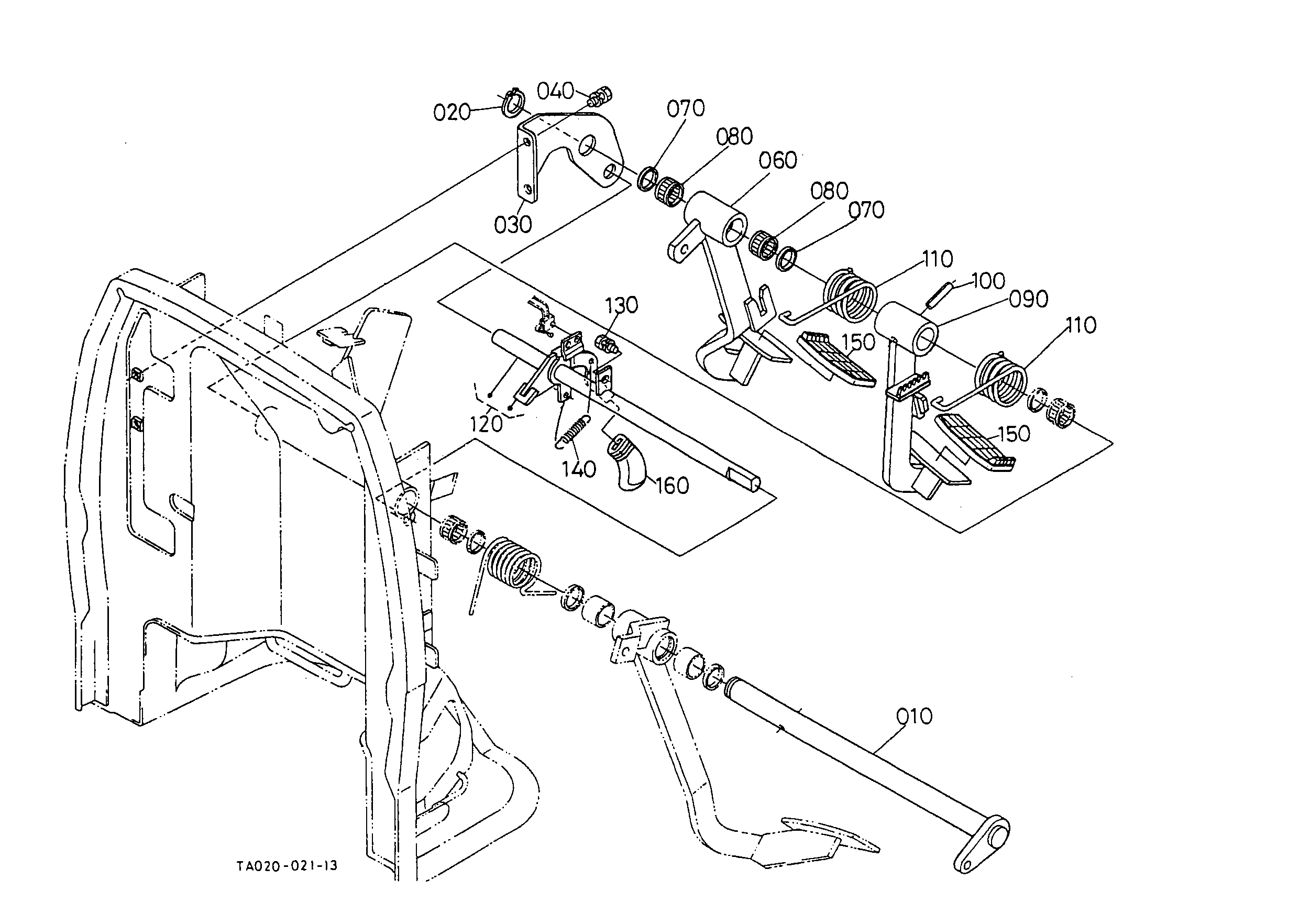

DIAG-T07600-93338 T07600 BRAKE PEDAL
View Diagram -

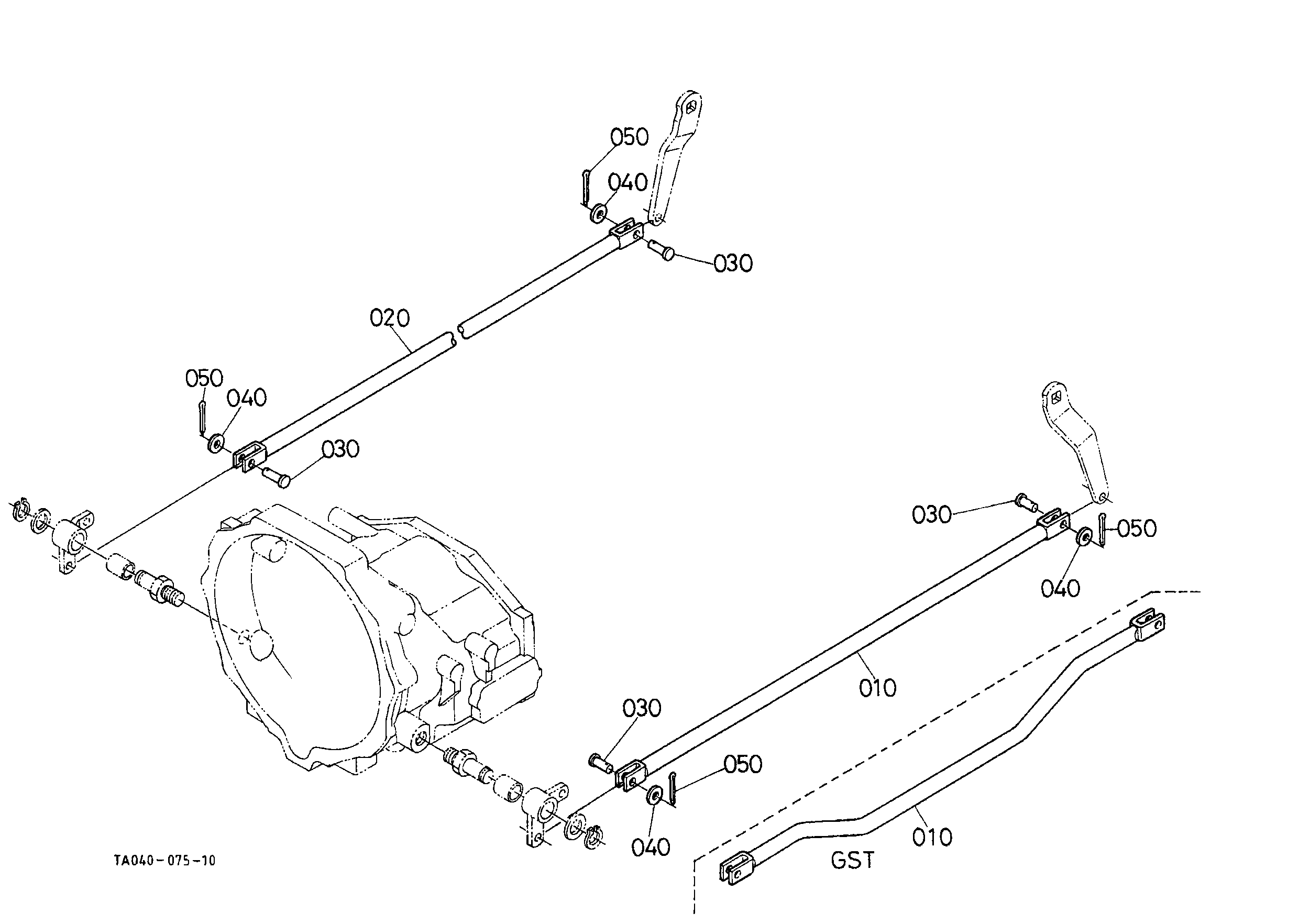

DIAG-T07800-93338 T07800 BRAKE ROD 2
