Kubota L245H T07200 SEAT Parts Diagram

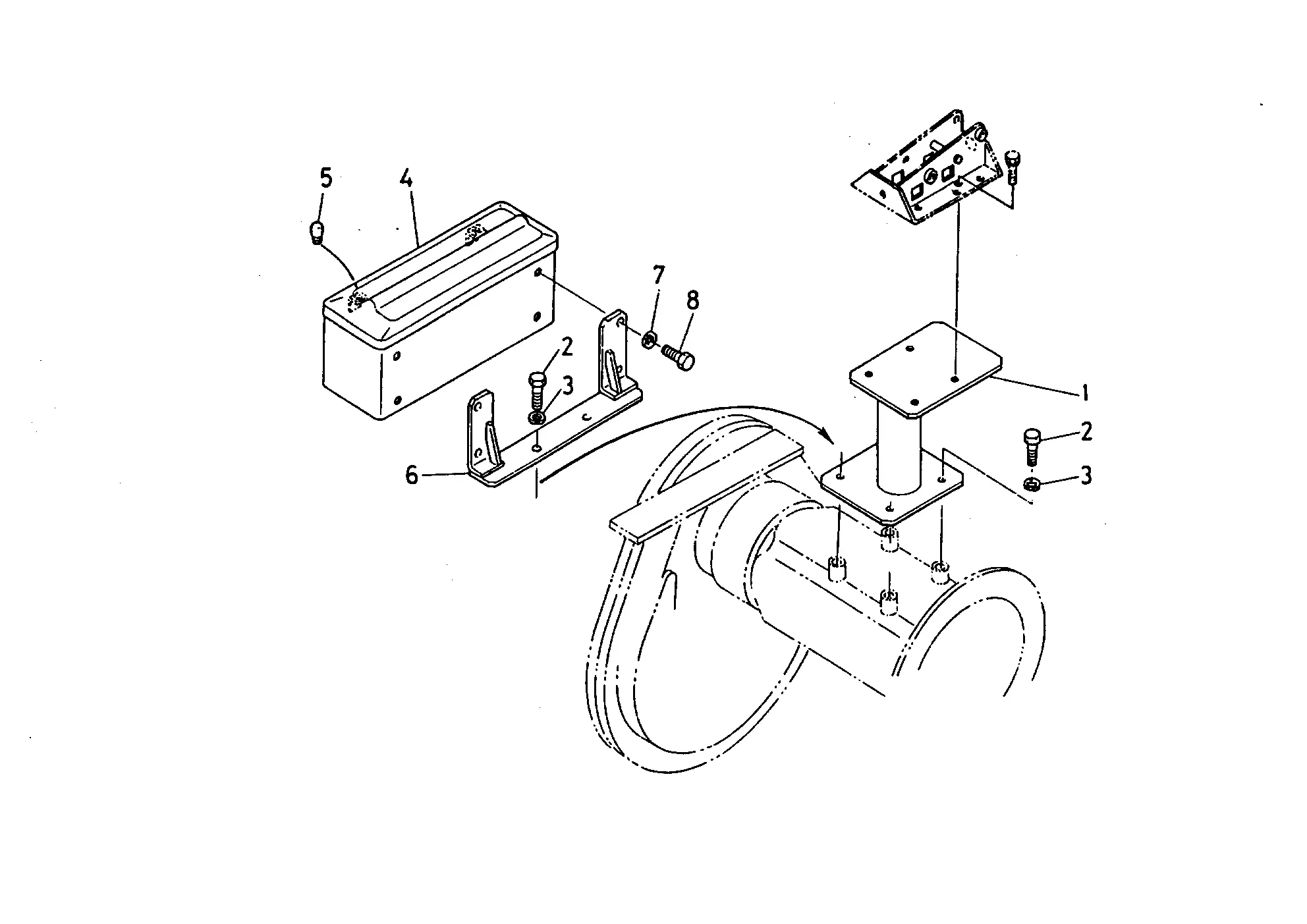

Exploded-view parts diagram "T07200 SEAT" for the Kubota L245H. 25 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | ASSY SEAT 35110-85010 35110-85016 | 1 | $441.10 | |||
| 002 | ASSY SUSPENSION, 34269-18405 35110-18400 Discontinued | 1 | $318.96 | |||
| 002 | SUSPENSION SEAT 35170-18400 Discontinued | 1 | $504.70 | |||
| 003 | SUPPORT, SEAT 34269-18413 34269-18410 Discontinued | 1 | $65.84 | |||
| 004 | SUPPORT SEAT 34269-18422 34269-18420 Discontinued | 1 | $131.91 | |||
| 005 | BRACKET 35258-18430 Discontinued | 1 | $47.97 | |||
| 006 | ARM, SEAT 2 34269-18442 34269-18440 Discontinued | 1 | $85.67 | |||
| 007 | SEAT SPRING** 35170-18450 Discontinued | 1 | $73.16 | |||
| 007 | SPRING 34119-18450 70000-18451 | 1 | $36.51 | |||
| 008 | ***BOLT**L6 ERRO 35258-18460 Discontinued | 1 | $13.67 | |||
| 008 | BOLT 34269-18462 34269-18460 Discontinued | 1 | $27.97 | |||
| 008 | BOLT 35170-18460 | 1 | $9.22 | |||
| 009 | PIN 34269-18490 Discontinued | 1 | $12.79 | |||
| 010 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 011 | Nut 02172-50100 02116-50100 | 1 | $0.36 | |||
| 012 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | |||
| 013 | PIN 05511-00225 05511-50225 | 1 | $0.25 | |||
| 013 | PIN, SPLIT 05511-50220 | 1 | $0.36 | |||
| 014 | CUSHION 32160-18442 32160-18440 | 1 | $13.76 | |||
| 015 | ROLLER*** 35258-18480 Discontinued | 1 | $3.66 | |||
| 017 | Bolt 01130-51020 01133-51020 | 1 | $2.17 | |||
| 018 | BOLT 35110-18472 35110-18470 | 1 | $1.07 | |||
| 019 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
| 020 | ASSY COVER,SEAT 35110-85060 35110-99102 | 1 | $104.64 | |||
| 021 | EYELET 35110-85050 | 1 | $2.67 | |||
Showing 1 to 25 of 25 parts
