Kubota L2900DT-GST T06702 RANGE GEAR SHIFT FORK AND CREEP GEAR SHIFT FORK [GST TYPE] Parts Diagram

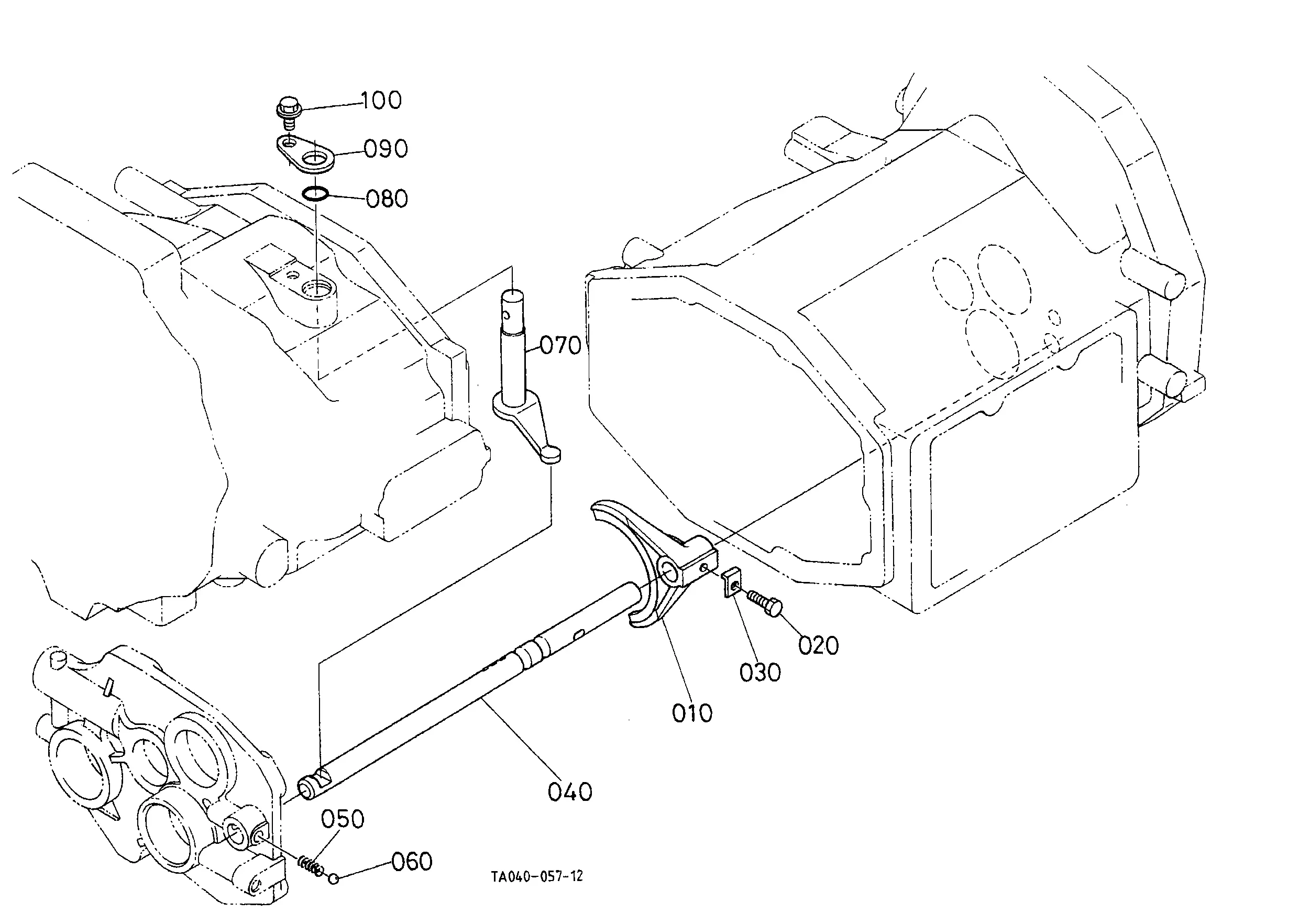

Exploded-view parts diagram "T06702 RANGE GEAR SHIFT FORK AND CREEP GEAR SHIFT FORK [GST TYPE]" for the Kubota L2900DT-GST, Kubota L3300DT-GST, Kubota L4200DT-GST and Kubota L4200F-GST. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FORK, CREEP SHIF 34070-24500 | 1 | $72.75 | |||
| 020 | ROD, FORK TA040-24510 | 1 | $59.34 | |||
| 030 | Spring Pin 05411-00522 | 1 | $0.51 | |||
| 040 | Stopper Spring (Spring, Stopper) 62231-18532 62231-18530 | 1 | $5.97 | |||
| 050 | Steel Ball 07715-01605 | 1 | $0.42 | |||
| 060 | ARM, SHIFT 34070-24420 | 1 | $50.88 | |||
| 070 | O-Ring Seal (O Ring) 04811-00200 04816-00200 | 1 | $2.50 | |||
| 080 | STOPPER 34070-24350 | 1 | $3.35 | |||
| 090 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 100 | FORK, SHIFT TA040-64400 | 1 | $271.01 | |||
| 110 | ROD, FORK TA040-64410 Discontinued | 1 | $109.28 | |||
| 120 | PIN 05411-10625 05411-00625 | 1 | $1.31 | |||
| 130 | SMSFTER 34076-64420 | 1 | $71.46 | |||
| 140 | PIN, SHIFT 34076-64170 | 1 | $14.82 | |||
| 150 | BOLT, FORK LOCK 31351-23570 | 1 | $1.91 | |||
| 160 | Spring Washer (Spring Lock Washer) 04512-80060 04512-50060 | 1 | $0.36 | |||
Showing 1 to 16 of 16 parts
