Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GRIP*** 36330-82450 | 1 | $16.27 | ||||
| 010 | VALVE, AUX CON S 35820-82350 35820-82352 | 1 | $1,776.09 | |||
| 020 | RING, BACKUP 36200-82330 | 1 | $11.76 | |||
| 030 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 040 | SEAL, SPOOL 36200-82810 | 1 | $25.60 | |||
| 050 | SEAL, DUST 36200-82820 | 1 | $37.59 | |||
| 060 | STOPPER 35820-82980 Discontinued | 1 | $12.95 | |||
| 070 | Spring Washer 04512-50080 | 1 | $0.14 | |||
| 080 | JOINT 35801-82010 | 1 | $257.28 | |||
| 090 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.22 | |||
| 100 | SPRING 35861-82020 | 1 | $7.28 | |||
| 110 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.14 | |||
| 120 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.43 | |||
| 130 | Wing Nut 02820-00080 | 1 | $4.42 | |||
| 140 | O-Ring Seal 04811-00140 04816-00140 | 1 | $2.01 | |||
| 150 | FLOATING VALVE A 35820-82800 Discontinued | 1 | $1,411.31 | |||
| 200 | Pin 05411-00635 | 1 | $1.32 | |||
| 210 | BOLT 01153-50801 | 1 | $5.48 | |||
| 220 | FITTING, NIPPLE 35861-82370 | 1 | $47.30 | |||
| 240 | HOSE 35861-82380 Discontinued | 1 | $125.30 | |||
| 250 | HOSE 2 35861-82560 Discontinued | 1 | $103.51 | |||
| 260 | HOSE 3 35861-82580 Discontinued | 1 | $108.97 | |||
| 270 | HOSE 4 35861-82590 | 1 | $107.02 | |||
| 280 | ASSY COUPLER, FE 35861-82032 35861-82034 | 1 | $155.93 | |||
| 290 | O-RING 35861-94510 | 1 | $4.20 | |||
| 300 | PLUG, COUPLER 35861-94520 35861-94523 | 1 | $11.76 | |||
| 310 | ASSY COUPLER MAL 35861-82190 35861-82192 | 1 | $41.13 | |||
| 320 | Internal Circlip 04611-10380 04611-00380 | 1 | $1.34 | |||
| 330 | SUPPORT, HYD COU 35861-82610 99063-93800 Discontinued | 1 | $134.21 | |||
| 340 | BOLT 01150-50865 01153-50865 | 1 | $3.14 | |||
| 360 | SPACER 35801-82620 | 1 | $4.23 | |||
| 370 | HOLDER 35822-82410 | 1 | $42.44 | |||
| 380 | HOLDER 35822-82420 | 1 | $51.66 | |||
| 390 | Bolt 01123-50816 | 1 | $1.21 | |||
| 400 | BUSH 54821-51230 | 1 | $6.91 | |||
| 410 | LEVER 1 35822-82443 Discontinued | 1 | $149.69 | |||
| 420 | LEVER, SUB CONTR 35820-82460 Discontinued | 1 | $61.34 | |||
| 450 | SPACER 35822-82470 | 1 | $5.99 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-
DIAG-T05501-85714 T05501 AUX.CONTROL VALVE [OLD TYPE] [A]
View Diagram -

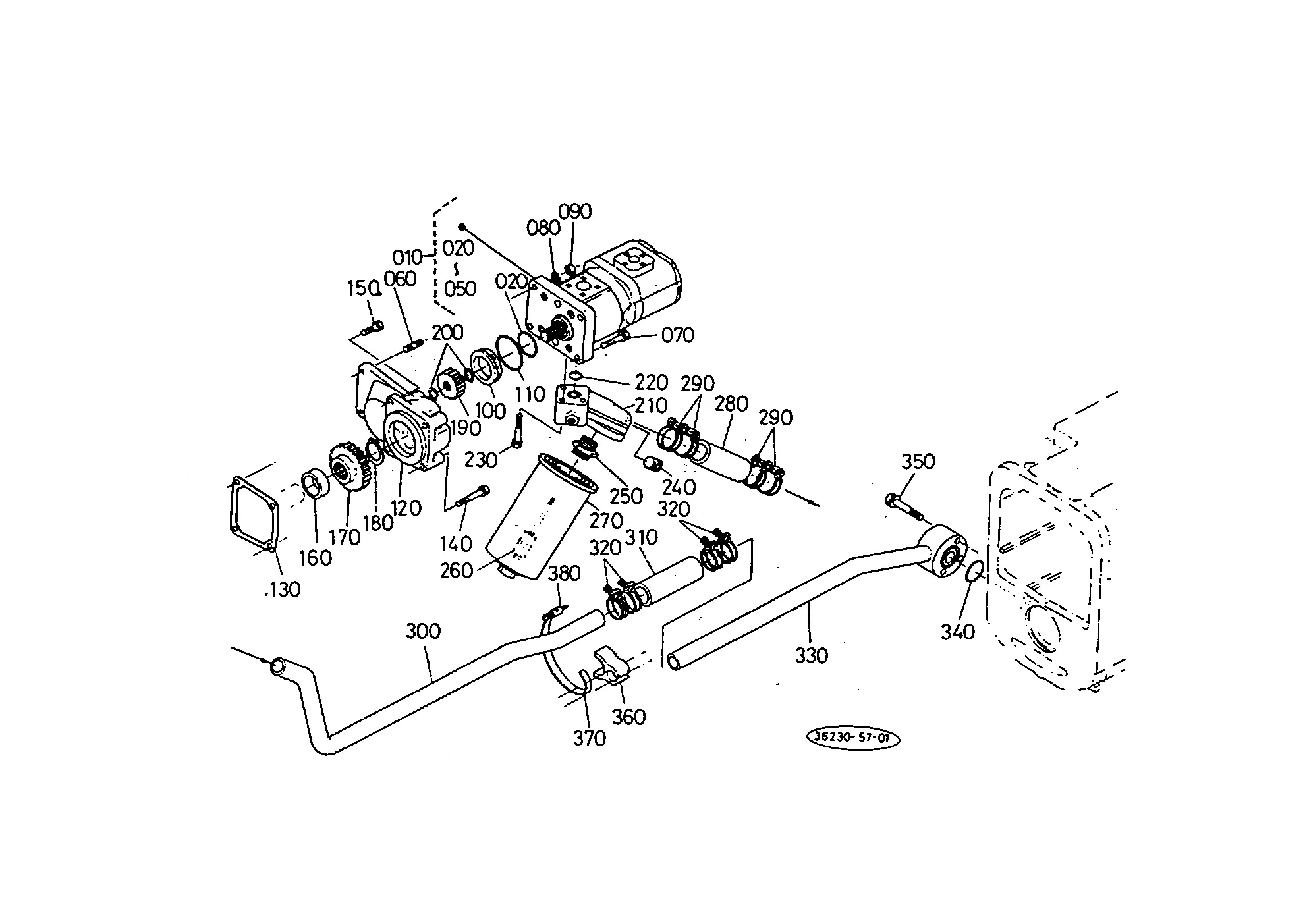

DIAG-T05601-85714 T05601 HYDRAULIC PUMP
View Diagram -

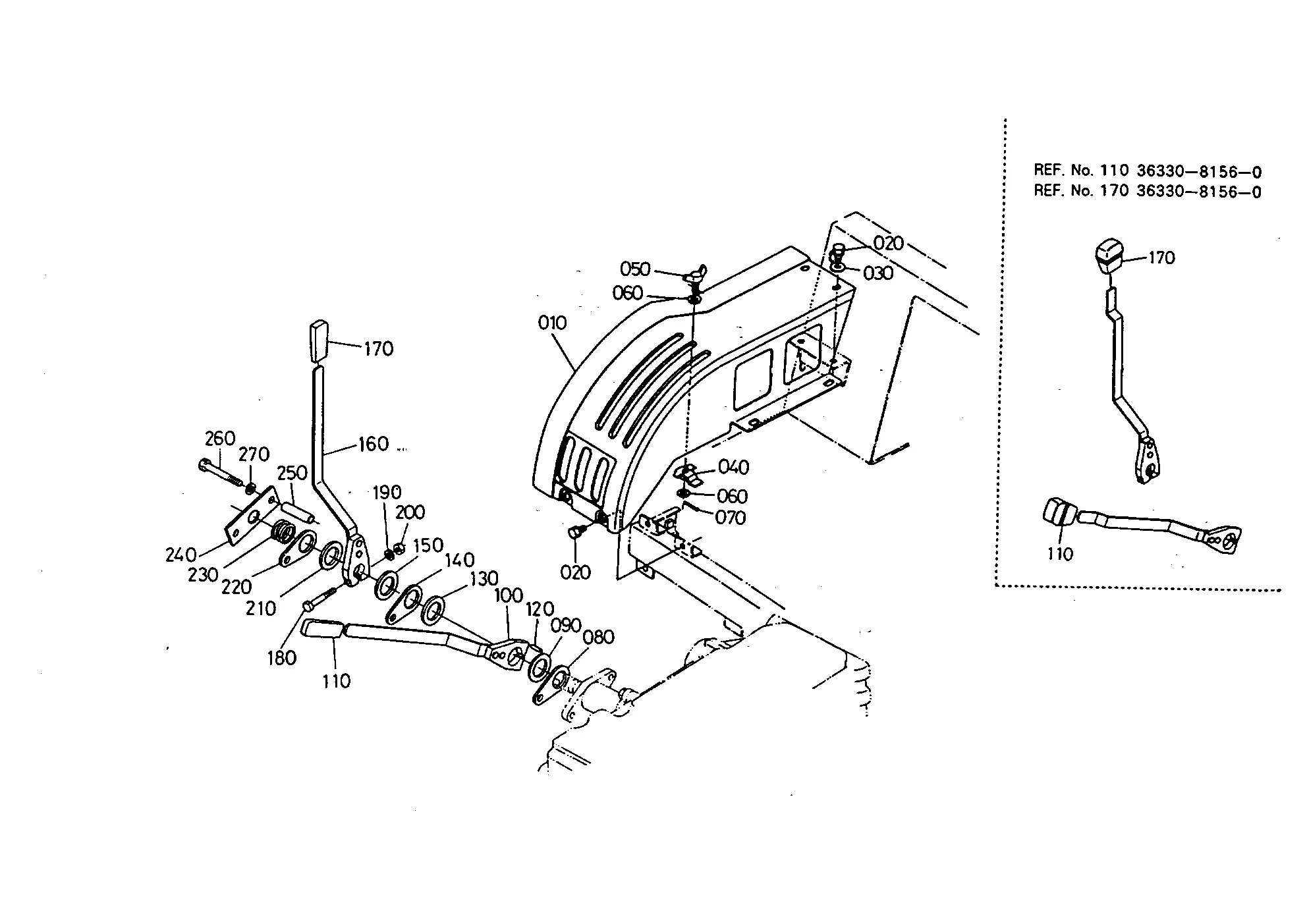

DIAG-T05400-85714 T05400 DRAFT AND POSITION CONTROL LEVER
View Diagram
