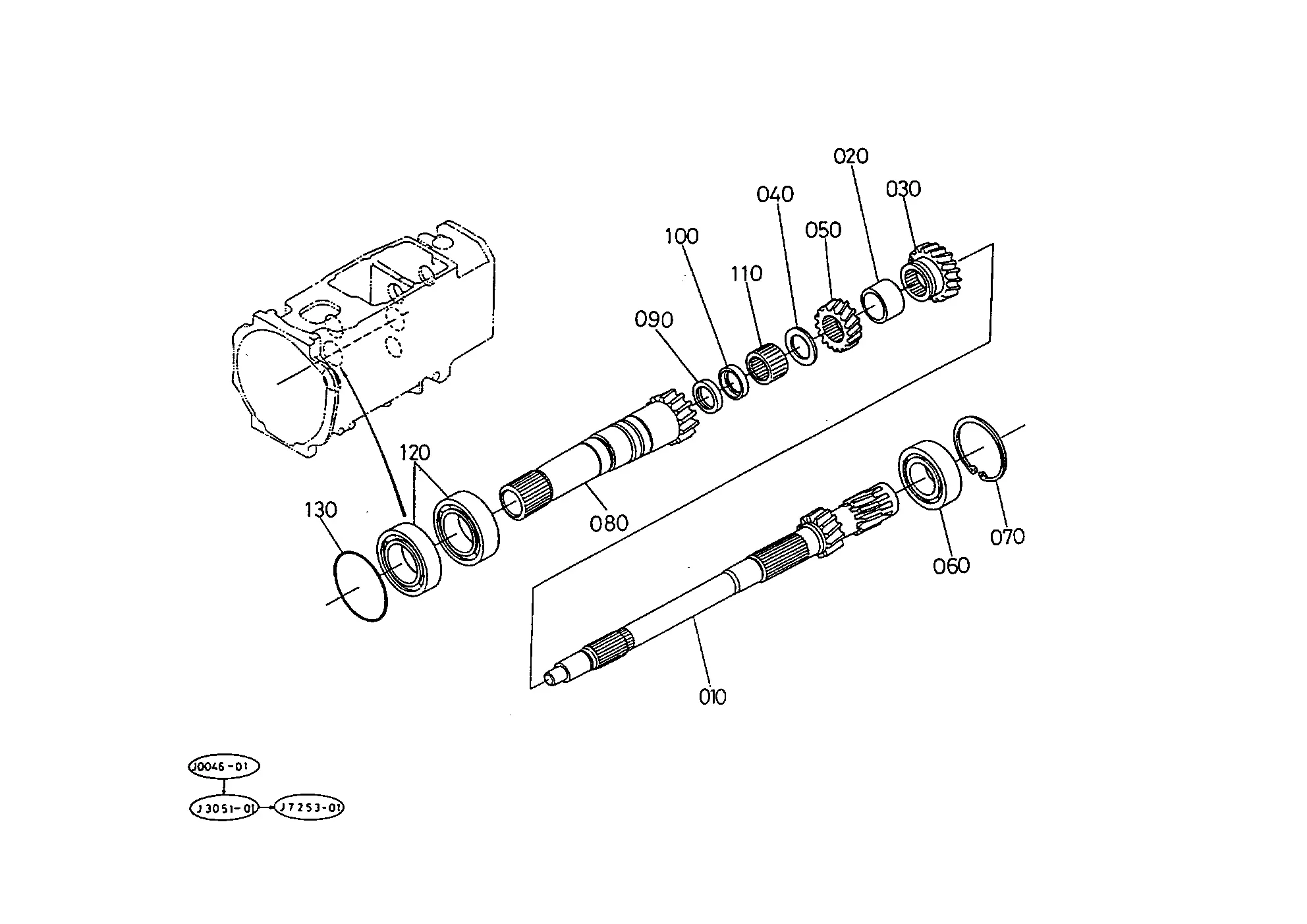

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SHAFT, COUNTER 31351-21610 Discontinued | 1 | $411.56 | |||
| 040 | replaces #37150-21550 CIRCLIP EXTERNAL 37150-21550 37150-21551 | 1 | $13.10 | |||
| 050 | WASHER 2.0MM 34150-21560 | 1 | $10.49 | |||
| 050 | WASHER 2.3MM 38450-23780 | 1 | $14.24 | |||
| 050 | WASHER 2.5MM 38450-23790 | 1 | $16.28 | |||
| 060 | BRG BALL RADIAL2 38280-21690 | 1 | $27.76 | |||
| 070 | COLLAR 32430-21770 | 1 | $221.51 | |||
| 080 | COLLAR, THRUST 31351-21760 | 1 | $9.46 | |||
| 080 | THRUST,COLLAR 32430-21760 Discontinued | 1 | $14.79 | |||
| 090 | GEAR *** 32440-21733 H3240-21730 Discontinued | 1 | $921.51 | |||
| 100 | GEAR 31351-21740 H3130-21740 | 1 | $328.36 | |||
| 110 | RING, INNER 31351-21790 Discontinued | 1 | $88.39 | |||
| 120 | SPLINE, BOSS 31351-21780 Discontinued | 1 | $38.88 | |||
| 130 | SHIFTER 31351-21750 | 1 | $279.68 | |||
| 140 | COLLAR, THRUST 38240-21760 | 1 | $13.47 | |||
| 150 | BRG BALL RADIAL2 32580-44380 67311-14520 | 1 | $26.88 | |||
| 160 | COLLAR 32430-21290 | 1 | $9.75 | |||
| 170 | COUPLING 35300-21660 | 1 | $51.40 | |||
| 190 | GEAR 37T 32430-21710 32430-21712 Discontinued | 1 | $816.72 | |||
| 200 | GEAR 32 32430-21720 Discontinued | 1 | $175.13 | |||
| 210 | COLLAR 32430-21490 67111-14430 | 1 | $7.50 | |||
| 240 | COLLAR (CREEP) 32430-21650 | 1 | $6.01 | |||
| 250 | GEAR 31351-21660 Discontinued | 1 | $163.92 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-T04901-85345 T04901 MAIN SHAFT [WITH DUAL CLUTCH]
View Diagram -
DIAG-T05002-85345 T05002 COUNTERSHAFT 1 [SYNCHRO MESH]
View Diagram -

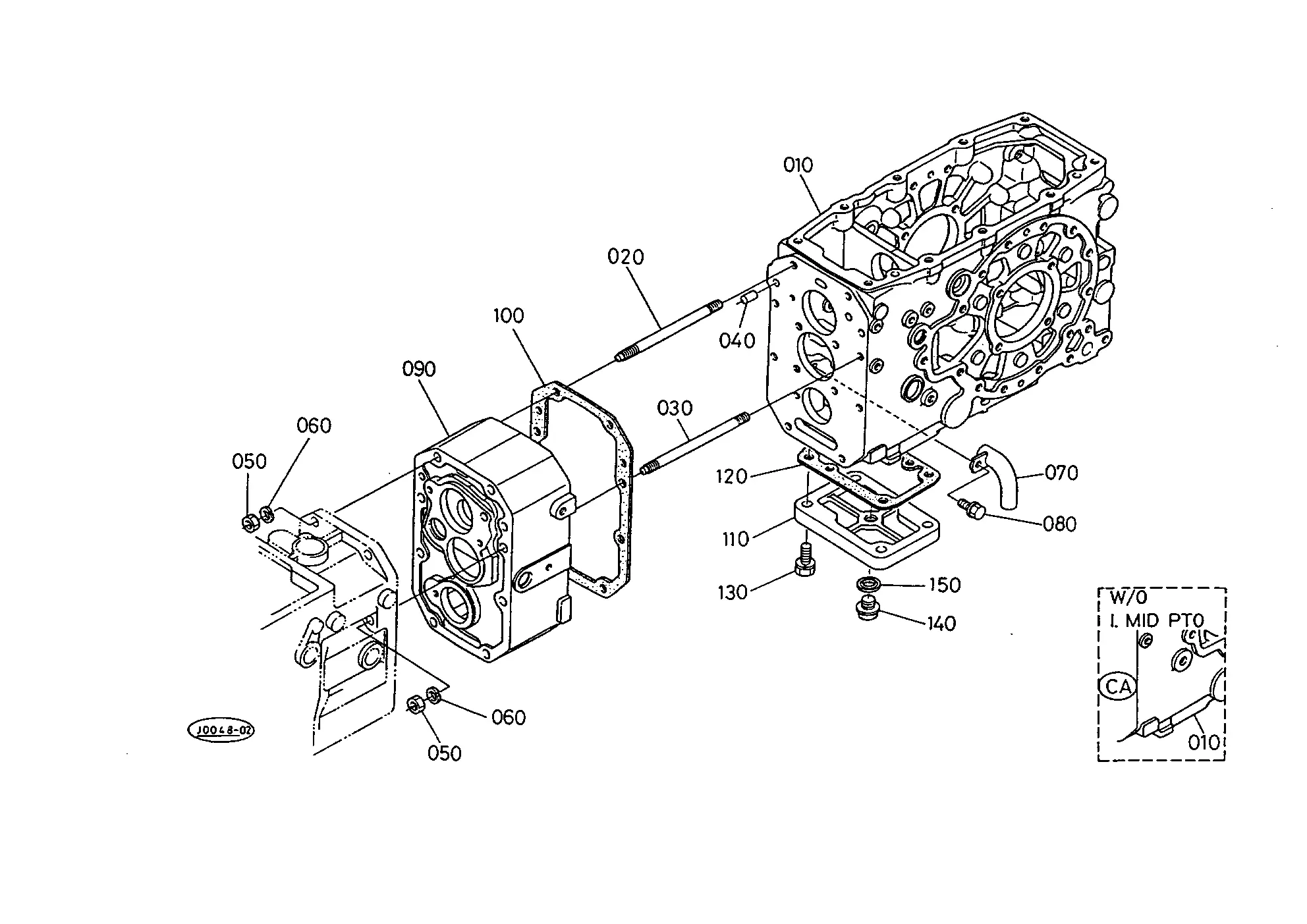

DIAG-T04800-85345 T04800 TRANSMISSION CASE
View Diagram
