Scroll to zoom Click a part # to view details

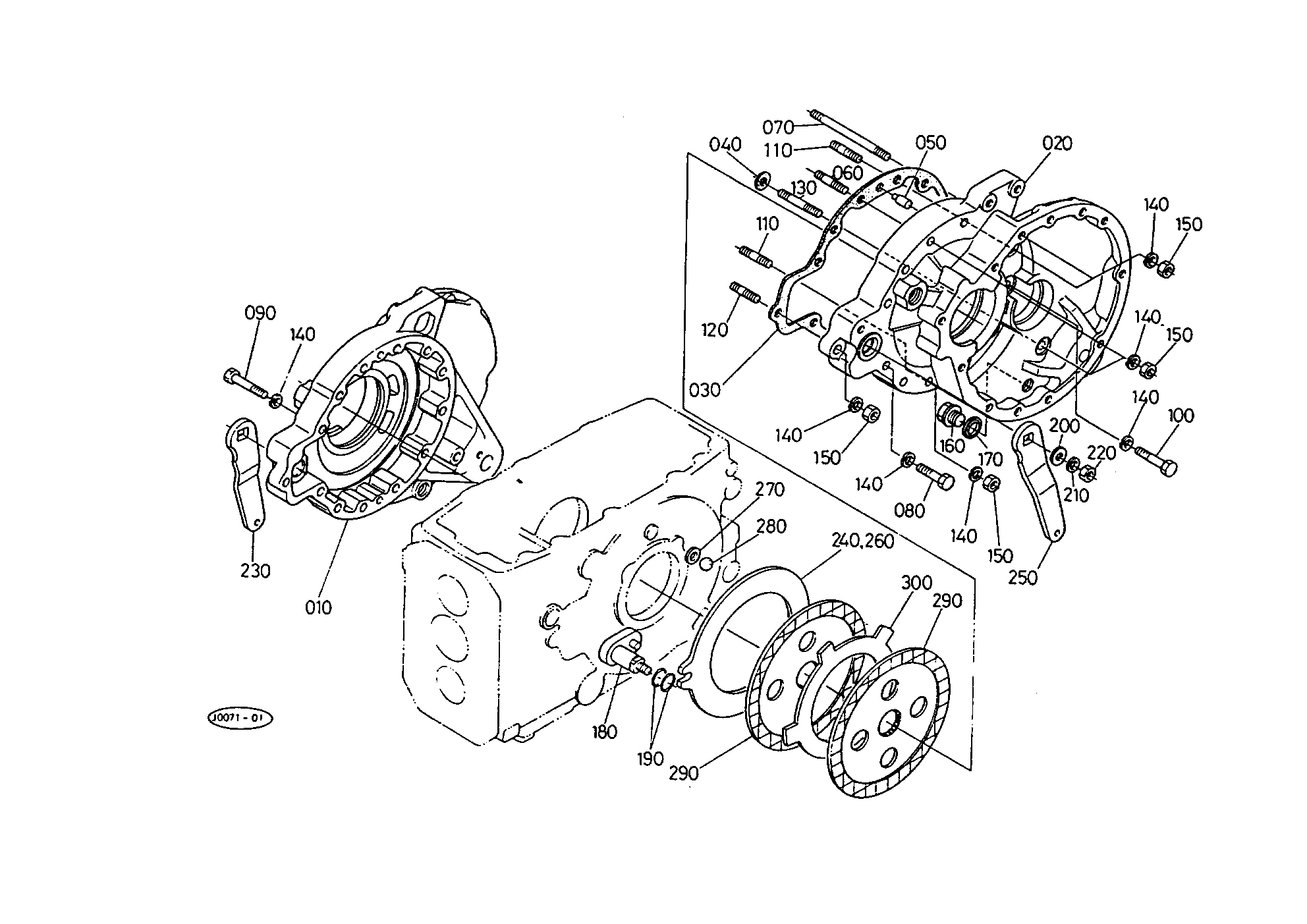

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CLUTCH HOUSING 32430-14110 Discontinued | 1 | $1,404.80 | |||
| 010 | HOUSING CLUTCH(D 32430-14130 32439-14130 Discontinued | 1 | $1,791.86 | |||
| 020 | GASKET 35340-14140 32425-14150 | 1 | $13.70 | |||
| 030 | PLUG 34150-14260 | 1 | $0.00 | |||
| 030 | PLUG,MAGNET 32420-67020 | 1 | $42.13 | |||
| 040 | Seal Washer 04717-02150 | 1 | $2.16 | |||
| 050 | PLUG KIT 32430-14270 | 1 | $16.23 | |||
| 060 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.14 | |||
| 070 | PLUG 38430-21410 H3270-21410 | 1 | $35.54 | |||
| 080 | O'RING 04811-50300 | 1 | $1.42 | |||
| 090 | OIL GAUGE 38240-14210 | 1 | $18.34 | |||
| 100 | PIN, KNOCK 05012-01022 | 1 | $1.91 | |||
| 110 | PLUG, BLIND 32210-27580 | 1 | $2.72 | |||
| 120 | STUD 31351-14120 | 1 | $5.79 | |||
| 130 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
| 140 | Bolt Fastener 01170-51065 01173-51065 | 1 | $3.34 | |||
| 150 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 160 | BOLT, FLANGE 01130-51040 01133-51040 | 1 | $2.87 | |||
| 170 | COVER, HOUSING 32430-14170 Discontinued | 1 | $27.93 | |||
| 180 | GASKET,HOUSING C 32430-14180 | 1 | $26.74 | |||
| 190 | CORRUGATE TUBE 32430-14190 35080-14190 | 1 | $20.56 | |||
| 200 | Bolt 01123-50816 | 1 | $1.21 | |||
| 210 | COVER 31351-14210 | 1 | $58.20 | |||
| 220 | BOLT 01123-50814 | 1 | $0.71 | |||
| 230 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 240 | Seal Washer / Sealing Washer 04717-00080 04717-00800 | 1 | $2.26 | |||
| 250 | GASKET 31351-14220 31351-14222 | 1 | $34.44 | |||
| 260 | CLAMP, CORD * 13824-67580 | 1 | $1.83 | |||
| 260 | CLAMP,CORD * 13816-67580 | 1 | $2.96 | |||
| 270 | PLUG, CREEP PIN 32430-23370 | 1 | $19.12 | |||
| 280 | O-Ring Seal (O Ring) 04811-00200 04816-00200 | 1 | $2.50 | |||
| 310 | BREATHER 32430-14980 32430-14990 Discontinued | 1 | $12.09 | |||
| 320 | BREATHER 32430-14970 Discontinued | 1 | $9.44 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-

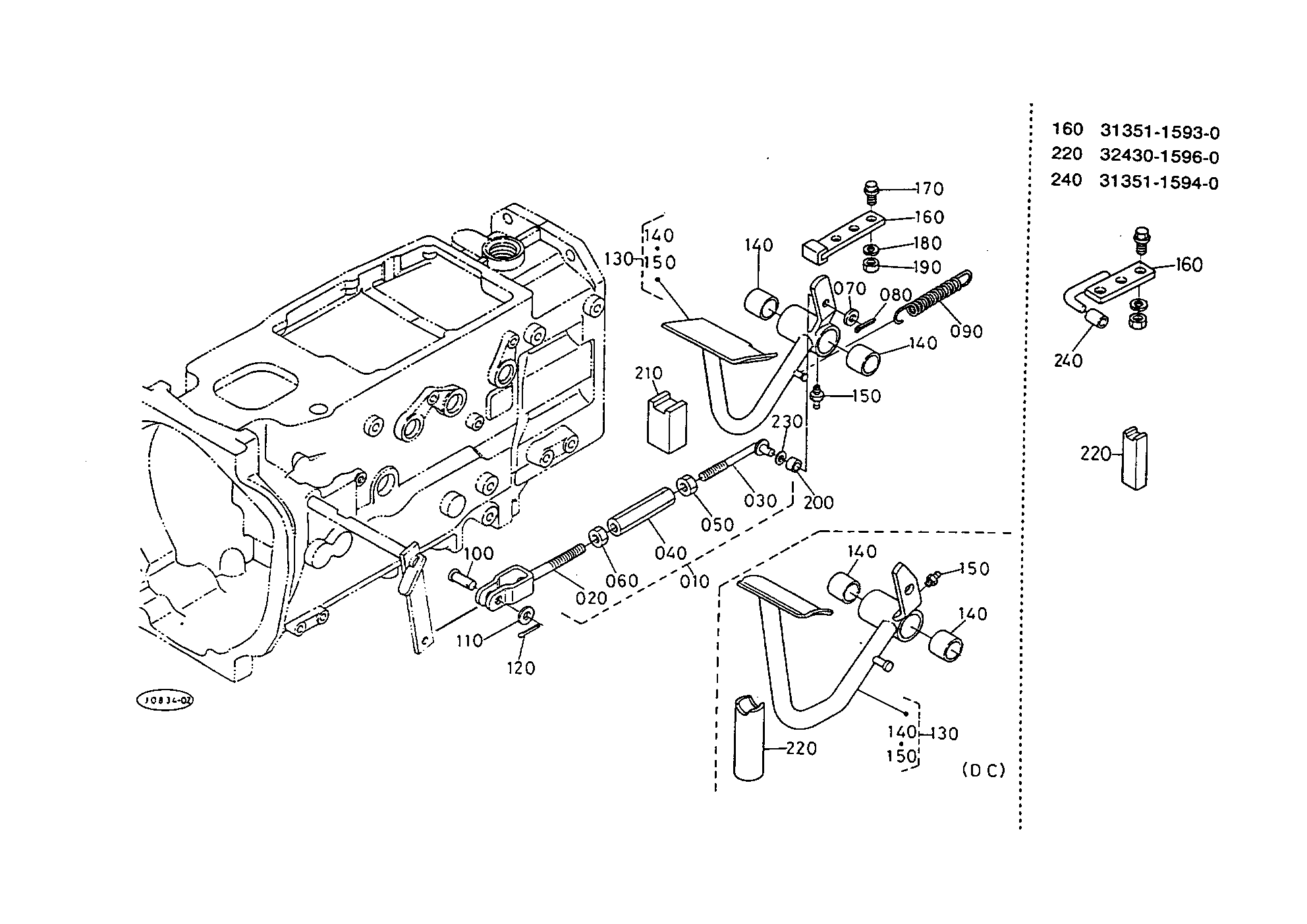

DIAG-T04800-85298 T04800 CLUTCH PEDAL
View Diagram -
DIAG-T07500-85298 T07500 BRAKE
View Diagram -

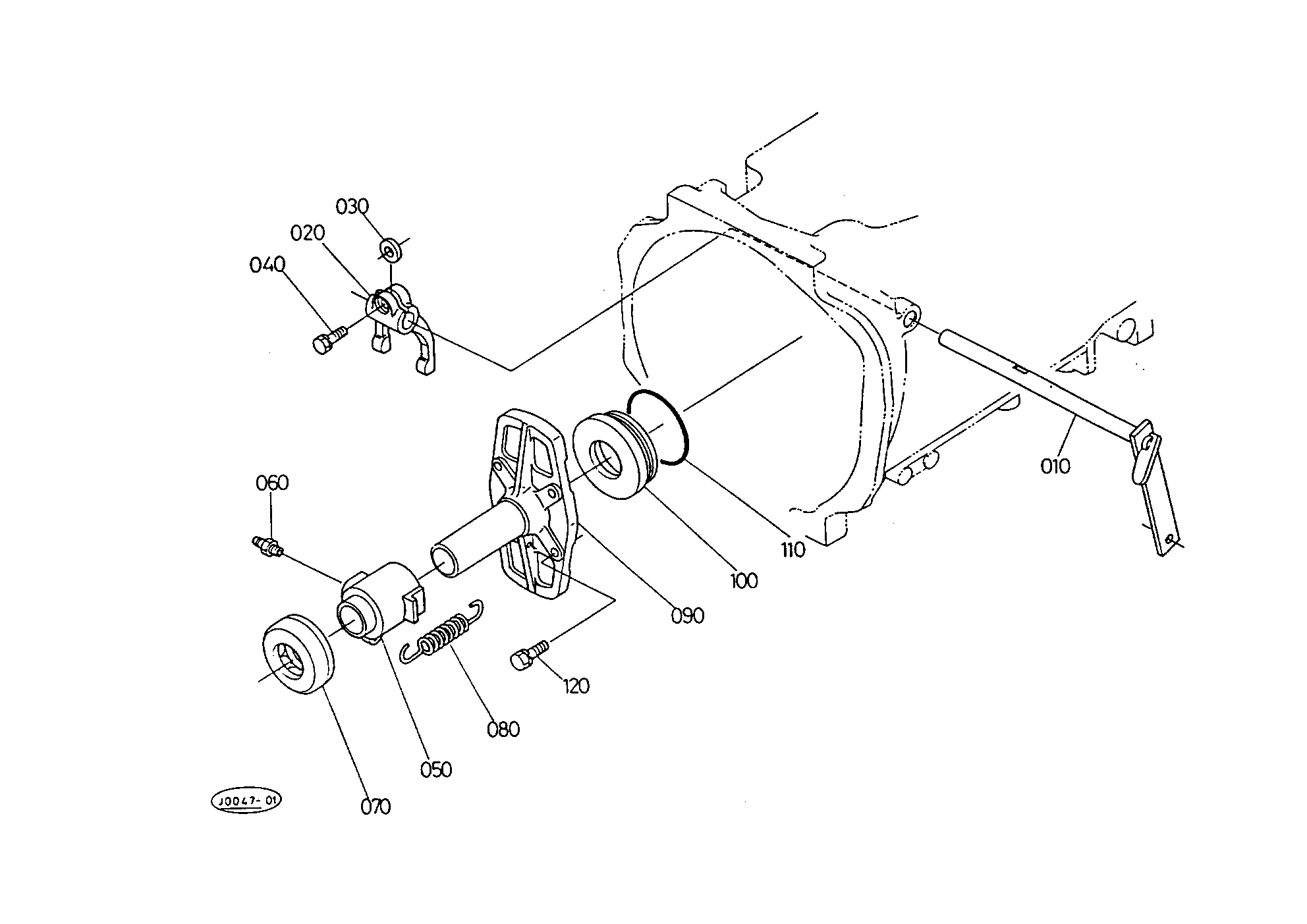

DIAG-T04702-85298 T04702 CLUTCH LEVER (SC)
View Diagram
