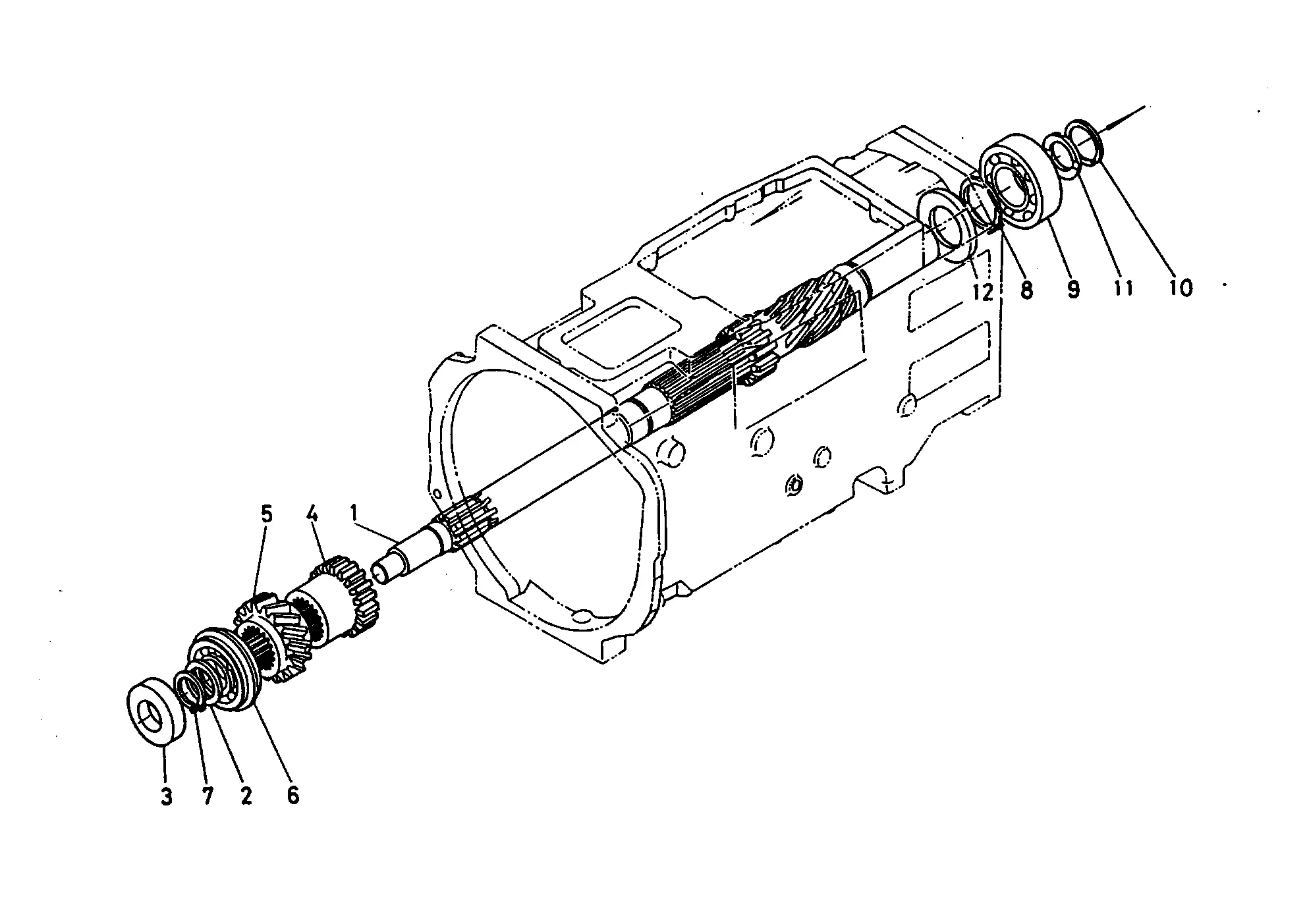

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | SHAFT COUNTER 35110-21610 Discontinued | 1 | $350.06 | |||
| 002 | COLLAR THRUST 37150-21760 | 1 | $15.35 | |||
| 003 | CIR-CLIP 37150-21790 | 1 | $3.15 | |||
| 004 | BRG BALL RADIAL2 08151-06205 | 1 | $19.77 | |||
| 005 | replaces #37150-21550 CIRCLIP EXTERNAL 37150-21550 37150-21551 | 1 | $13.10 | |||
| 006 | GEAR 32 35110-21710 | 1 | $300.01 | |||
| 007 | GEAR 41 37150-21720 Discontinued | 1 | $256.09 | |||
| 008 | GEAR 45 37150-21730 Discontinued | 1 | $150.91 | |||
| 009 | GEAR 45 37150-21740 | 1 | $372.65 | |||
| 010 | Spindle Ball Bearing 6A700-16570 08101-06205 | 1 | $11.98 | |||
| 011 | COVER 34150-21650 | 1 | $17.72 | |||
| 012 | COLLAR 37150-21770 Discontinued | 1 | $5.63 | |||
| 013 | BOSS 37150-21750 | 1 | $23.57 | |||
| 014 | CIR-CLIP 35340-21780 35340-21782 | 1 | $4.85 | |||
| 014 | SNAP RING ASSY. 37150-21780 35110-99120 | 1 | $24.87 | |||
| 015 | SHAFT ** 35219-21810 Discontinued | 1 | $69.75 | |||
| 016 | COUPLING 37150-21680 37150-21682 | 1 | $64.29 | |||
| 018 | RETAINER, BEARIN 34150-21940 34150-21942 | 1 | $8.44 | |||
| 019 | BOLT 01150-50820 01153-50820 | 1 | $1.37 | |||
| 020 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 022 | SHAFT 35219-21910 Discontinued | 1 | $67.84 | |||
| 023 | COUPLING 35110-21680 | 1 | $90.84 | |||
| 025 | Circlip Retaining Ring (Snap Ring) 04612-10300 04612-00300 | 1 | $1.31 | |||
| 026 | GEAR 35T 35219-21920 Discontinued | 1 | $67.84 | |||
| 027 | 6305 Deep Groove Ball Bearing T2050-23480 08101-06305 | 1 | $15.41 | |||
| 028 | COLLAR 37150-21940 | 1 | $7.77 | |||
| 029 | BRG BALL RADIAL2 08151-06305 | 1 | $21.08 | |||
| 033 | SHAFT BACK 37150-23110 | 1 | $47.83 | |||
| 034 | SCREW 37150-23120 | 1 | $3.37 | |||
| 035 | Seal Washer / Sealing Washer 04717-00080 04717-00800 | 1 | $2.26 | |||
| 036 | GEAR ASSY 37150-23100 | 1 | $299.03 | |||
| 037 | BUSH, DIFF. PINI 31220-26366 31220-26360 | 1 | $45.92 | |||
| 038 | WIRE 35340-21790 35340-21792 | 1 | $0.92 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-T03900-85277 T03900 MAIN SHAFT
View Diagram -
DIAG-T04101-85277 T04101 PTO COUNTER SHAFT [OLD TYPE]
View Diagram -
DIAG-T03800-85277 T03800 TRANSMISSION CASE
View Diagram
