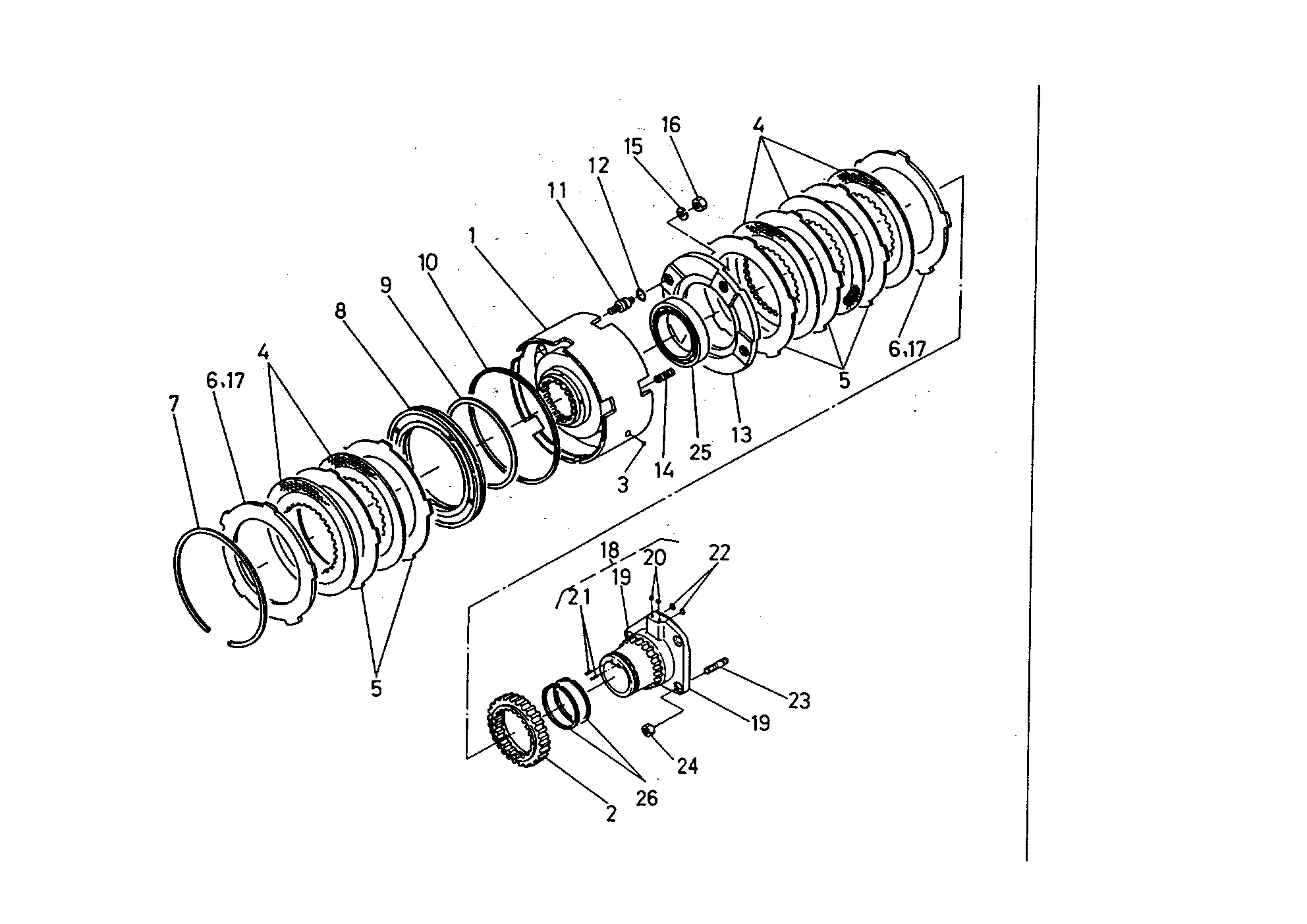

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | CLUTCH BODY ASSY 36530-27102 Discontinued | 1 | $656.80 | |||
| 003 | BALL, PISTON CRA 07715-03207 | 1 | $0.33 | |||
| 004 | CLUTCH PTO.SHAFT 36530-27122 Discontinued | 1 | $198.36 | |||
| 005 | BUSH, DIFF. PINI 31220-26366 31220-26360 | 1 | $29.40 | |||
| 006 | BRG BALL RADIAL3 08151-06306 | 1 | $20.03 | |||
| 007 | Circlip Retaining Ring (Snap Ring) 04612-10300 04612-00300 | 1 | $0.77 | |||
| 008 | DISK, CLUTCH 36530-27130 36530-27133 | 1 | $56.97 | |||
| 009 | PLATE (DRIVE) 36530-27140 H3650-27140 | 1 | $108.89 | |||
| 010 | PRESSURE PLATE 36530-27150 Discontinued | 1 | $105.66 | |||
| 011 | INTER.CIR-CLIP 36530-27160 | 1 | $64.28 | |||
| 012 | BOSS SPLINE 36530-27180 | 1 | $177.65 | |||
| 013 | PISTON 36530-27190 Discontinued | 1 | $218.39 | |||
| 014 | O-RING 36530-27210 | 1 | $25.89 | |||
| 015 | O-RING 36530-27220 | 1 | $13.95 | |||
| 016 | SPRING 36530-27230 | 1 | $49.21 | |||
| 017 | WASHER 36530-27240 | 1 | $24.83 | |||
| 018 | O-Ring Seal 04612-00500 | 1 | $1.73 | |||
| 019 | CLUTCH BODY SUPP 36530-27252 Discontinued | 1 | $211.06 | |||
| 020 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 021 | RING, SEAL 36530-27260 | 1 | $36.25 | |||
| 022 | PIPE, HYDRAULIC 36530-27270 36530-27273 | 1 | $25.23 | |||
| 023 | BRAKE 36530-27315 H3650-27312 Discontinued | 1 | $243.09 | |||
| 024 | BRAKE LEVER BRKT 36530-27320 Discontinued | 1 | $28.52 | |||
| 025 | Bolt 01123-50816 | 1 | $1.21 | |||
| 026 | BRAKE LEVER 36530-27330 | 1 | $31.53 | |||
| 027 | BOLT, BRAKE ADJU 36530-27360 | 1 | $10.39 | |||
| 028 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.43 | |||
| 029 | SPRING 36530-27340 Discontinued | 1 | $2.80 | |||
| 030 | PIN 05112-50840 05122-50840 | 1 | $2.26 | |||
| 031 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.14 | |||
| 032 | PIN, SPLIT 05511-20215 05511-50215 | 1 | $0.14 | |||
| 033 | SHIM 36530-27350 | 1 | $8.04 | |||
| 034 | PIN, JOINT *** 05112-50825 05122-50825 | 1 | $2.26 | |||
| 037 | CIR-CLIP, EXTERN 37880-44270 36330-80660 | 1 | $7.97 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-
DIAG-T03800-85882 T03800 CLUTCH VALVE
View Diagram -

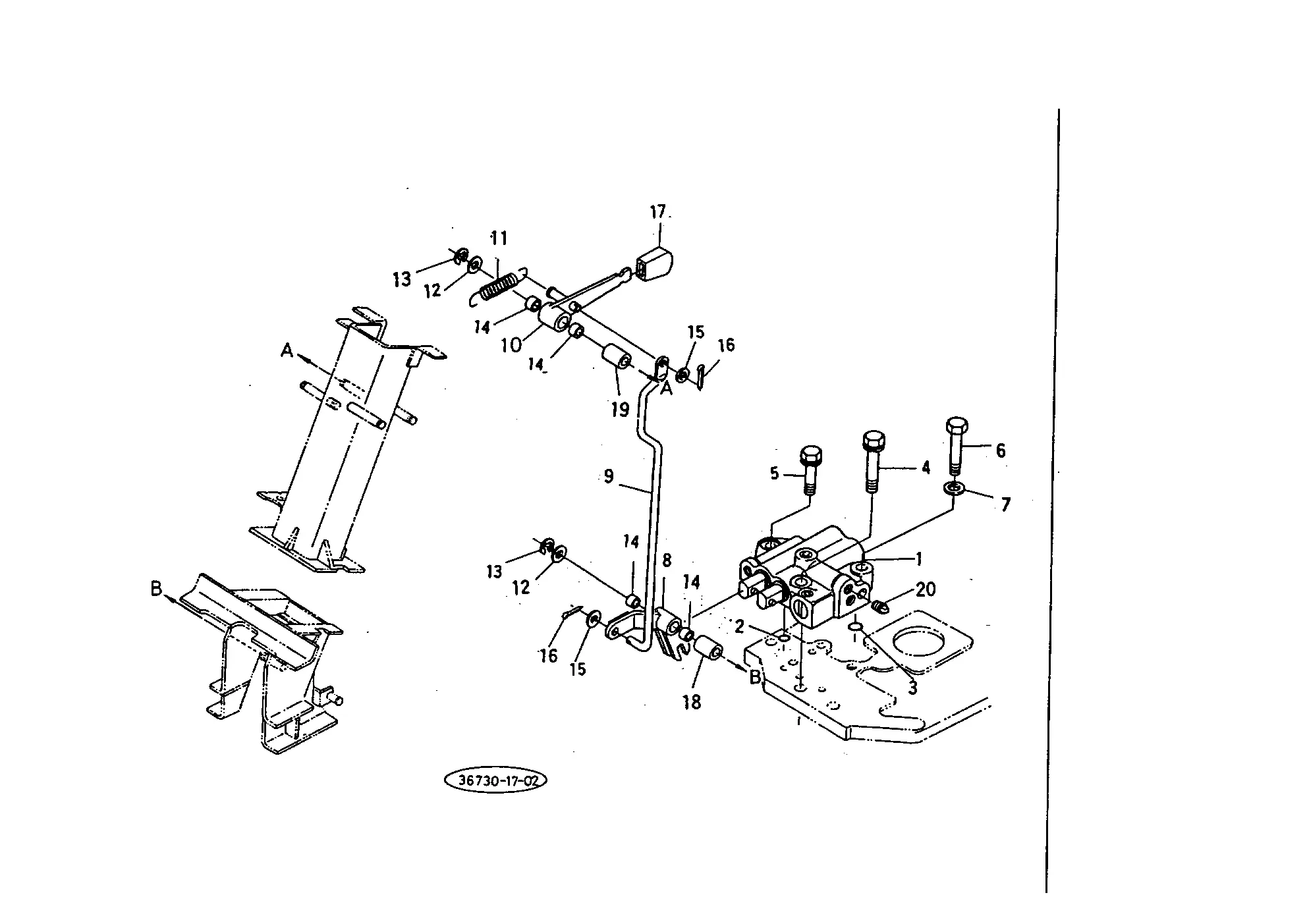

DIAG-T04000-85882 T04000 PTO CLUTCH VALVE
View Diagram -
DIAG-T03700-85882 T03700 CLUTCH BODY
View Diagram
