Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | STARTER ASSY 15741-63010 | 1 | $502.31 | |||
| 020 | YOKE 15501-63080 Discontinued | 1 | $256.13 | |||
| 030 | BRUSH KIT 15501-63370 | 1 | $13.78 | |||
| 040 | ARMATURE 15501-63070 Discontinued | 1 | $437.93 | |||
| 050 | BRG BALL RADIAL1 15504-63500 | 1 | $28.79 | |||
| 060 | BRG BALL RADIAL1 15504-63530 | 1 | $28.79 | |||
| 070 | CLUTCH, OVER-RUN 15504-63040 | 1 | $469.82 | |||
| 080 | HOUSING 15504-63030 | 1 | $191.44 | |||
| 090 | SWITCH, MAGNETIC 15504-63020 16871-63020 | 1 | $632.61 | |||
| 100 | HOLDER, BRUSH 15501-63380 | 1 | $70.71 | |||
| 110 | SPRING,BRUSH * 15401-63390 | 1 | $3.59 | |||
| 120 | FRAME, END 15501-63200 Discontinued | 1 | $45.74 | |||
| 130 | GEAR, SPUR 2 15521-63270 15401-63270 | 1 | $57.90 | |||
| 140 | ROLLER 19212-63100 | 1 | $2.37 | |||
| 150 | RETAINER 19212-63110 | 1 | $9.63 | |||
| 160 | BALL, STEEL 15521-97131 19212-97130 | 1 | $1.45 | |||
| 170 | SPRING 19212-63120 | 1 | $4.00 | |||
| 180 | WASHER, FELT 15501-96670 | 1 | $1.76 | |||
| 190 | SCREW, PAN HEAD 15501-93310 Discontinued | 1 | $1.59 | |||
| 200 | BOLT, THROUGH 15501-63320 | 1 | $13.99 | |||
| 210 | BOLT 15501-91020 | 1 | $2.86 | |||
| 220 | NUT, HEX 13963-92010 | 1 | $5.94 | |||
| 230 | COVER, CORD 15504-63120 | 1 | $12.89 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

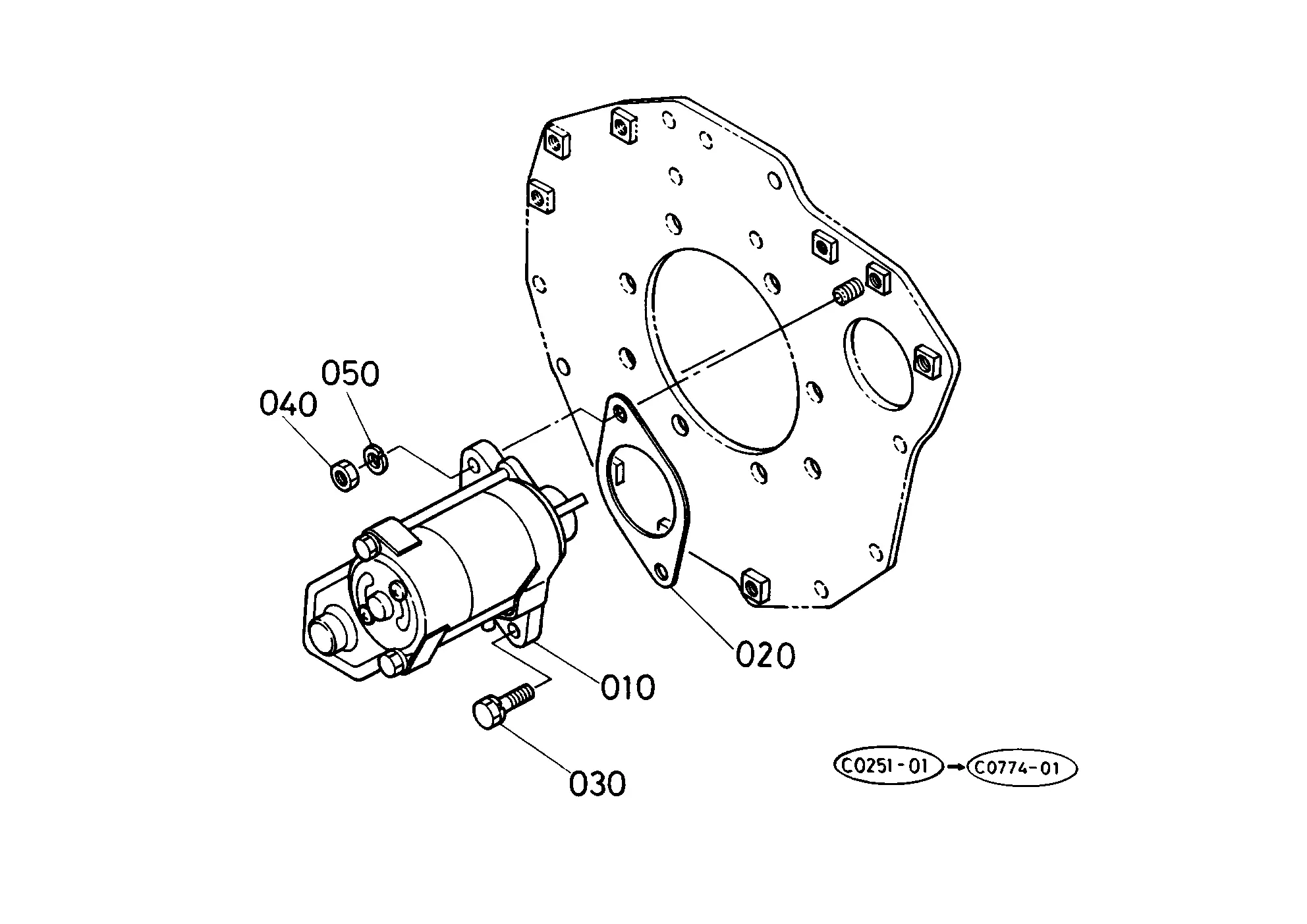

DIAG-T03500-84641 T03500 STARTER
View Diagram -

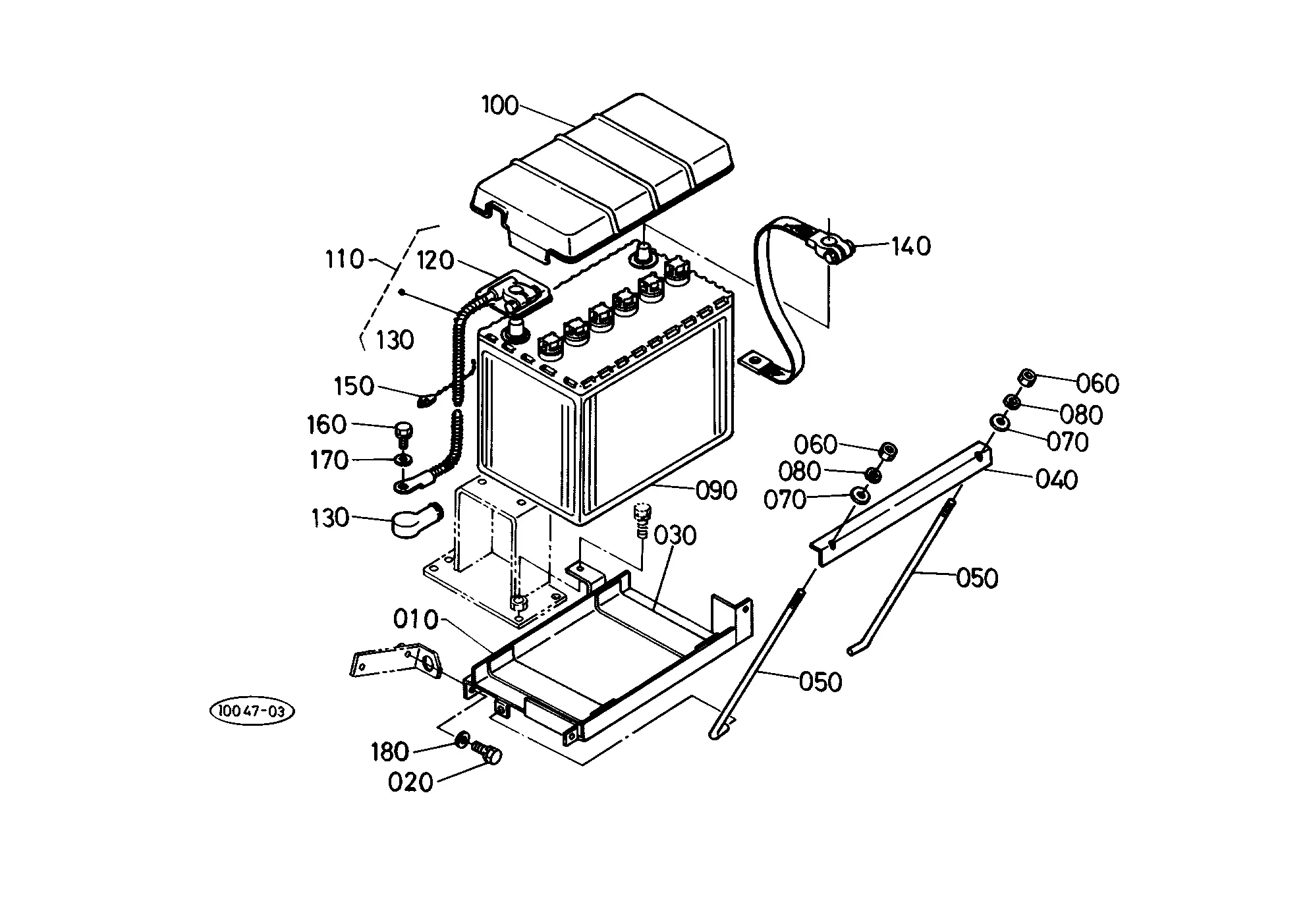

DIAG-T03700-84641 T03700 BATTERY
View Diagram -
DIAG-T03400-84641 T03400 DYNAMO (COMPONENT PARTS)(NOT FOR REMAN UNIT)
View Diagram
