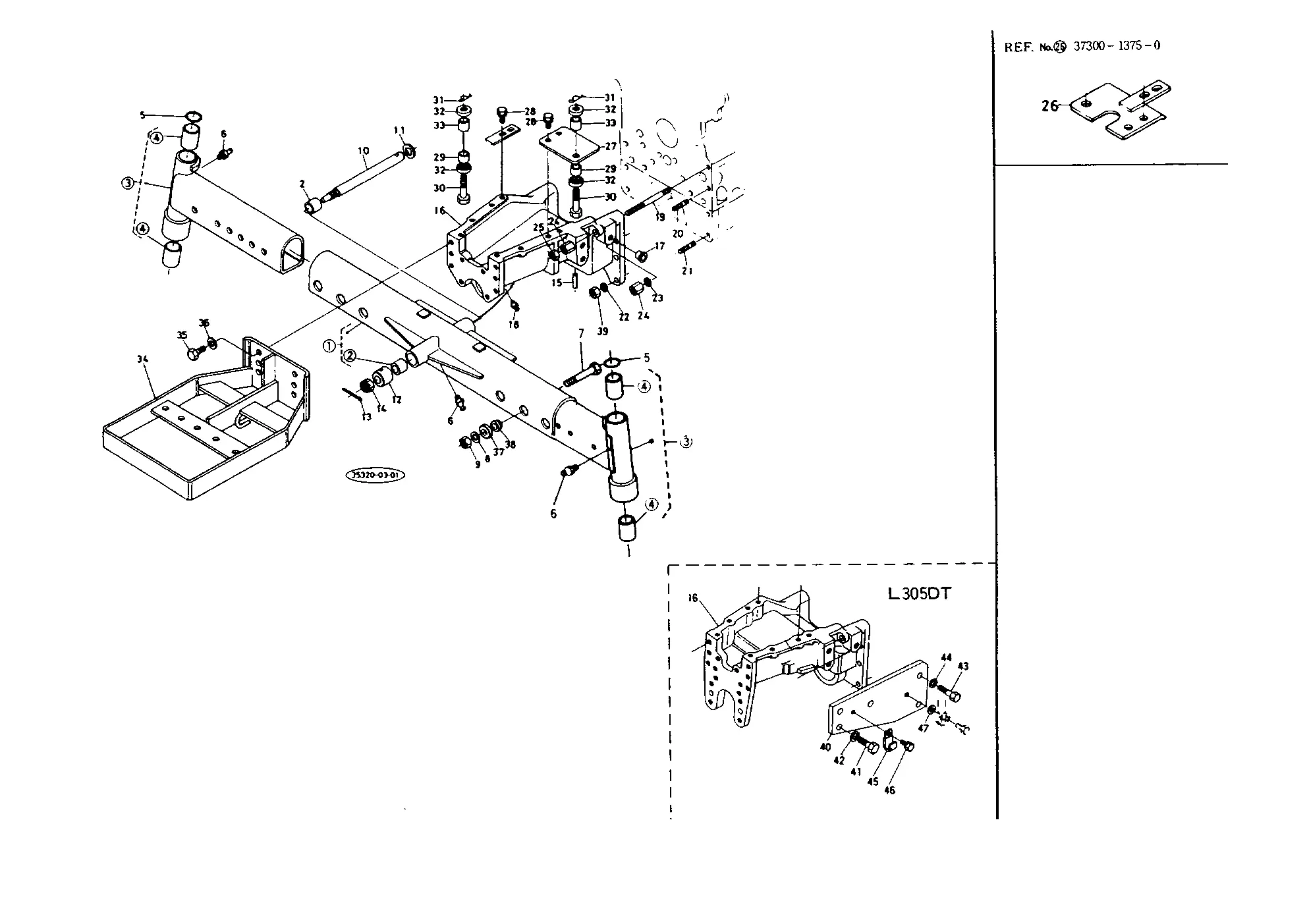

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | CAST TRANSMISSIO 35340-21113 Discontinued | 1 | $1,216.30 | |||
| 002 | PLUG, BLIND 32210-27580 | 1 | $2.72 | |||
| 003 | PLUG 31220-14293 31220-14290 | 1 | $0.96 | |||
| 004 | COVER (52 ERROR) 37150-21270 Discontinued | 1 | $84.55 | |||
| 005 | Transmission Case and Front Drive Gasket 37150-21282 32425-21280 | 1 | $9.87 | |||
| 006 | PLUG 34150-14260 | 1 | $0.00 | |||
| 007 | Seal Washer 04717-02150 | 1 | $2.16 | |||
| 008 | BOLT 01170-51235 01173-51235 | 1 | $2.54 | |||
| 009 | Spring Washer (Lock Washer) 04512-50120 | 1 | $0.16 | |||
| 010 | BOLT 01222-50816 | 1 | $1.35 | |||
| 011 | Spring Washer 04512-50080 | 1 | $0.14 | |||
| 012 | BRACKET, RH LWR 37300-71220 | 1 | $176.64 | |||
| 013 | BRACKET, LH LWR 37300-71230 Discontinued | 1 | $185.06 | |||
| 014 | BOLT 01176-51232 | 1 | $3.71 | |||
| 016 | FRAME 35320-29710 Discontinued | 1 | $449.81 | |||
| 017 | BOLT 01170-51430 01173-51430 | 1 | $1.46 | |||
| 018 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.14 | |||
| 019 | SUPPORT LINK 35320-29720 Discontinued | 1 | $70.65 | |||
| 020 | DRAWBAR 99553-78210 | 1 | $403.21 | |||
| 021 | DRAWBAR 99533-78240 | 1 | $233.05 | |||
| 022 | BOLT 01170-51665 01173-51665 | 1 | $3.93 | |||
| 023 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
| 024 | Nut Fastener 02173-50160 02174-50160 | 1 | $2.26 | |||
| 025 | PIN 37300-29780 | 1 | $39.35 | |||
| 026 | PIN, SPRING 37307-71280 70515-16330 | 1 | $13.10 | |||
| 027 | PIN 99533-78250 | 1 | $51.30 | |||
| 028 | 3-Point Hitch Pin Set 34150-37644 34150-37640 | 1 | $8.66 | |||
| 029 | PROTECTOR 35320-25330 Discontinued | 1 | $145.68 | |||
| 030 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.22 | |||
| 031 | Bolt - Equipment Fastener 01130-51025 01133-51025 | 1 | $1.65 | |||
| 032 | SUPPORT 35320-25440 Discontinued | 1 | $20.37 | |||
| 033 | L-Series Tractor Front Wheel/Front Axle Stud Fastener 01517-51428 | 1 | $3.37 | |||
| 034 | NUT 02174-50140 | 1 | $0.90 | |||
Showing 1 to 33 of 33 parts
