Kubota M5950-S T03202 OIL PAN [NEW TYPE] Parts Diagram

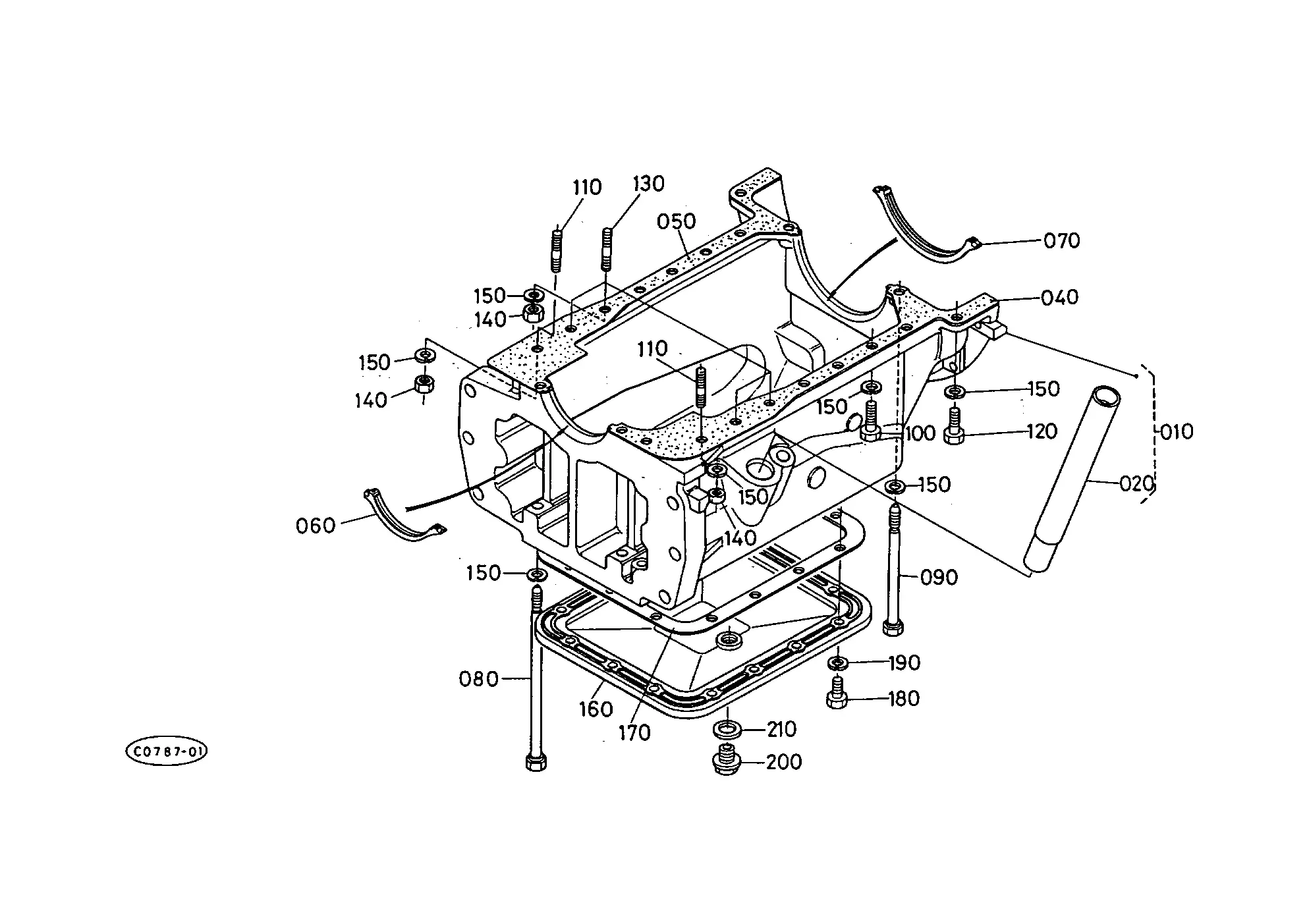

Exploded-view parts diagram "T03202 OIL PAN [NEW TYPE]" for the Kubota M5950-S and Kubota M5950DT-S. 22 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| PLUG 33300-90910 | 1 | $1.09 | ||||
| 010 | PAN, OIL ASSY 15571-01504 Discontinued | 1 | $2,061.47 | |||
| 020 | PIPE 15571-33110 Discontinued | 1 | $34.68 | |||
| 040 | GASKET, OIL PAN 15351-01620 16531-01620 Discontinued | 1 | $32.71 | |||
| 050 | GASKET, OIL PAN 16531-01630 16530-01630 | 1 | $38.09 | |||
| 060 | GASKET, OIL PAN 16541-01640 | 1 | $26.77 | |||
| 070 | GASKET, OIL PAN 16541-01650 | 1 | $51.63 | |||
| 080 | BOLT 15451-91010 | 1 | $49.91 | |||
| 090 | BOLT 15451-91020 Discontinued | 1 | $23.45 | |||
| 100 | BOLT 15481-91010 | 1 | $3.12 | |||
| 110 | STUD 15481-91500 | 1 | $9.38 | |||
| 120 | BOLT 01076-51038 | 1 | $4.08 | |||
| 130 | STUD 2 15454-91500 | 1 | $10.22 | |||
| 140 | STUD 16541-91500 | 1 | $47.13 | |||
| 150 | STUD 16541-91510 | 1 | $18.47 | |||
| 160 | NUT 02076-50100 | 1 | $0.80 | |||
| 170 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 180 | COVER, OIL PAN * 15351-01670 Discontinued | 1 | $132.51 | |||
| 190 | GASKET 15351-01680 15352-01680 Discontinued | 1 | $51.90 | |||
| 200 | Bolt (Fastener) 01023-50818 01123-50818 | 1 | $0.87 | |||
| 210 | PLUG, DRAIN 15451-33750 15707-33750 | 1 | $12.59 | |||
| 220 | Copper Gasket 15451-96671 15451-96670 | 1 | $2.34 | |||
Showing 1 to 22 of 22 parts
