Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PUMP,WATER,ASSY 15481-73030 15481-73037 | 1 | $386.68 | |||
| 020 | GASKET 15481-73330 | 1 | $5.75 | |||
| 030 | Bolt 01120-50822 01123-50822 | 1 | $1.26 | |||
| 040 | FLANGE 15481-73320 | 1 | $76.04 | |||
| 050 | COVER* 15481-73770 | 1 | $68.31 | |||
| 060 | Water Pump Gasket 15481-73430 | 1 | $18.15 | |||
| 070 | BRG BALL RADIAL1 15481-73550 | 1 | $70.26 | |||
| 080 | IMPELLER, WATER 15481-73510 | 1 | $57.63 | |||
| 090 | SEAL, MECHANICAL 15481-73050 Discontinued | 1 | $33.51 | |||
| 100 | FLANGE, WATER PU 15481-73520 | 1 | $68.24 | |||
| 110 | BOLT, SET 15481-73590 | 1 | $15.43 | |||
| 120 | Spring Washer 04512-50080 | 1 | $0.14 | |||
| 130 | SCREW, CSK HD 03016-60816 03016-50816 | 1 | $1.10 | |||
| 140 | PLUG 15451-96040 | 1 | $10.64 | |||
| 150 | FAN 15484-74110 | 1 | $225.88 | |||
| 160 | BOLT 01150-51045 01153-51045 | 1 | $1.19 | |||
| 170 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.22 | |||
| 180 | BOLT, FLANGE 01774-51080 | 1 | $6.12 | |||
| 190 | BOLT, FLANGE 01774-51055 | 1 | $4.70 | |||
| 210 | PULLEY, FAN 15451-74250 | 1 | $109.53 | |||
| 220 | PULLEY, FAN DRIV 15453-74280 | 1 | $145.82 | |||
| 230 | FLANGE, PULLEY 15451-74293 | 1 | $259.70 | |||
| 240 | KEY, FEATHER 05712-01030 | 1 | $4.09 | |||
| 250 | NUT, CRANKSHAFT 15451-23360 15451-23362 | 1 | $121.60 | |||
| 260 | BOLT 01133-51055 | 1 | $2.42 | |||
| 280 | Fan Belt 15451-97010 | 1 | $10.83 | |||
| 280 | Fan Belt 15451-99380 | 1 | $16.94 | |||
| 290 | O-RING 04811-40150 | 1 | $1.59 | |||
| 300 | SCREW, CSK-HD 03016-60616 03016-50616 | 1 | $0.51 | |||
| 310 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 320 | GASKET 15451-96680 | 1 | $3.59 | |||
| 330 | COLLAR, FAN 15484-74150 | 1 | $382.13 | |||
| 340 | BOLT 01120-50840 01123-50840 | 1 | $1.77 | |||
| 350 | Washer 04011-50080 04012-50080 | 1 | $4.16 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-

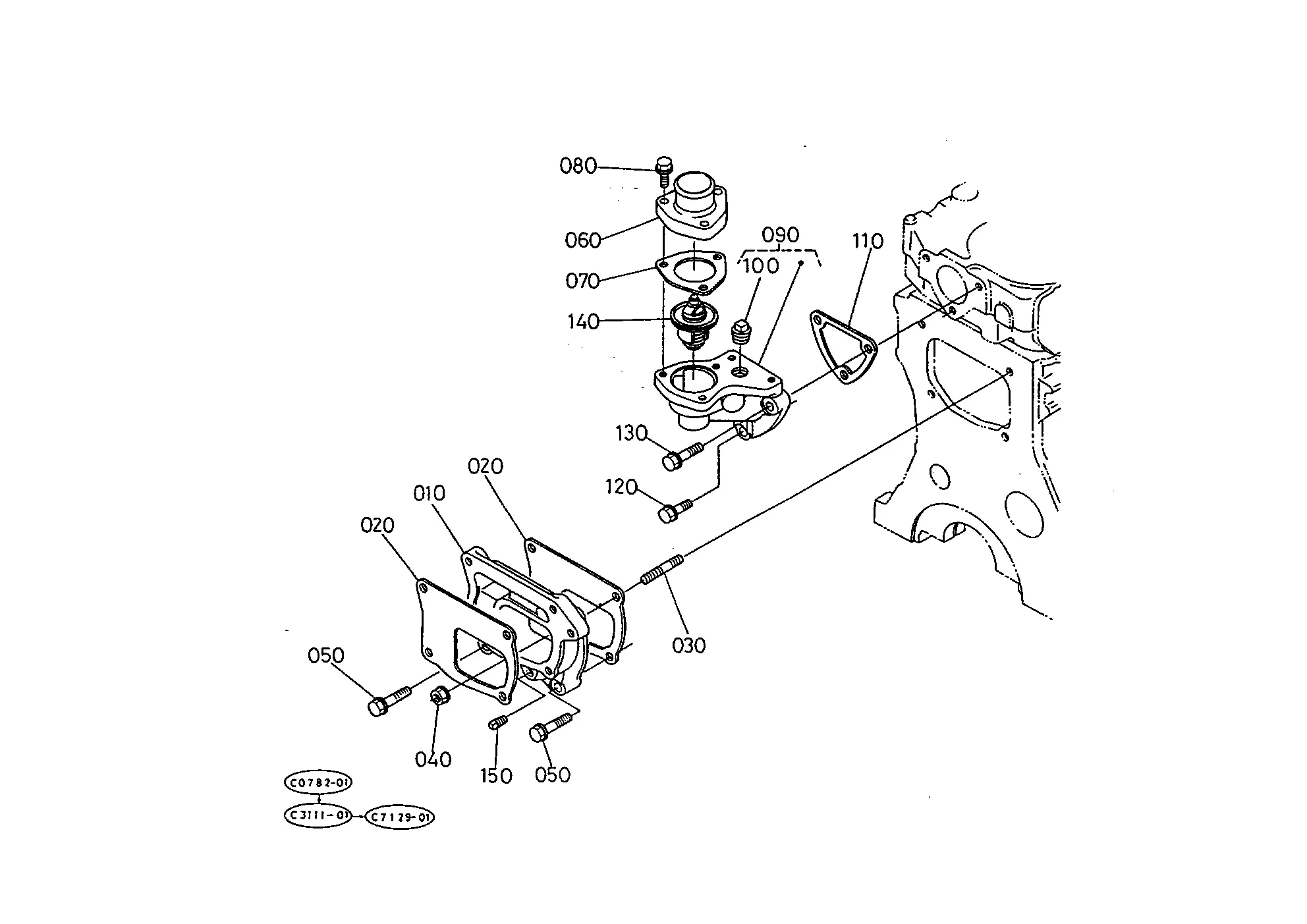

DIAG-T02700-85884 T02700 WATER PUMP SUPPORT AND THERMOSTAT
View Diagram -

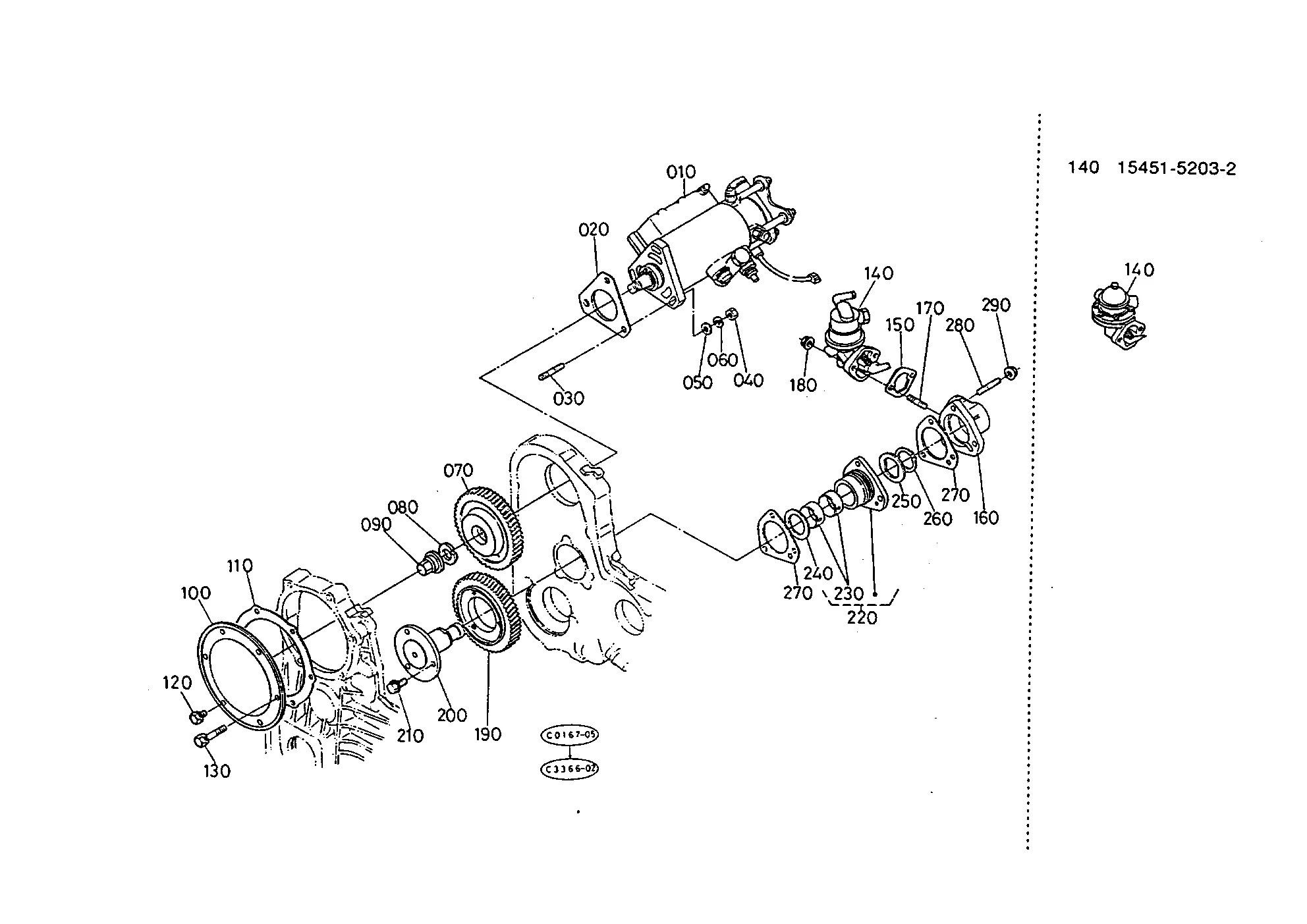

DIAG-T02900-85884 T02900 INJECTION PUMP
View Diagram -

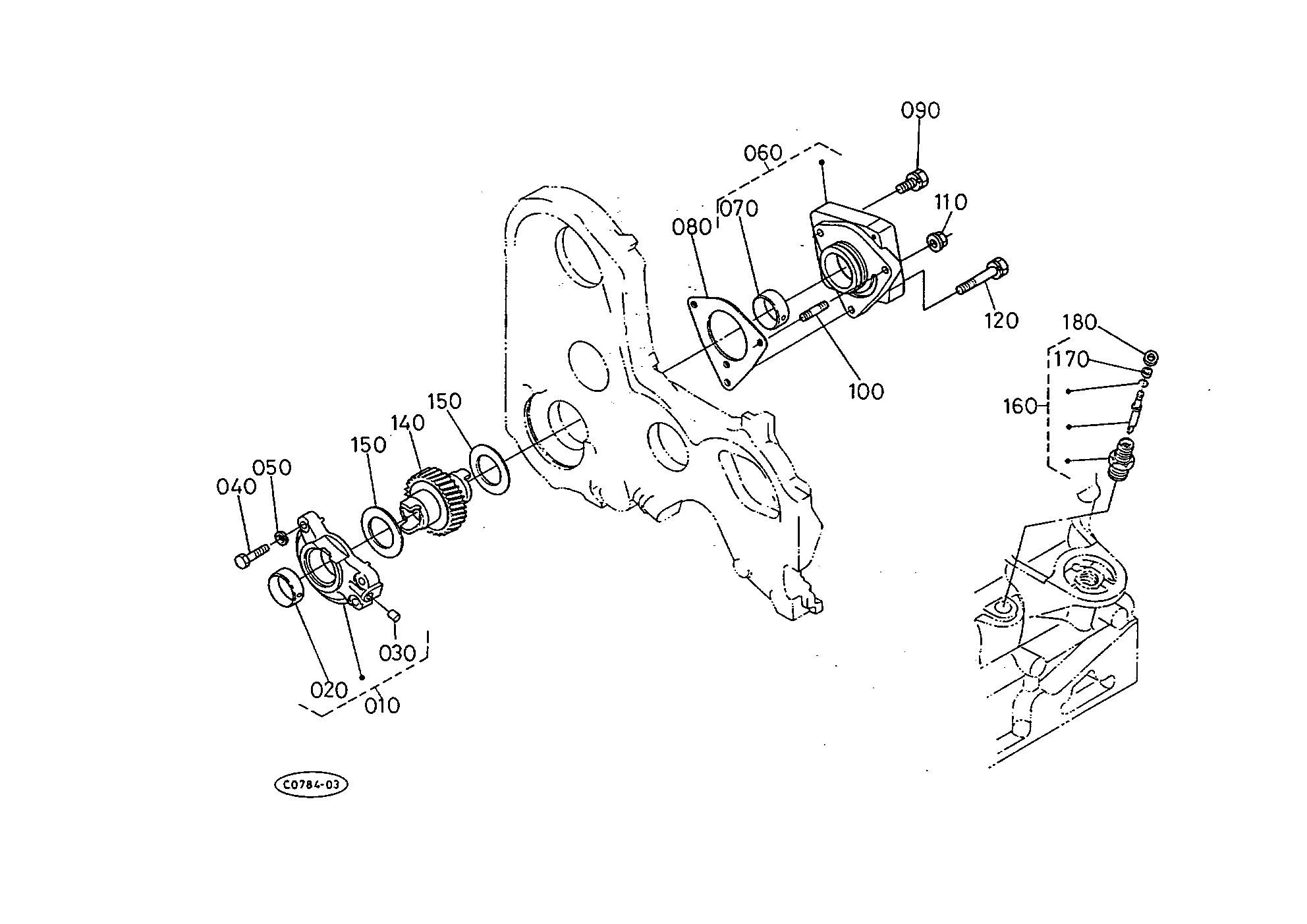

DIAG-T02600-85884 T02600 HYDRAULIC PUMP BASE
