Kubota L3600DT T02000 INJECTION PUMP [COMPONENT PARTS] Parts Diagram

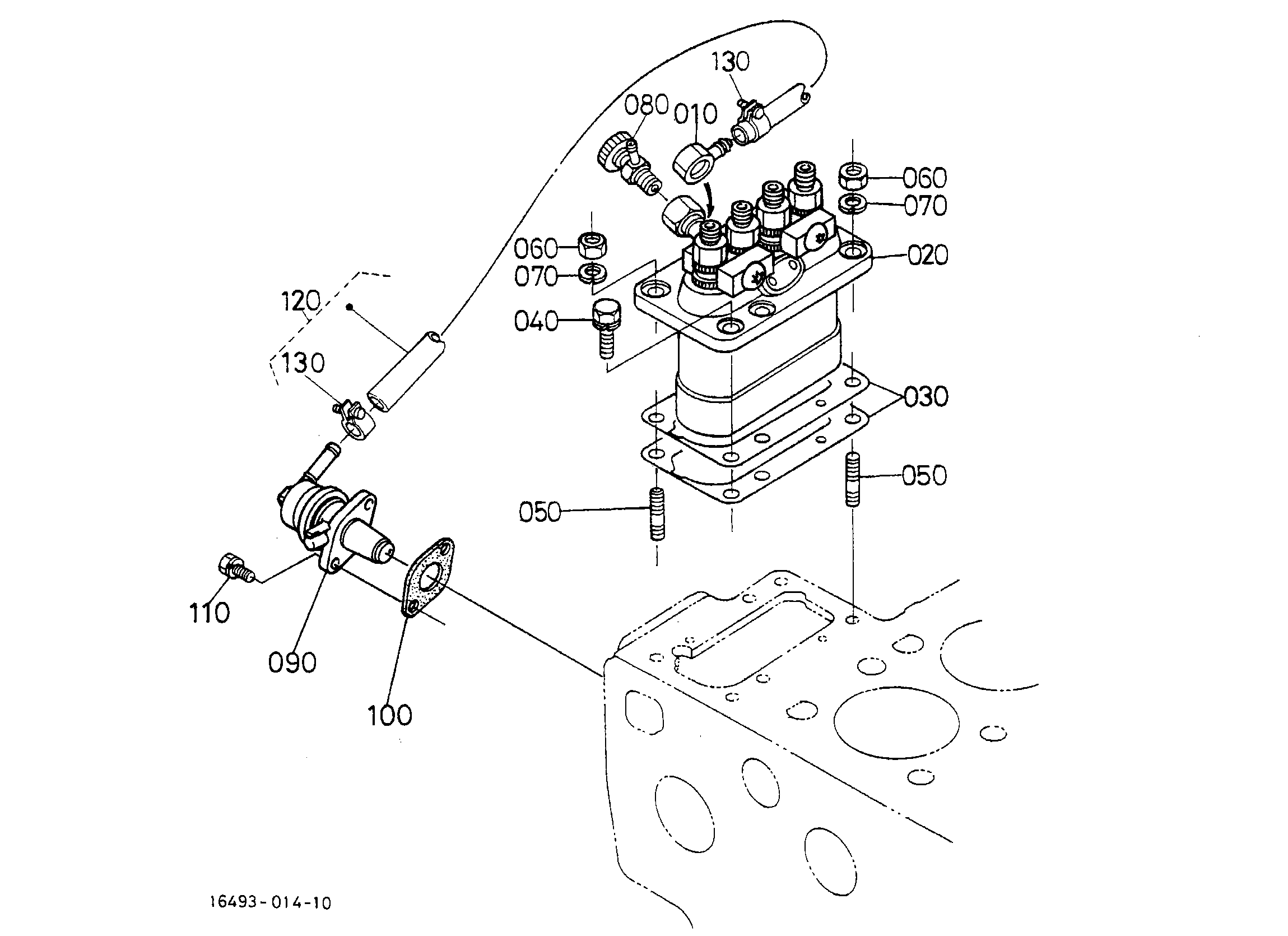

Exploded-view parts diagram "T02000 INJECTION PUMP [COMPONENT PARTS]" for the Kubota L3600DT, Kubota L3600DT-C, Kubota L3600DT-GST, Kubota L3600DT-GST-C and Kubota L4200DT-GST-C. 19 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PUMP, INJECTION 16454-51010 | 1 | $1,729.79 | |||
| 020 | ELEMENT, PUMP 16454-51050 | 1 | $162.09 | |||
| 030 | VALVE, DELIVERY 16454-51030 | 1 | $76.04 | |||
| 040 | SPRING, DELIVERY 16454-51230 | 1 | $6.43 | |||
| 050 | Injection Pump Delivery Gasket 15221-51240 70000-65197 | 1 | $1.85 | |||
| 060 | HOLDER, DELIVERY 16415-51220 | 1 | $231.61 | |||
| 070 | PLATE, LOCK 16475-51610 | 1 | $13.67 | |||
| 080 | TAPPET, ASSY 15221-51070 70000-65195 | 1 | $50.36 | |||
| 090 | PIN, TAPPET GUID 14611-51250 | 1 | $4.47 | |||
| 100 | PLATE 14611-51440 Discontinued | 1 | $3.66 | |||
| 110 | SPRING 15221-51280 | 1 | $14.59 | |||
| 120 | SEAT SPRING 15221-51270 70000-65199 | 1 | $1.99 | |||
| 130 | SEAT, SPRING 15221-51290 70000-65201 | 1 | $13.89 | |||
| 140 | SHIM 19077-51490 | 1 | $39.82 | |||
| 150 | RACK, CONTROL 15401-51060 70000-65387 | 1 | $68.87 | |||
| 180 | SLEEVE, CONTROL 15221-51380 15221-51382 | 1 | $23.90 | |||
| 190 | SCREW, FOLLOW 15471-51320 | 1 | $22.33 | |||
| 200 | WASHER, NIPPLE 15401-96652 15401-96650 | 1 | $3.18 | |||
| 210 | O-RING 14611-51200 | 1 | $8.66 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-T01900-93338 T01900 INJECTION PUMP
View Diagram -
DIAG-T02100-93338 T02100 ENGINE STOP LEVER
View Diagram -
DIAG-T01800-93338 T01800 FUEL CAMSHAFT
View Diagram
