Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY, PIPE OVER 16467-42500 16467-42502 | 1 | $59.34 | |||
| 020 | ASSY PIPE, FUEL 34070-42633 | 1 | $10.74 | |||
| 020 | TUBE, FUEL ASSY 17331-42500 32751-42630 | 1 | $14.43 | |||
| 030 | Pipe Clip 14971-42751 14971-42750 | 1 | $1.88 | |||
| 035 | TUBE, FUEL 09661-40400 | 1 | $10.44 | |||
| 040 | CLIP, PIPE 15271-42320 10244-42320 | 1 | $2.78 | |||
| 050 | Nozzle Holder Kit 16082-53900 16082-53903 | 1 | $312.71 | |||
| 060 | Copper Gasket for Nozzle Holder / Glow Plug 15841-53620 15841-53622 | 1 | $2.99 | |||
| 070 | Heat Seal for Nozzle Holder / Glow Plug Assembly 19077-53650 | 1 | $9.67 | |||
| 080 | PIPE, INJECTION 19077-53712 Discontinued | 1 | $98.64 | |||
| 080 | PIPE, INJECTION 19077-53710 19077-53714 | 1 | $75.24 | |||
| 090 | PIPE, INJECTION 19077-53722 Discontinued | 1 | $87.15 | |||
| 090 | PIPE, INJECTION 19077-53720 19077-53723 | 1 | $64.56 | |||
| 100 | PIPE, INJECTION 19077-53732 Discontinued | 1 | $31.94 | |||
| 100 | PIPE, INJECTION 19077-53730 19077-53733 | 1 | $62.66 | |||
| 110 | CLAMP, PIPE 1 15121-53850 15841-53850 | 1 | $6.34 | |||
| 120 | Pipe Clamp 2 15121-53860 15841-53860 | 1 | $3.94 | |||
| 130 | Screw with Washer 03024-00520 03024-50520 | 1 | $0.60 | |||
| 140 | Engine Glow Plug 1J860-65510 1J860-65512 | 1 | $40.22 | |||
| 150 | CORD 16415-65560 1G742-65562 | 1 | $18.39 | |||
| 160 | Flange Nut 02761-50040 | 1 | $2.50 | |||
| 170 | Plain Washer 04013-60040 04013-70040 | 1 | $0.36 | |||
| 180 | CLAMP,CORD 15272-67590 | 1 | $2.34 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-T00700-93427 T00700 VALVE AND ROCKER ARM
View Diagram -

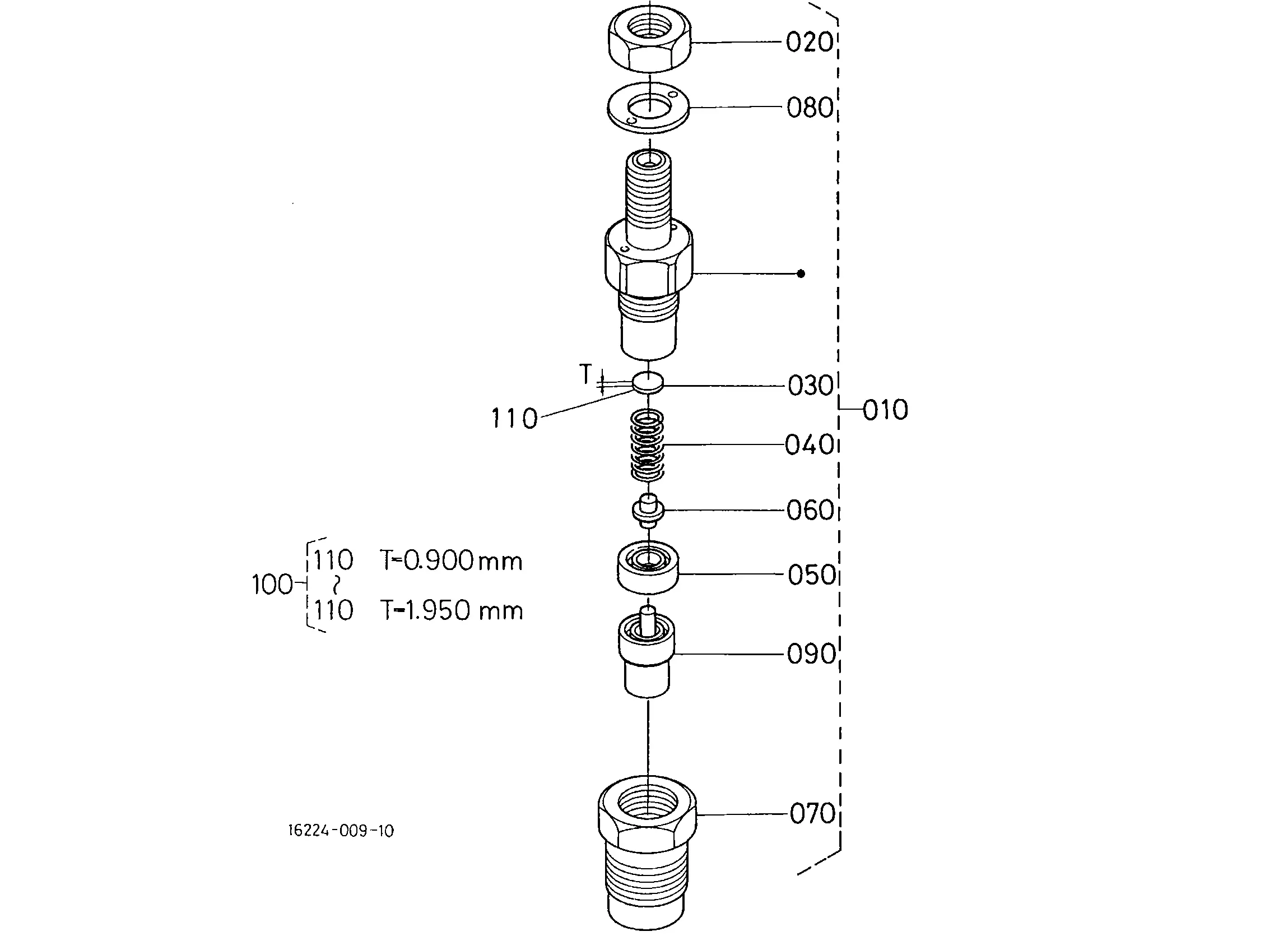

DIAG-T00900-93427 T00900 NOZZLE HOLDER [COMPONENT PARTS]
