Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | VALVE, INLET 16415-13110 16484-13110 | 1 | $37.77 | |||
| 020 | VALVE, EXHAUST 16415-13120 16484-13120 | 1 | $41.50 | |||
| 030 | SPRING, VALVE 15221-13242 15221-13240 | 1 | $6.27 | |||
| 040 | RETAINER, VALVE 15221-13332 15221-13330 | 1 | $9.59 | |||
| 050 | COLLET, VALVE SP 15221-13360 Discontinued | 1 | $5.40 | |||
| 060 | Valve Stem Seal 15221-13150 15221-13153 | 1 | $8.21 | |||
| 070 | CAP, VALVE 15221-13282 15221-13280 | 1 | $3.61 | |||
| 080 | SHAFT, ROCKER AR 15401-14052 | 1 | $166.08 | |||
| 090 | SCREW, SET 03410-00808 03410-50808 | 1 | $2.54 | |||
| 100 | BRACKET, ROCKER 15221-14350 15221-14353 | 1 | $33.89 | |||
| 110 | Stud 15521-91500 | 1 | $5.79 | |||
| 120 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 130 | Spring Washer 04512-50080 | 1 | $0.14 | |||
| 140 | Washer 04011-50080 04012-50080 | 1 | $4.16 | |||
| 150 | PIN, SPRING 05411-00528 | 1 | $1.31 | |||
| 160 | WASHER, ROCKER A 15221-14430 | 1 | $1.01 | |||
| 170 | SPRING, ROCKER A 15221-14312 15221-14310 | 1 | $2.59 | |||
| 180 | External Circlip (Snap Ring) 04612-50140 04612-00140 | 1 | $0.31 | |||
| 190 | ARM, ROCKER ASSY 15601-14030 15621-14030 | 1 | $75.58 | |||
| 200 | SCREW 15521-14230 1G896-14230 | 1 | $1.88 | |||
| 210 | NUT 15021-14240 | 1 | $0.00 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

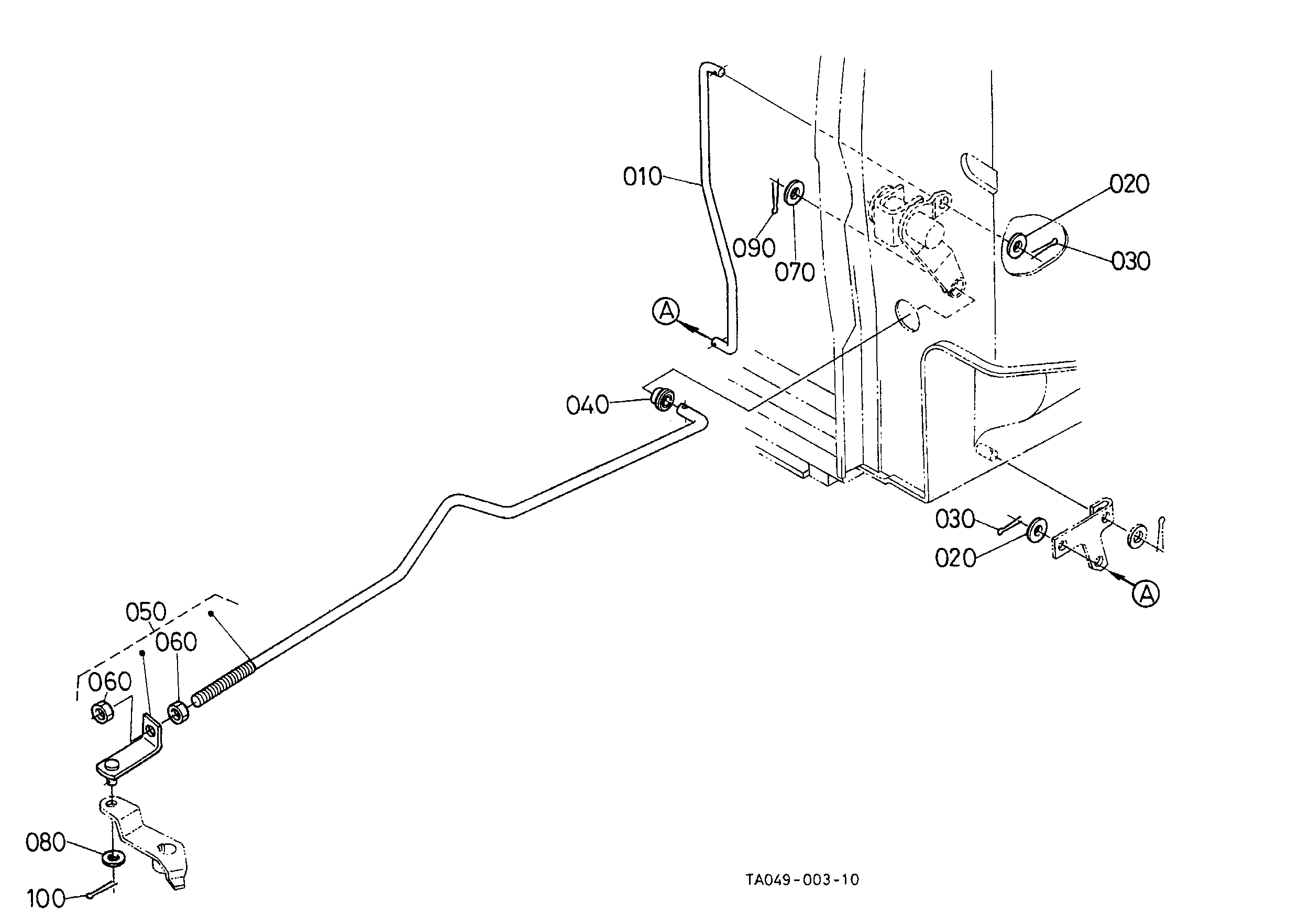

DIAG-T02900-93341 T02900 ACCELERATOR ROD
View Diagram -
DIAG-T07502-93341 T07502 MAIN GEAR SHIFT LEVER [GST TYPE]
View Diagram -

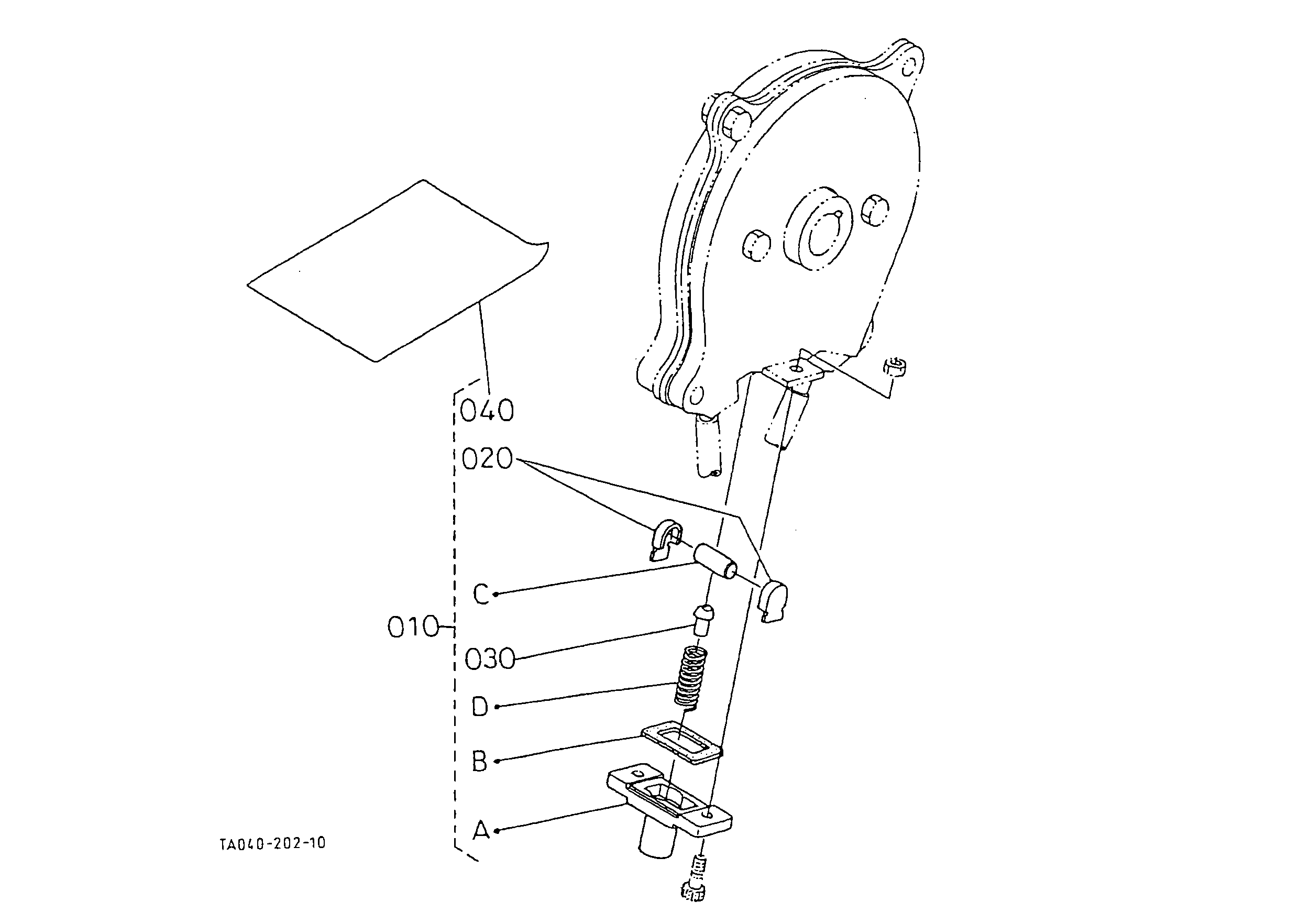

DIAG-T07503-93341 T07503 GST SHIFT COVER [OPTION] [GST TYPE]
View Diagram
